Description

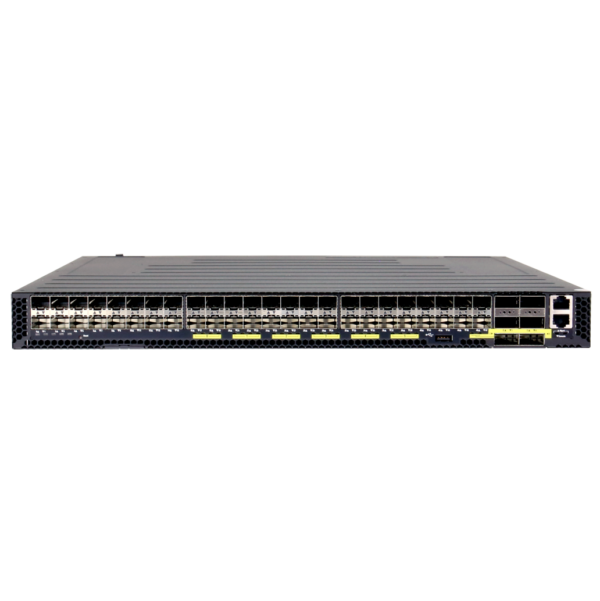

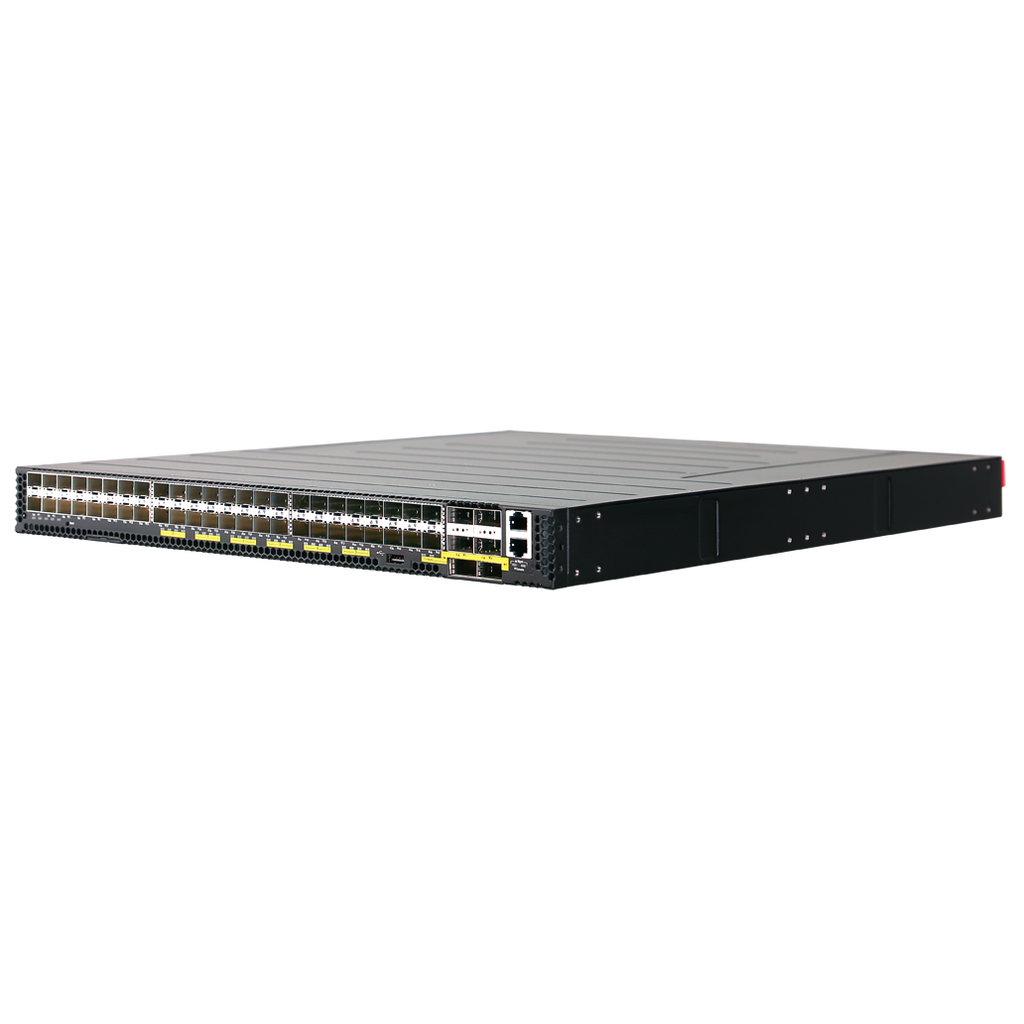

The Edgecore AGR130 AS5916-54XKS-OT Aggregation Router is a high-performance, open-network switch and router built on Broadcom StrataDNX™ Qumran MX silicon. Designed to deliver 800 Gbps of switching capacity and 700 Mpps throughput, it’s ideal for data center top-of-rack, carrier access, or aggregation deployments.

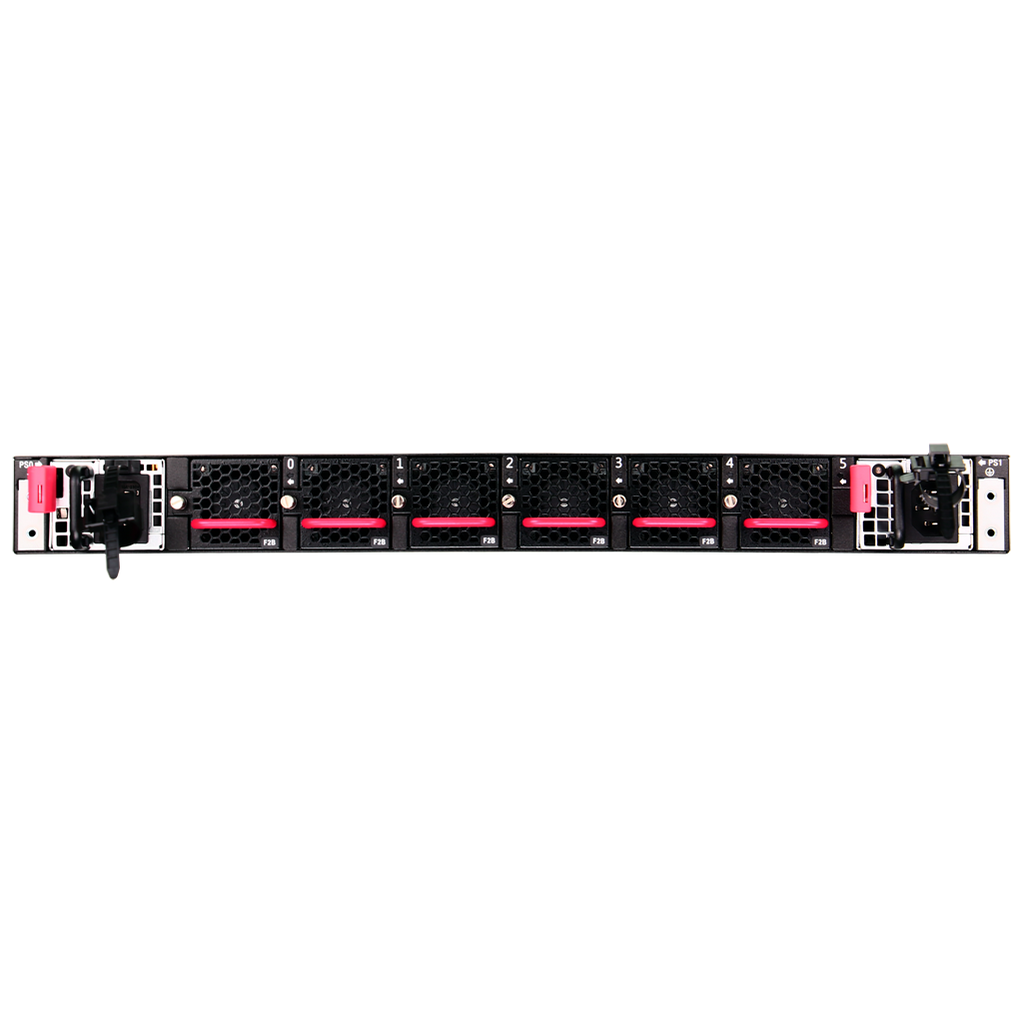

This router supports 48 SFP+ ports for 1/10 GbE connectivity and 6 QSFP28 uplink ports for 40/100 GbE high-speed aggregation. It features redundant hot-swappable AC power supplies, 5+1 redundant fans, and port-to-power airflow, ensuring maximum uptime and reliability.
Preloaded with ONIE (Open Network Install Environment), the AGR130 allows seamless installation of compatible open-source or commercial network operating systems, including Open Network Linux (ONL).
Engineered with an Intel® Xeon® D-1548 8-core processor, 32 GB DDR4 memory, and 128 GB M.2 SSD, the Edgecore AGR130 offers high resiliency and scalability for service providers and enterprise networks demanding carrier-grade performance.
| Category | Specification |
|---|---|
| Model | Edgecore AGR130 AS5916-54XKS-OT |
| SKU | 5916-54XKS-OT-AC-F-US |
| Switch Silicon | Broadcom StrataDNX™ Qumran MX BCM88375 + BCM52311 TCAM |
| CPU | Intel® Xeon® D-1548, 8 cores, 2.0 GHz |
| Memory | 16 GB x 2 DDR4 SO-DIMM |
| Storage | 128 GB M.2 SSD (MLC) |
| Switching Capacity | 800 Gbps |
| Forwarding Rate | 700 Mpps |
| Buffer | 16 MB on-chip + 8 GB DRAM buffering |
| Ports | 48 x SFP+ (1/10 GbE), 6 x QSFP28 (40/100 GbE) |
| Management Interfaces | 1 x RJ-45 serial console, 1 x RJ-45 management (100/1000BASE-T), 1 x USB Type-A storage port, 1 x BMC |
| Supported Transceivers | 10GBASE-CR/SR/LR, 1000BASE-SX/LX/T, 40GBASE-CR4/SR4/LR4, 100GBASE-SR4/LR4 |
| Airflow Direction | Port-to-Power |
| Power Supply | Dual redundant, hot-swappable AC PSUs |
| Input Voltage | 100–240 VAC |
| Fan Modules | 5+1 redundant, hot-swappable |
| Dimensions (W x D x H) | 438.4 x 501.9 x 44 mm (17.26 x 19.76 x 1.73 in) |
| Weight | 9.7 kg (21.38 lb) with dual PSU modules |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5%–95% non-condensing |
| Compliance | NEBS Level 3, CE, FCC Part 15 Class A, UL/CUL, VCCI Class A, EN55032 Class A, RoHS 2.0, WEEE |
| Software Environment | Preloaded with ONIE; supports Open Network Linux (ONL) |
| Form Factor | 1U rack-mountable |
| Region | North America |
