Description

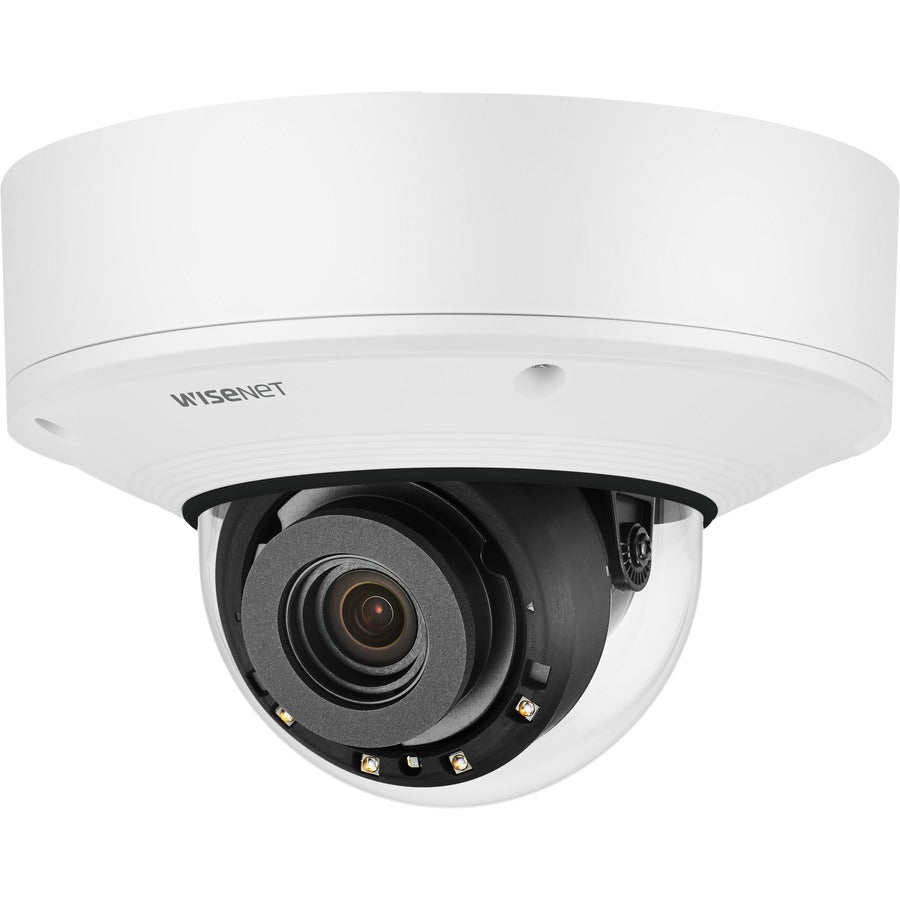

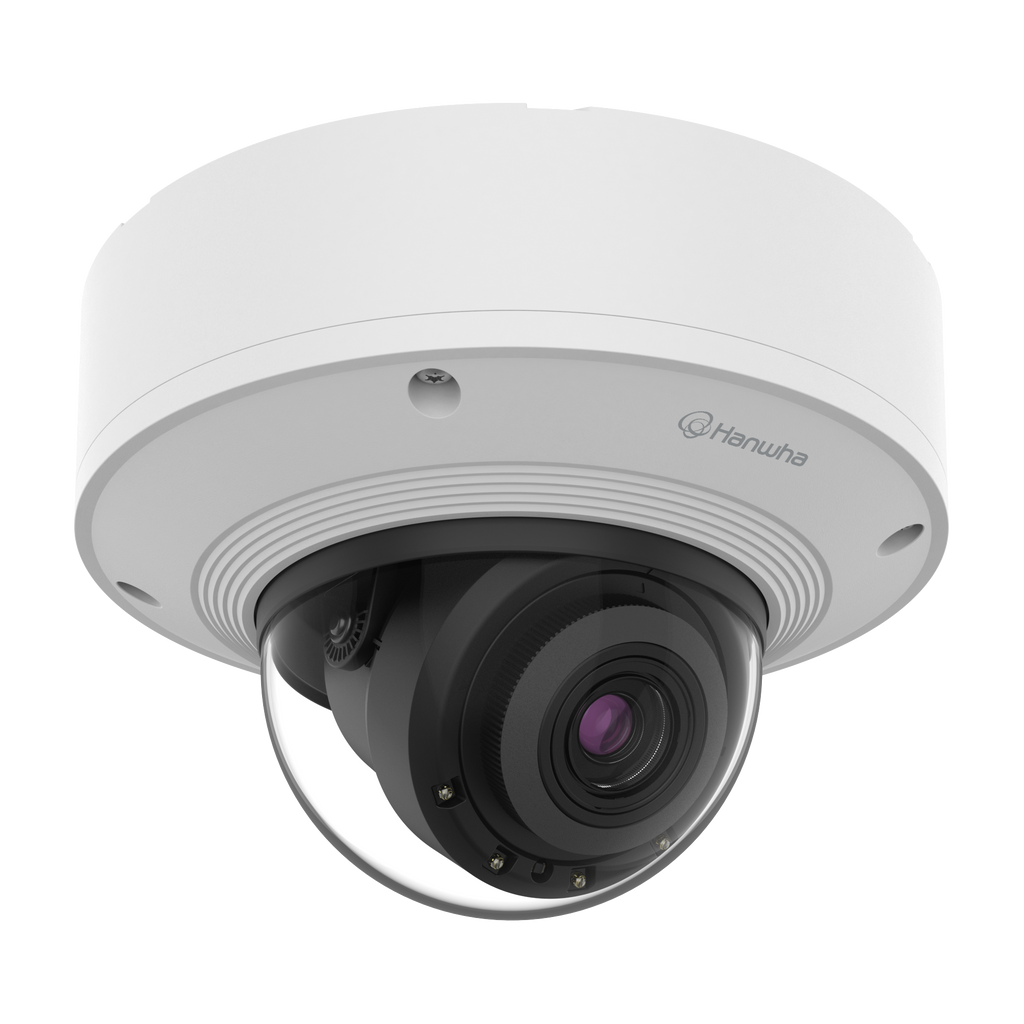

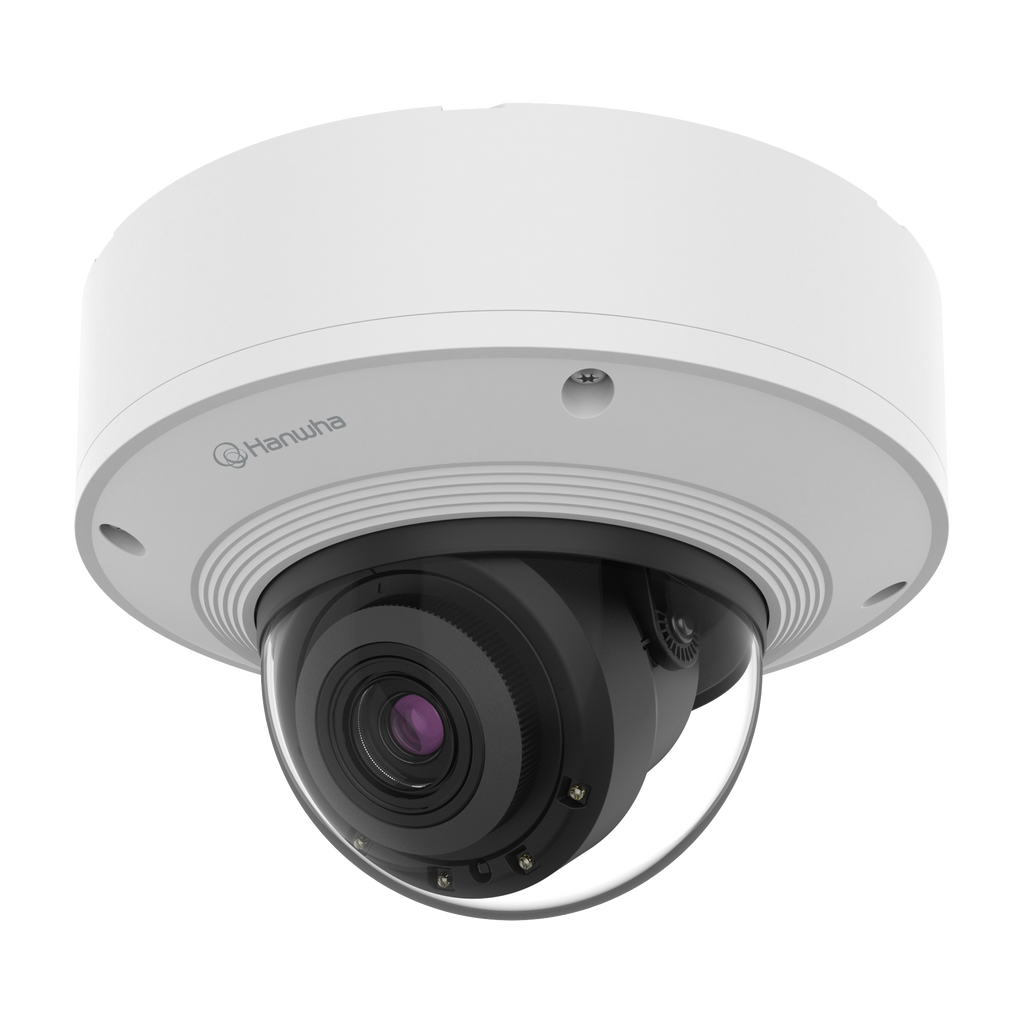

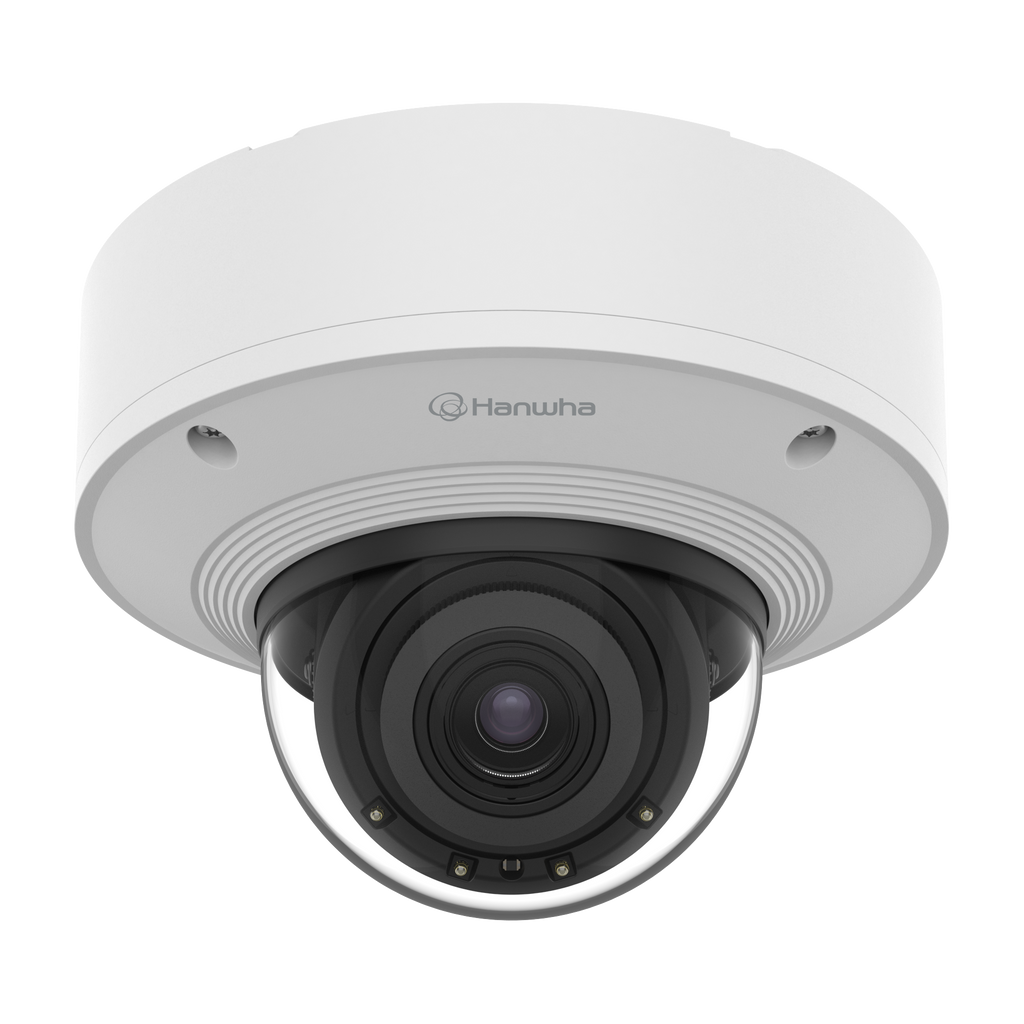

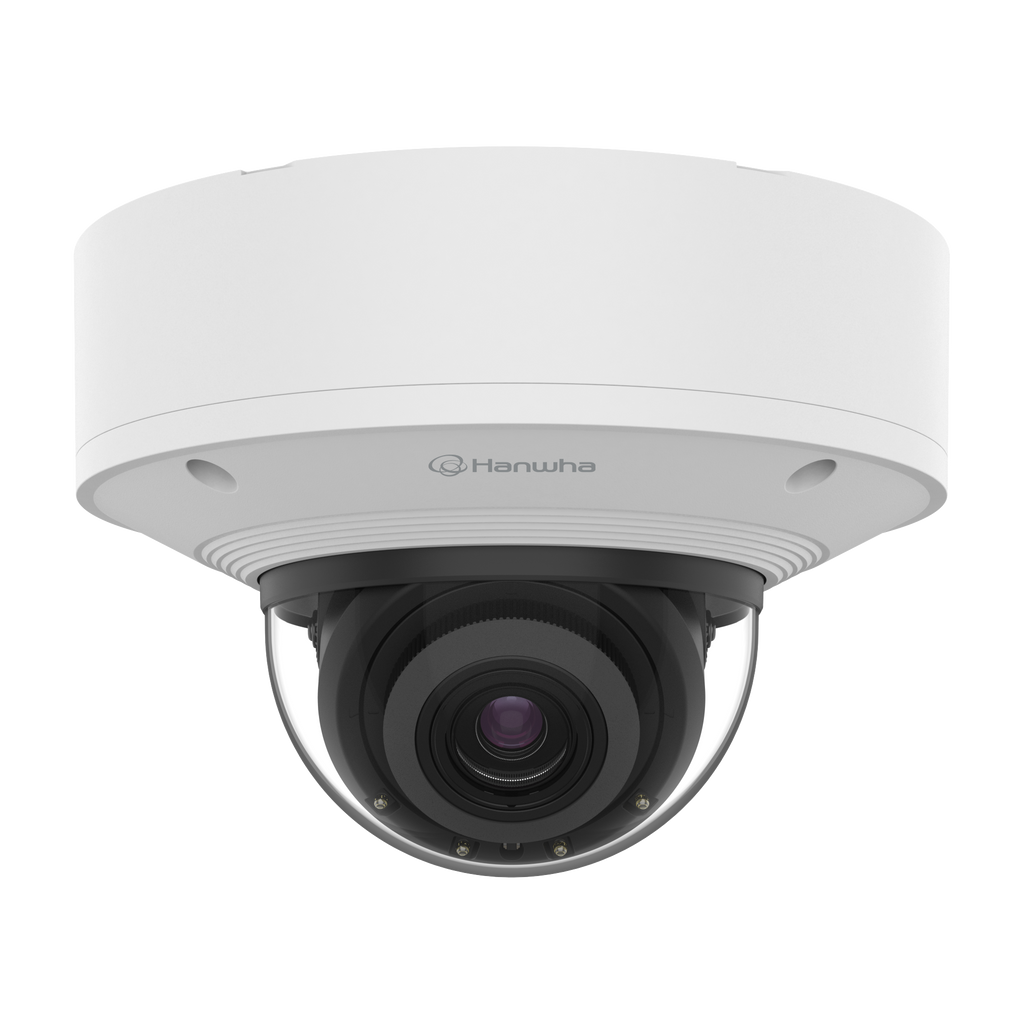

The Hanwha Vision PNV-A9081RLP is a rugged 4K vandal-resistant dome camera engineered for high-accuracy license plate recognition (LPR/ANPR) and vehicle Make/Model/Color Recognition (MMCR). Designed for both North America and EU regions, it delivers dependable plate capture across low to moderate speeds and multi-lane coverage.
Powered by a next-generation CNN deep learning engine, Wisenet Road AI enhances detection accuracy in complex lighting, weather, and traffic environments. The built-in IR illuminator reaches up to 30 meters, ensuring clear nighttime capture, while the advanced feature stack includes 120dB WDR, digital image stabilization with gyro sensor, multiple analytics events, and secure encrypted storage.
With flexible integration options—including JSON over HTTP, Wisenet WAVE, SSM, Genetec, and Milestone—the PNV-A9081RLP supports a wide range of traffic monitoring, parking management, site access control, and Smart City applications.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS, up to 4K (3840×2160) |
| Framerate | H.265/H.264: 30fps (60Hz) / 25fps (50Hz), MJPEG: 30fps |
| Min. Illumination | Color: 0.05 Lux, B/W: 0.005 Lux, IR On: 0 Lux |
| Lens | 4.5–10mm motorized, 2.2× optical zoom, F1.6–F2.65, P-iris (IR corrected) |
| Field of View | H: 101.4°–45.5° / V: 53.6°–25.5° / D: 120.7°–52.3° |
| IR Illumination | Up to 30m (98.4 ft), 850nm |
| Day/Night | Auto (ICR) |
| WDR | 120dB |
| Digital Noise Reduction | SSNR V |
| Image Stabilization | Yes (gyro sensor) |
| Video Compression | H.265/H.264 (Main/High), MJPEG, WiseStream II |
| Audio | Audio In (mic/line selectable), Audio Out (line out) |
| Analytics | Defocus, motion, tampering, audio detection, shock detection |
| LPR/ANPR/MMCR | License plate recognition, vehicle make/model/color recognition; Smart Search by LP/NP, brand, model, color, date |
| Supported Regions | 70+ countries including USA, Canada, UK, EU, GCC, APAC |
| Lane Coverage | NA: up to 2 lanes (8.1m) • EU: up to 3 lanes (16.2m) |
| Speed Range | NA: up to 90 km/h • EU: up to 110 km/h |
| Storage | 1× microSD/SDHC/SDXC (32GB pre-installed), encrypted storage |
| Network | RJ-45 (10/100/1000BASE-T), IPv4/IPv6, HTTPS, SRTP, ONVIF S/G/T |
| Power | PoE+ (IEEE 802.3at), 12VDC • Max 20W (PoE) |
| Operating Temp. | –40°C to +55°C (–40°F to +131°F) |
| Construction | Aluminum housing, Vandal-resistant |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.9 kg (4.19 lb) |
| Integrations | Wisenet WAVE, SSM, Genetec Security Center, Milestone XProtect, AutoVu, JSON over HTTP |
