Description

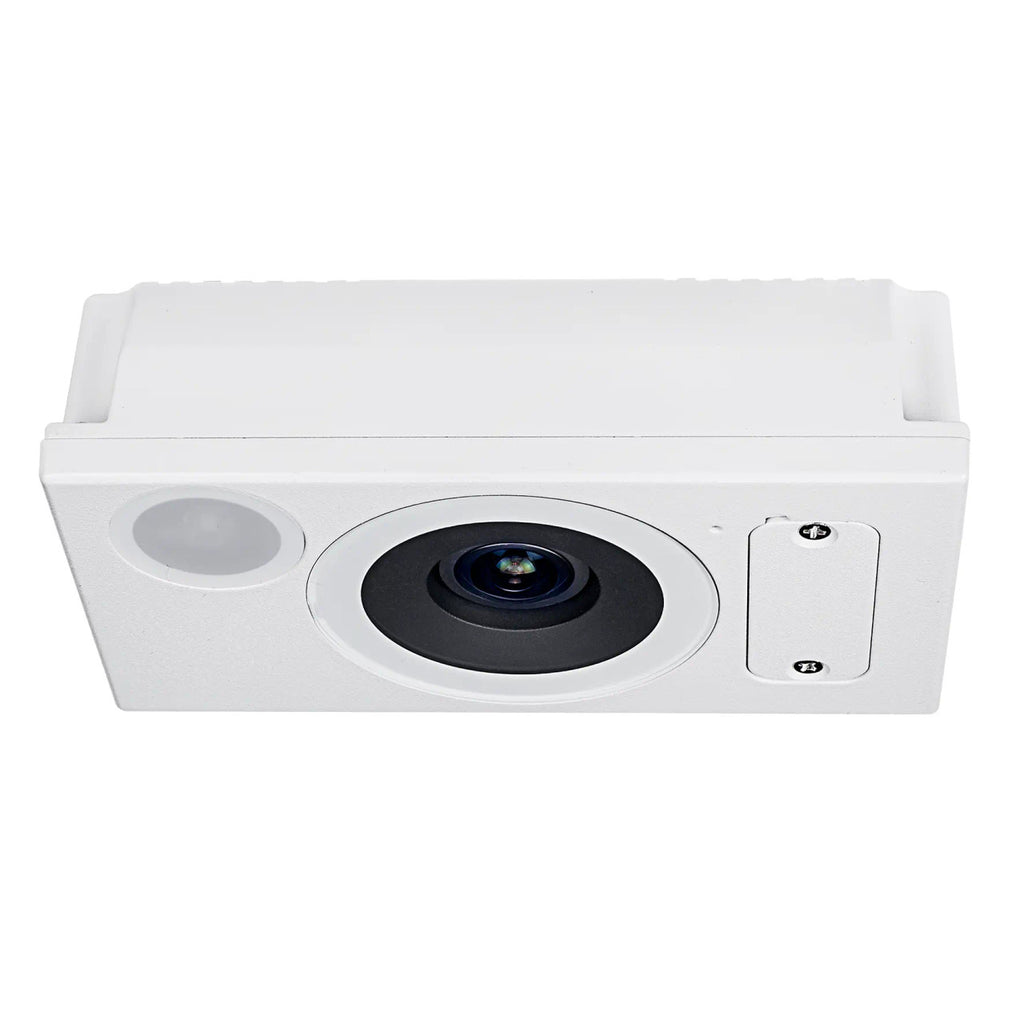

The Vivotek SC9133-RTL is a high-performance AI-powered people counting camera designed for a wide range of indoor and outdoor applications, delivering exceptional accuracy and reliability across various installation heights and environments. Equipped with a 1/2.8" progressive CMOS sensor and a fixed 1.47mm focal lens, it provides a 140° ultra-wide field of view, ensuring comprehensive area coverage for precise analytics.
With its advanced multimedia SoC, built-in WDR Enhanced technology, and support for H.265, H.264, and MJPEG compression, the SC9133-RTL delivers superior image quality and efficient bandwidth usage. It supports up to 3 simultaneous video streams and outputs data in JSON, XML, or CSV formats, making it easy to integrate into existing analytics or business intelligence systems.
The camera’s robust IP66 and IK10-rated metal housing ensures reliable operation in harsh weather conditions, while PoE support and flexible mounting options (1.9 m to 10 m) simplify installation. Ideal for retail analytics, transportation hubs, smart buildings, and public spaces, the SC9133-RTL offers a reliable and scalable solution for organizations seeking actionable insights into people flow and occupancy management.
| Specification | Details |
|---|---|
| Model | SC9133-RTL |
| Processor | Multimedia SoC (System-on-Chip) |
| Memory | 8 GB Flash, 2 GB RAM |
| Image Sensor | 1/2.8” Progressive CMOS |
| Lens Type | Fixed focal, f = 1.47 mm, F2.7 |
| Field of View | 140° (H) / 140° (V) / 140° (D) |
| Shutter Time | 1/60 s to 1/32,000 s |
| WDR Technology | WDR Enhanced |
| Local Storage | MicroSD/SDHC/SDXC card slot |
| Installation Aids | Micro USB (Wi-Fi via converter), Pixel Calculator |
| Video Compression | H.265, H.264, MJPEG |
| Max Resolution & Frame Rate | 1792 × 1792 @ 30 fps |
| Max Streams | 3 simultaneous streams |
| Report Format | JSON, XML, CSV |
| Audio | One-way, built-in microphone, G.711/G.726 |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP/RTP, SNMP, QoS, 802.1X, SSL/TLS, etc. |
| Ethernet Interface | 10Base-T/100Base-TX |
| Users | Live viewing for up to 10 clients |
| Connectors | RJ45 (via M12 to RJ45), M12 A-code 12-pin for power/RS485/DI/DO |
| Power Input | PoE IEEE 802.3af Class 3 or DC 9–48 V |
| Power Consumption | PoE: Max. 12.5 W / DC: Max. 13.3 W |
| Dimensions | 140 × 76 × 42 mm |
| Weight | 492 g |
| Casing | Metal, IP66, IK10 |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, BIS, BSMI, UK CE |
| Operating Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Storage Temperature | -40 °C ~ 75 °C (-40 °F ~ 167 °F) |
| LEDs | White LED and IR LED |
| Installation Height | 1.9 m ~ 10 m |
| Included Accessories | Quick installation guide, flat mounting bracket, screw pack, M12 to RJ45 cable |
| Optional Accessories | AM-10G (recessed kit), AM-11H (pendant mount kit) |
