Description

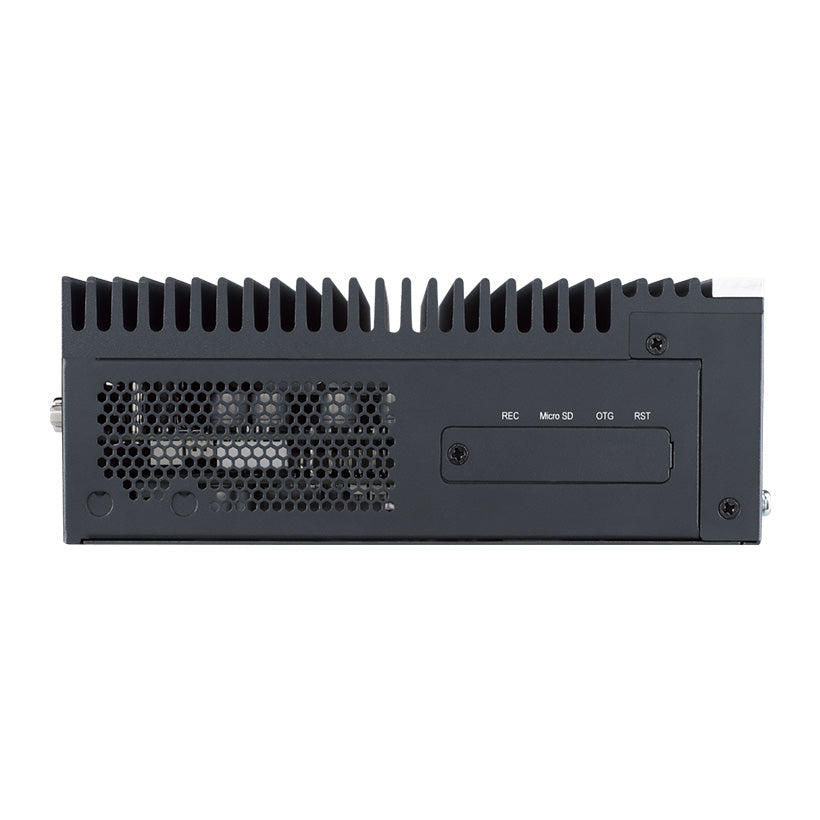

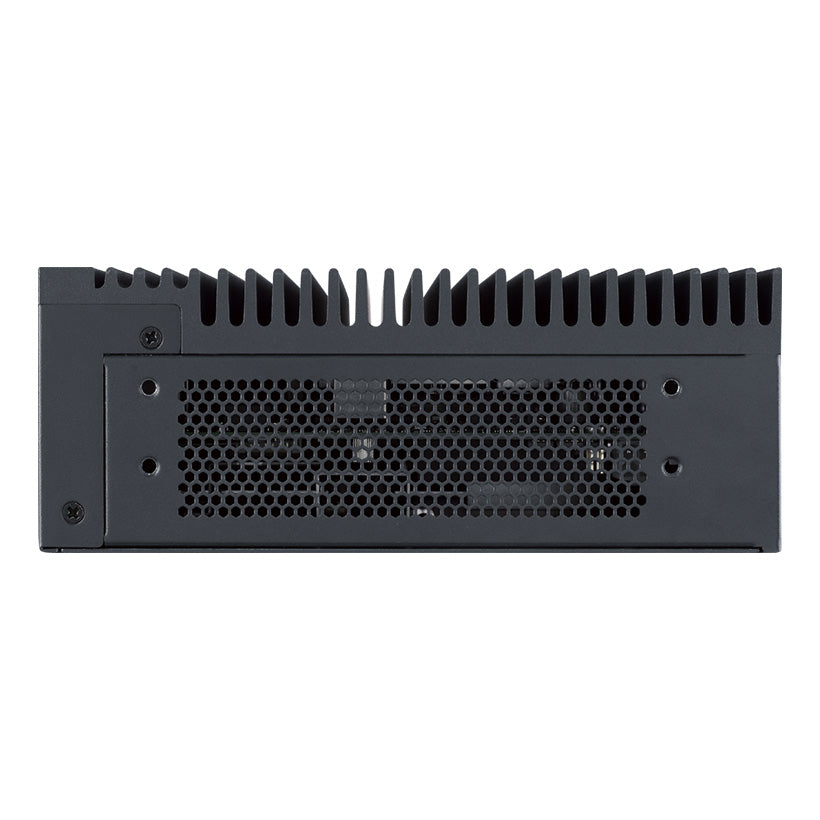

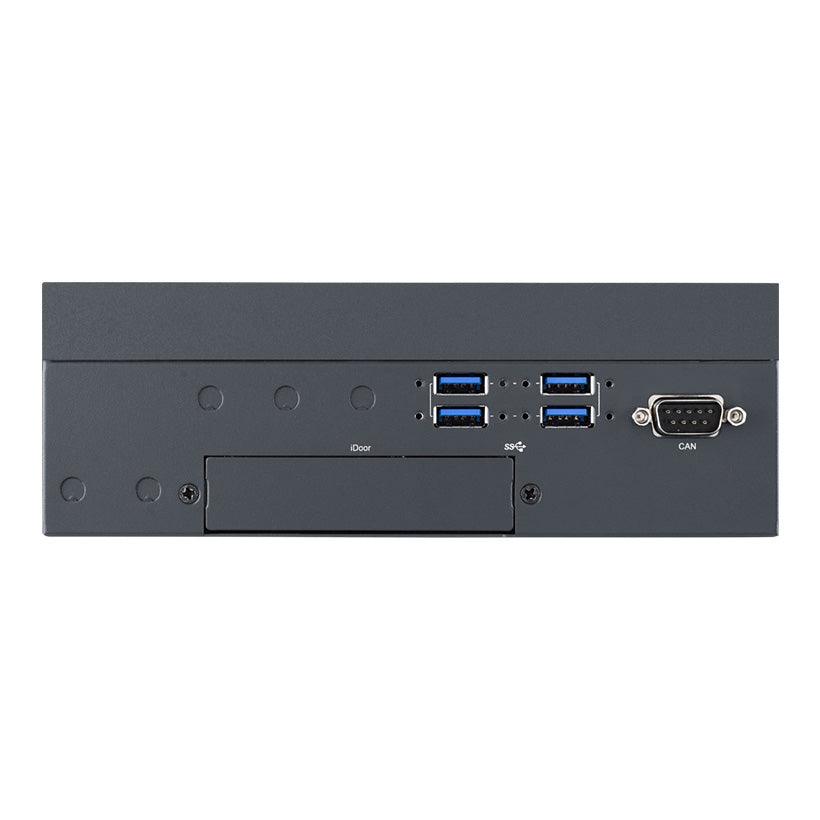

The Advantech MIC-713-ON3A1 is a compact, fanless edge AI system engineered for intelligent vision, robotics, and industrial AI workloads. Powered by the NVIDIA Jetson Orin Nano 8GB module, it delivers high-performance AI inference in a rugged, space-saving enclosure designed for continuous operation in industrial environments.
This system supports multiple high-speed I/O options including dual Gigabit Ethernet, six USB 3.2 Gen 2 ports, HDMI display output, and flexible expansion through mPCIe and M.2 slots. With wide-range DC input, industrial certifications, and support for remote device management, the MIC-713-ON3A1 is ideal for smart manufacturing, edge analytics, and autonomous system deployments.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Product Series | MIC-713 |
| System Type | Fanless Edge AI System |
| Processor Platform | NVIDIA Jetson Orin Nano |
| CPU | 6-core NVIDIA Arm Cortex-A78AE v8.2 (64-bit) |
| GPU | NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor Cores |
| AI Performance | Up to 67 TOPS |
| Installed Memory | 8GB LPDDR5 |
| Storage | 128GB NVMe (pre-installed) |
| Ethernet | 2 × Gigabit Ethernet |
| USB Ports | 6 × USB 3.2 Gen 2 |
| Display Output | HDMI (up to 3840 × 2160 @ 60Hz) |
| Digital I/O | 4-channel DI, 4-channel DO |
| Serial Interface | Optional RS-232/422/485 via onboard pin header |
| CAN Bus | 1 × CAN |
| Expansion Slots | 1 × mPCIe, 1 × M.2 3052, 1 × M.2 2280 |
| SIM Support | 2 × Nano SIM slots |
| OTG | 1 × Micro USB |
| TPM Support | Optional TPM 2.0 |
| Power Input | 9–36 VDC |
| Cooling | Fanless |
| Operating Temperature | −10 °C to 60 °C (with airflow) |
| Operating Humidity | Up to 95% @ 40 °C (non-condensing) |
| Mounting | Desktop |
| Dimensions (W × D × H) | 194.8 × 174.3 × 65.85 mm |
| Weight | 2.05 kg |
| Operating System Support | NVIDIA JetPack 5.1.2 |
| Certifications | CE, FCC, UKCA, CB, UL, BSMI, CCC |
