Description

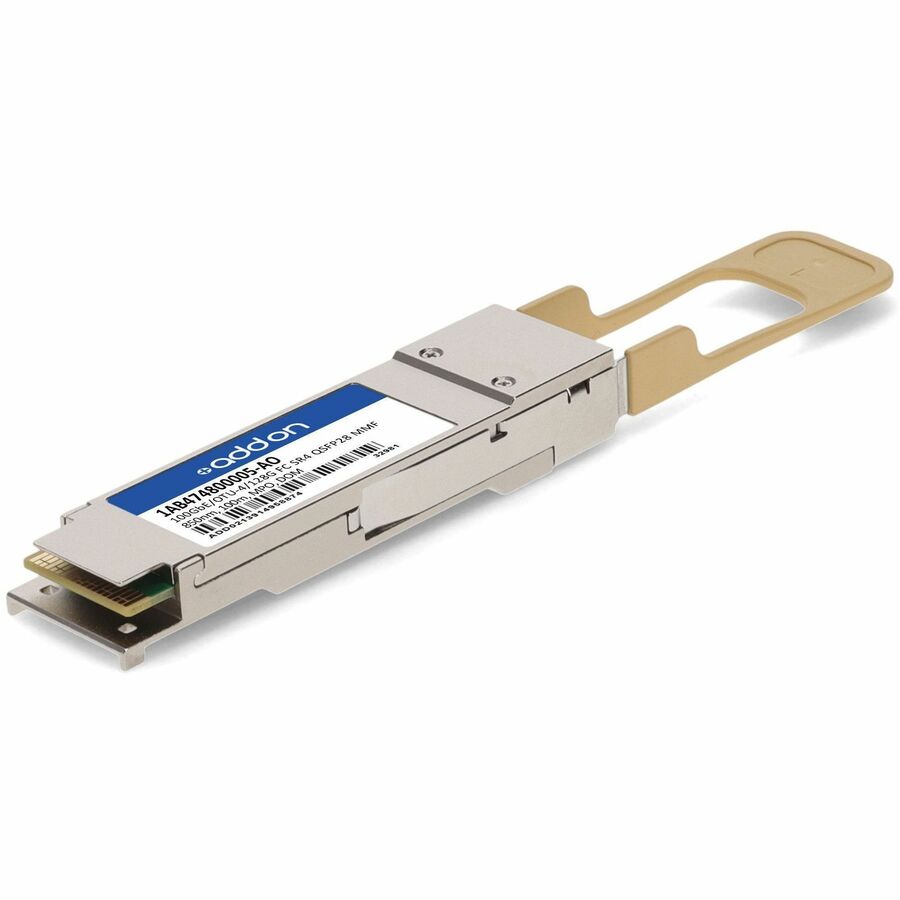

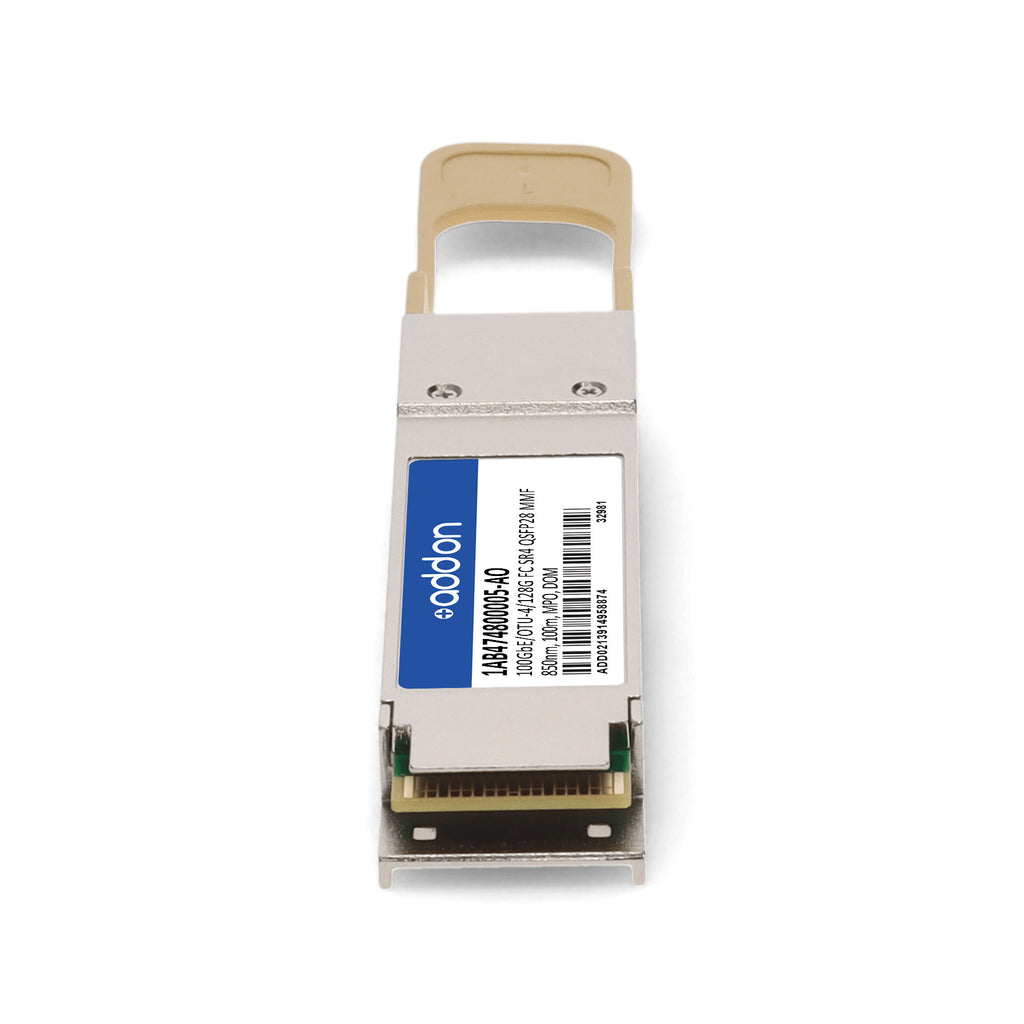

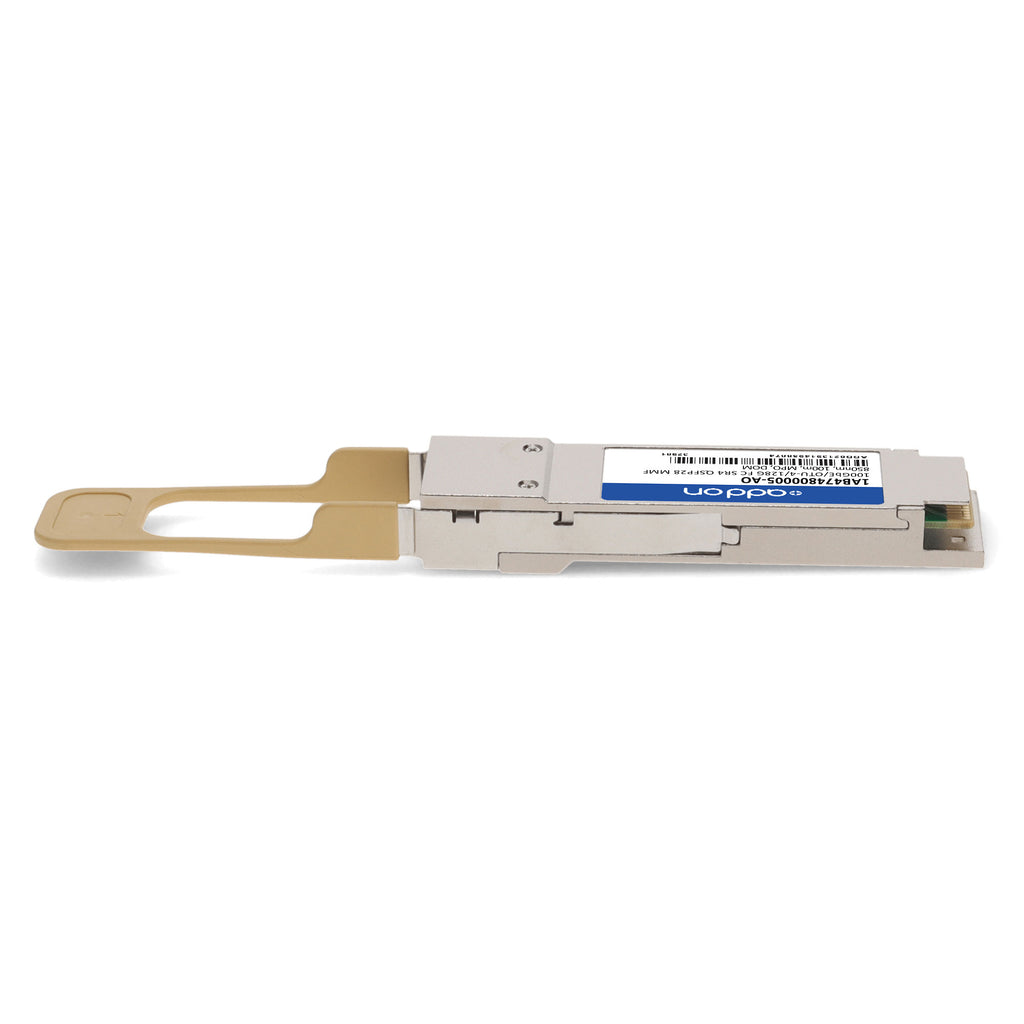

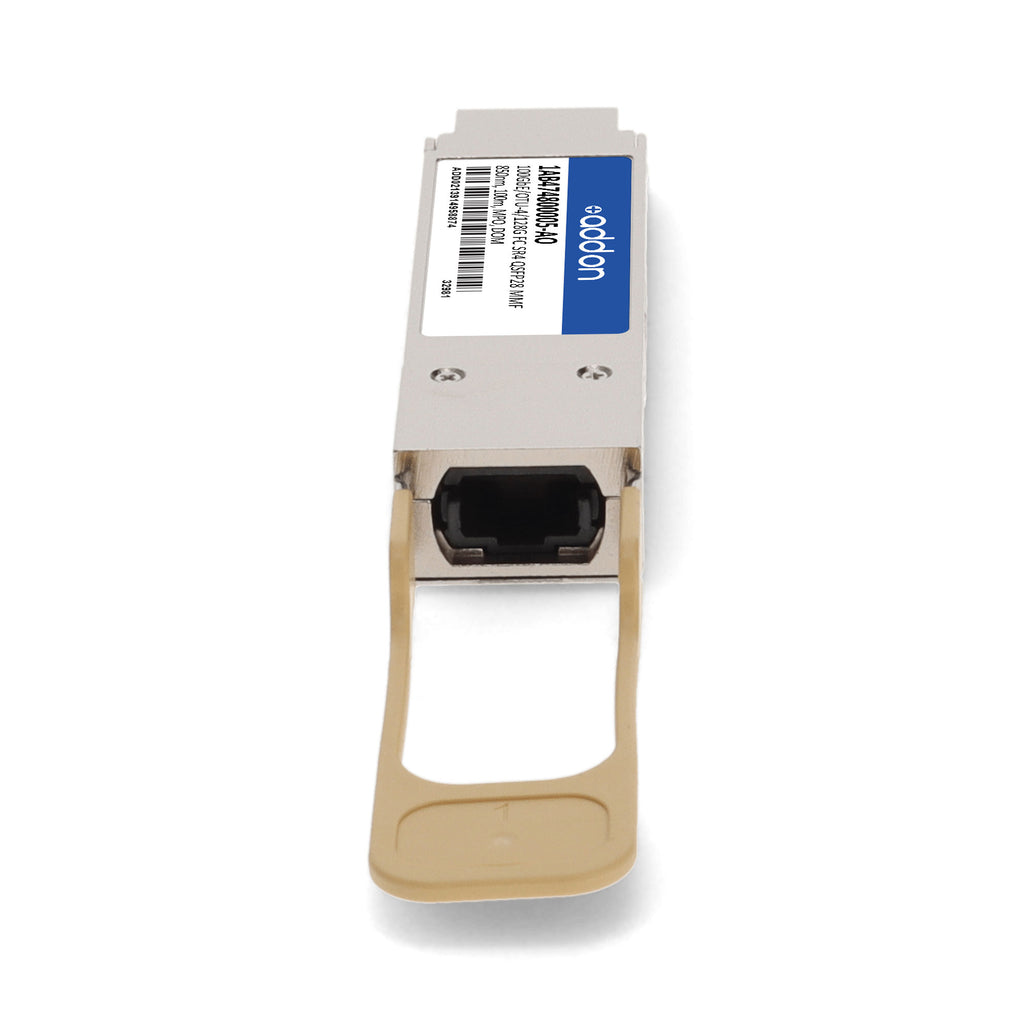

This Alcatel-Lucent Nokia® 1AB474800005 compatible QSFP28 transceiver delivers reliable 100GBase/OTU4-SR4 performance over multi-mode fiber (MMF) with a reach of up to 100 meters using OM4 cabling and an 850nm wavelength via an MPO connector. Designed for high-speed access and enterprise networks, it supports aggregate bit rates of 103.1Gbps and 112.2Gbps with a single 3.3V power supply and power dissipation under 3.5W. The module is hot-swappable, RoHS6 compliant, and fully supports digital optical monitoring (DOM) for real-time performance metrics. Built to meet or exceed OEM specifications, it ensures seamless integration and 100% compatibility with Alcatel-Lucent Nokia® systems. Each unit is programmed, uniquely serialized, and rigorously tested for data traffic and application performance. TAA compliance makes it suitable for U.S. government procurement, and it is backed by AddOn’s industry-leading reliability and limited lifetime warranty.
| Specification | Details |
|---|---|
| Compatible OEM | Alcatel-Lucent Nokia® |
| Form Factor | QSFP28 |
| Data Rate | 103.1Gbps / 112.2Gbps Aggregate |
| Application | 100GbE, OTU-4, 128G FC |
| Wavelength | 850nm |
| Reach | Up to 70m (OM3), 100m (OM4) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector | MPO |
| Digital Diagnostics (DOM) | Supported |
| Power Supply Voltage | 3.3V (3.135V – 3.465V) |
| Power Consumption | < 3.5W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 85% |
| Laser Safety | Class 1 FDA & IEC60825-1 Compliant |
| Interface | I²C with Integrated Digital Diagnostic Monitoring |
| Hot-Pluggable | Yes |
| Compliance | TAA, RoHS6, IEEE 802.3bm 100GBase-SR4 |
| Warranty | Limited Lifetime Warranty |
