Description

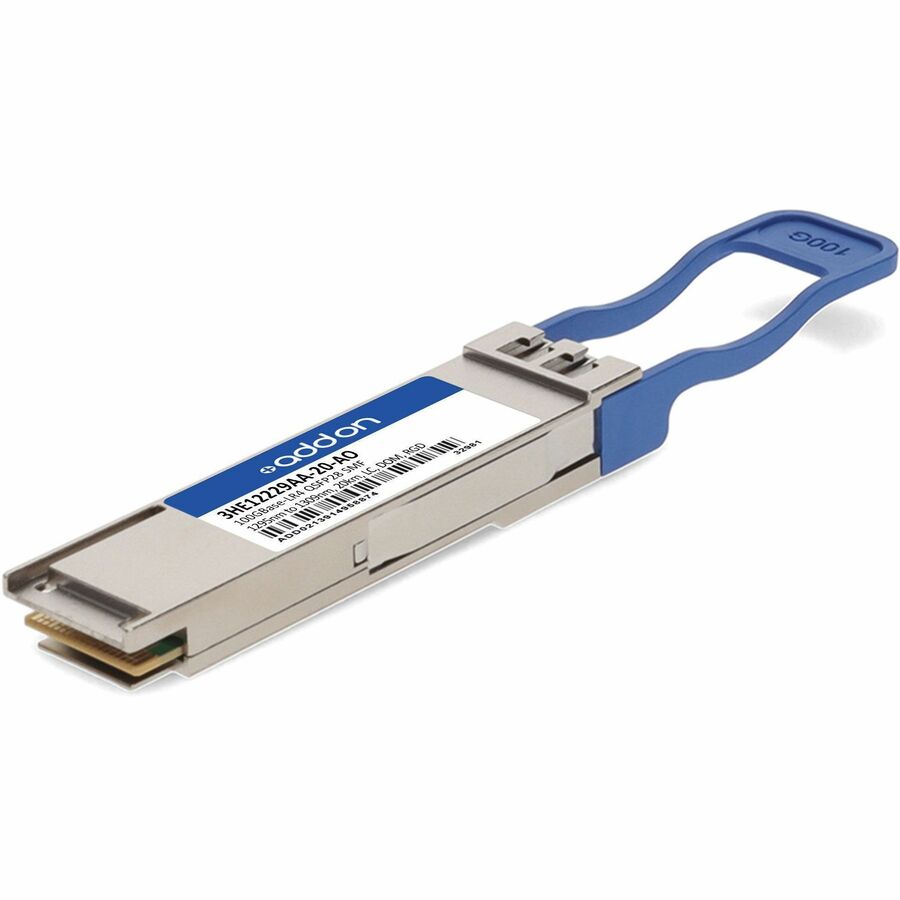

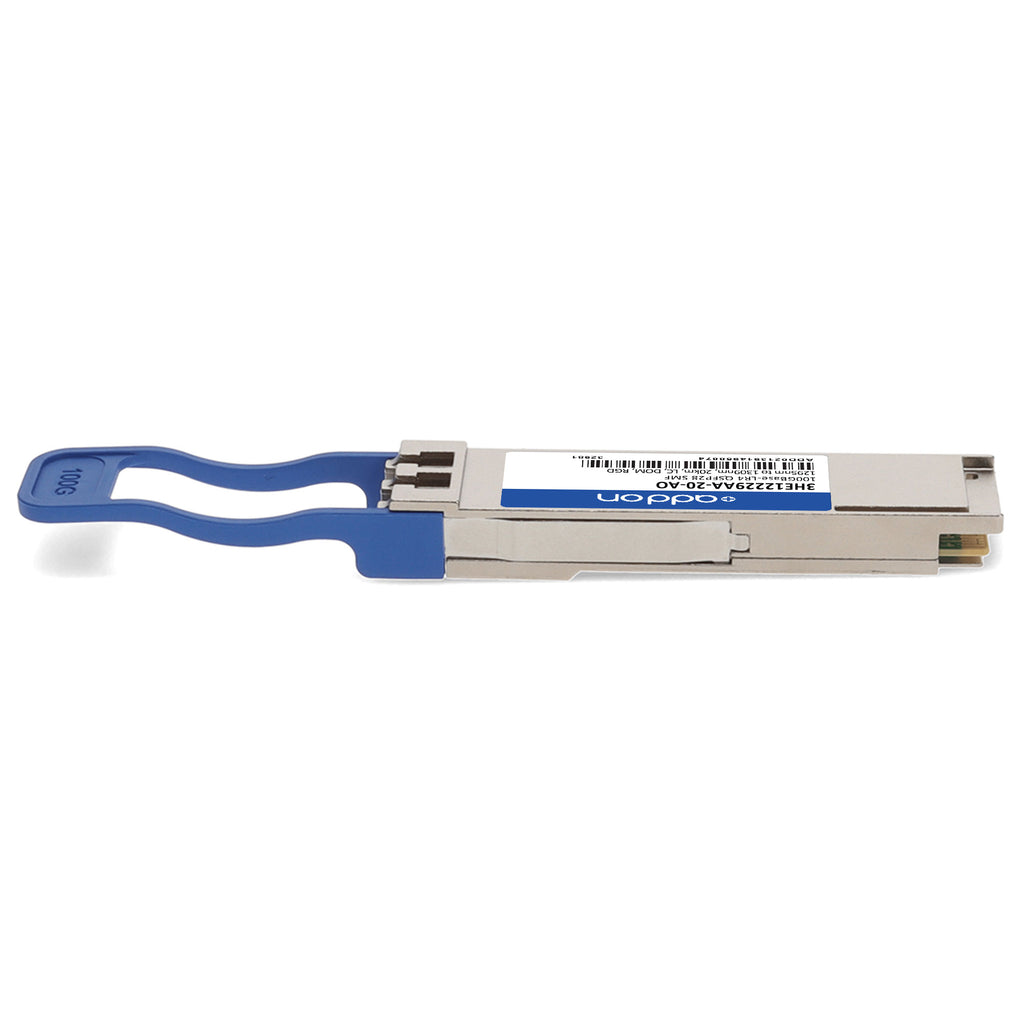

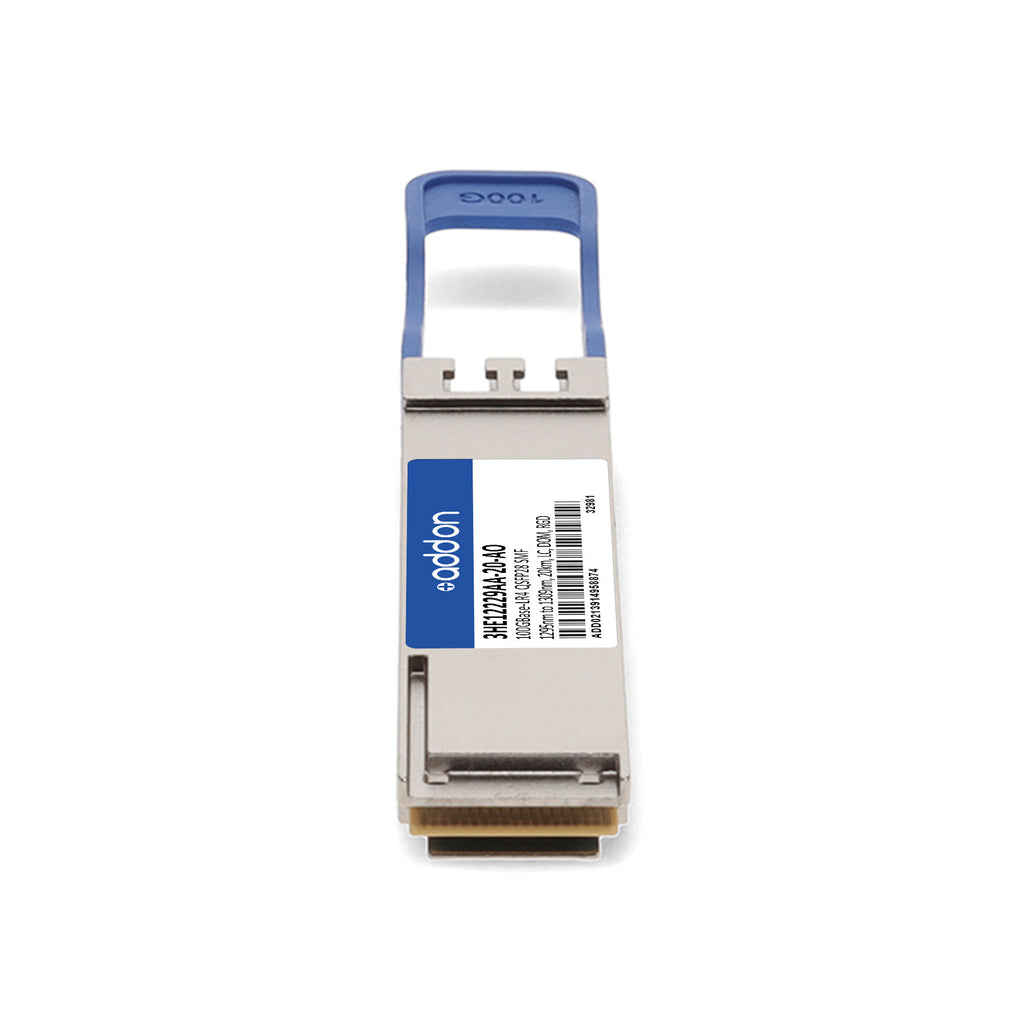

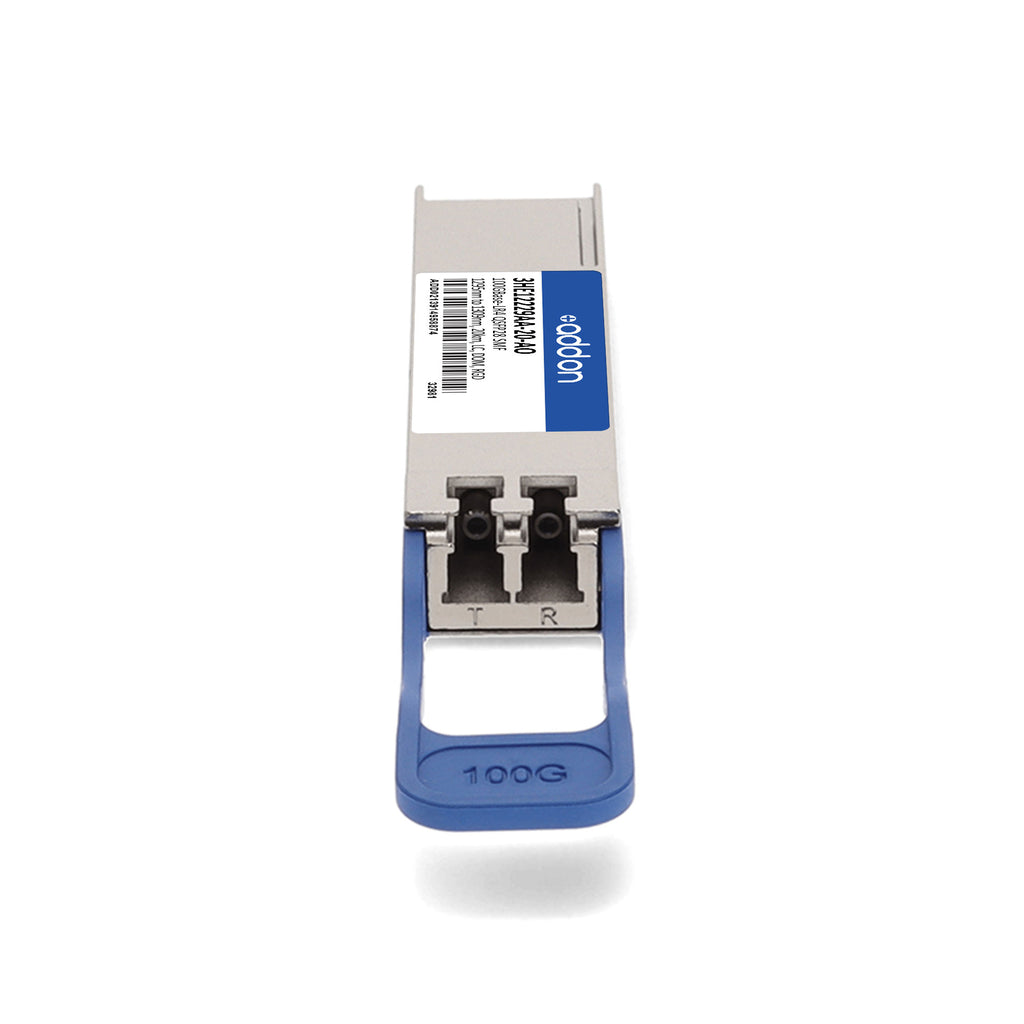

The AddOn Alcatel-Lucent Nokia® 3HE12229AA-20 compatible QSFP28 transceiver delivers high-speed 100GBase-LR4 Ethernet connectivity up to 20km over single-mode fiber (SMF) using wavelengths ranging from 1295nm to 1309nm via a duplex LC connector. Designed for superior performance and seamless interoperability, this hot-swappable transceiver is 100% compatible with the OEM equivalent and fully compliant with SFF-8665 standards.
It supports Digital Optical Monitoring (DOM) for real-time diagnostics of operating parameters, ensuring optimal network performance and reliability. Built with robust ESD protection, low EMI metal housing, and an extended industrial operating temperature range (-40°C to 85°C), it is ideal for demanding environments such as access networks, enterprise backbones, and data center interconnects. This TAA-compliant transceiver is RoHS-compliant, lead-free, and backed by AddOn’s limited lifetime warranty, guaranteeing consistent, high-quality performance.
| Specification | Details |
|---|---|
| SKU | 3HE12229AA-20-AO |
| Compatible OEM | Alcatel-Lucent Nokia® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-LR4 |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Range | 1295nm – 1309nm |
| Connector Type | Duplex LC |
| Reach / Distance | Up to 20 km |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature Range | -40°C to 85°C (Industrial) |
| Compliance Standards | SFF-8665, RoHS 2.0, TAA, FCC Part 15 Subpart B, EN55022:2010 |
| Hot Swappable | Yes |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| EMI/EMC Compliance | IEC 61000-4-3 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Launch Optical Power (per lane) | 0 to +5 dBm |
| Total Launch Optical Power | Up to +10.5 dBm |
| Receiver Sensitivity (OMA) | -9.0 dBm |
| Receiver Overload (per channel) | +5.0 dBm |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Dissipation | 5.0 W (max) |
| Applications | 100G Ethernet, Access Networks, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
