Description

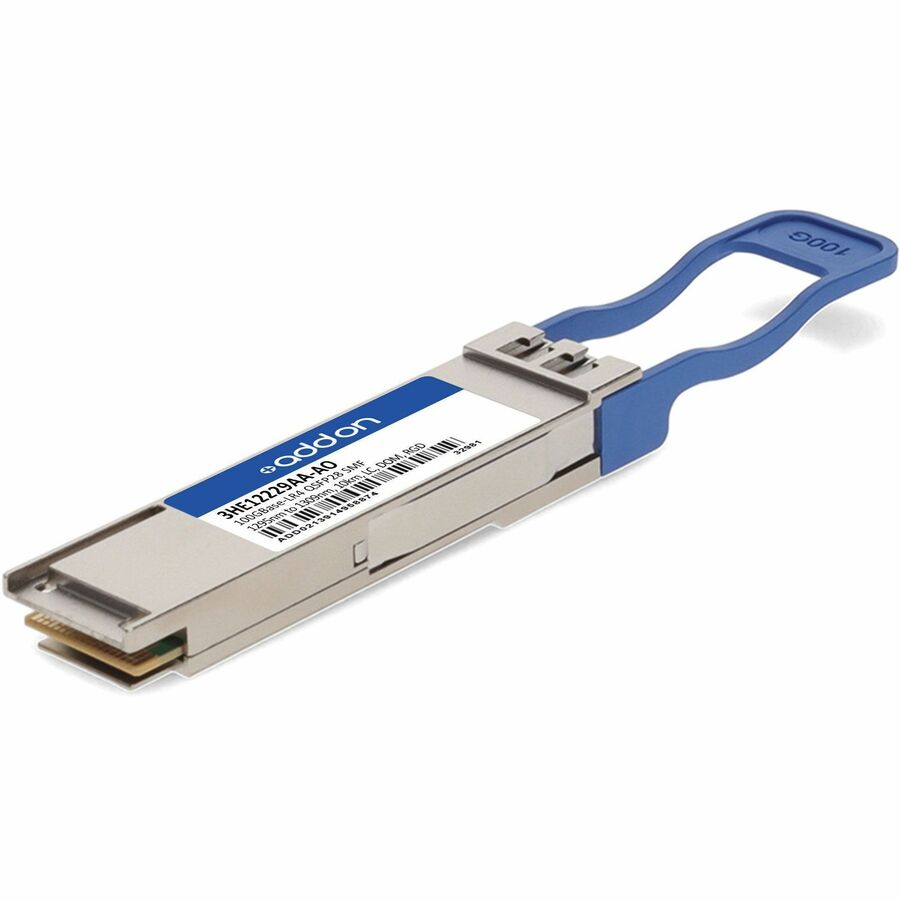

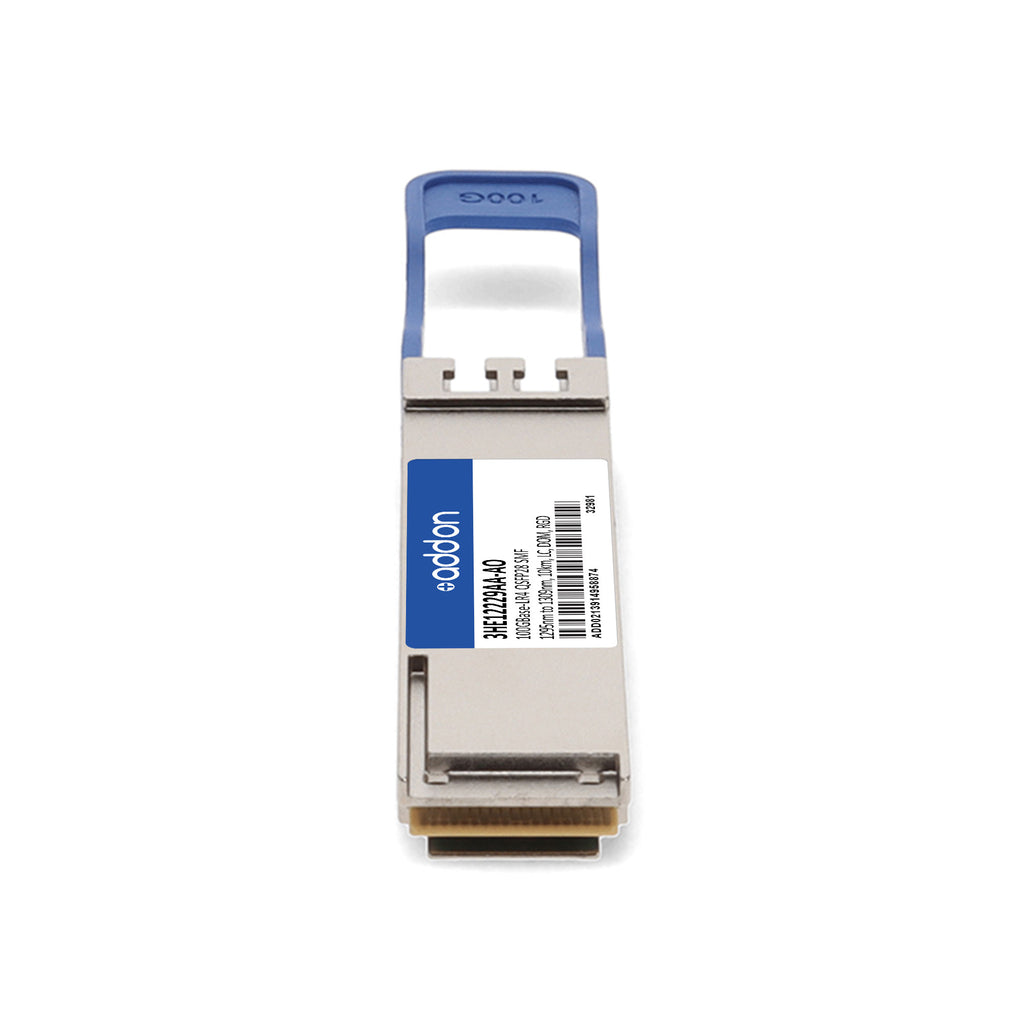

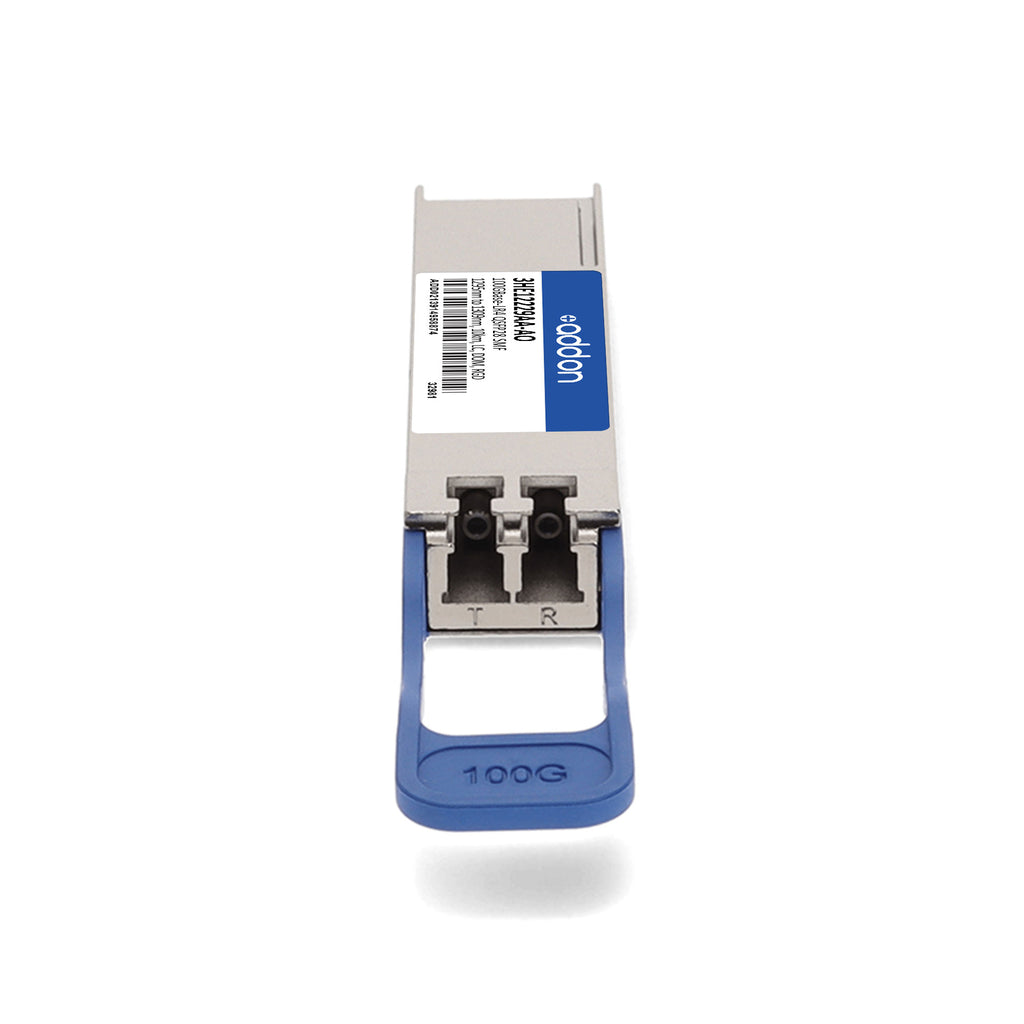

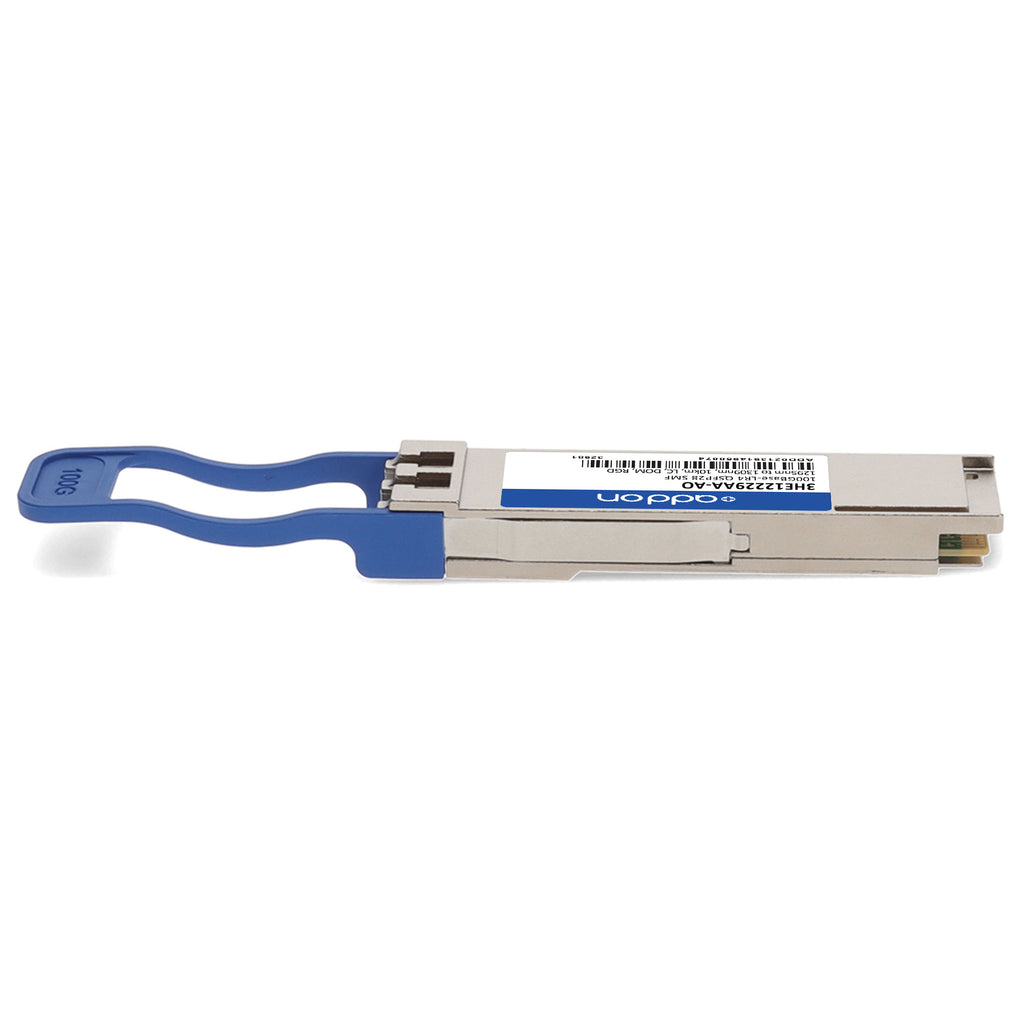

The AddOn Alcatel-Lucent Nokia® 3HE12229AA-AO is a TAA-compliant 100GBase-LR4 QSFP28 transceiver designed for high-performance Ethernet applications across enterprise, access, and data center networks. Delivering up to 100Gbps throughput over single-mode fiber (SMF), it supports distances up to 10km using wavelengths from 1295nm to 1309nm through a duplex LC connector.
Engineered for reliability and seamless OEM interoperability, this module is hot-swappable, RoHS compliant, and built with excellent ESD protection and metal housing for low EMI. It operates across a wide industrial temperature range (-40°C to 85°C) and supports Digital Optical Monitoring (DOM), enabling real-time performance tracking. Each transceiver is rigorously tested, uniquely serialized, and guaranteed to perform identically to the OEM part, backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | 3HE12229AA-AO |
| Compatible OEM | Alcatel-Lucent Nokia® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-LR4 (25.78125 Gb/s per channel) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength | 1295nm – 1309nm |
| Connector | Duplex LC |
| Max Reach | 10 km |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Compliance | SFF-8665, TAA, RoHS 2.0, MIL-STD-883E, IEC 61000-4-3, FCC Part 15, EN55022 |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | ≤ 4.0 W |
| Launch Optical Power (per lane) | -4.3 dBm to +4.5 dBm |
| Receiver Sensitivity (OMA) | ≤ -8.6 dBm |
| Overload Power (per channel) | ≤ +4.5 dBm |
| Connector Type | Duplex LC |
| Hot Pluggable | Yes |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| Use Cases | 100G Ethernet, Access Networks, Enterprise Deployments |
| Warranty | Limited Lifetime Warranty |
