Description

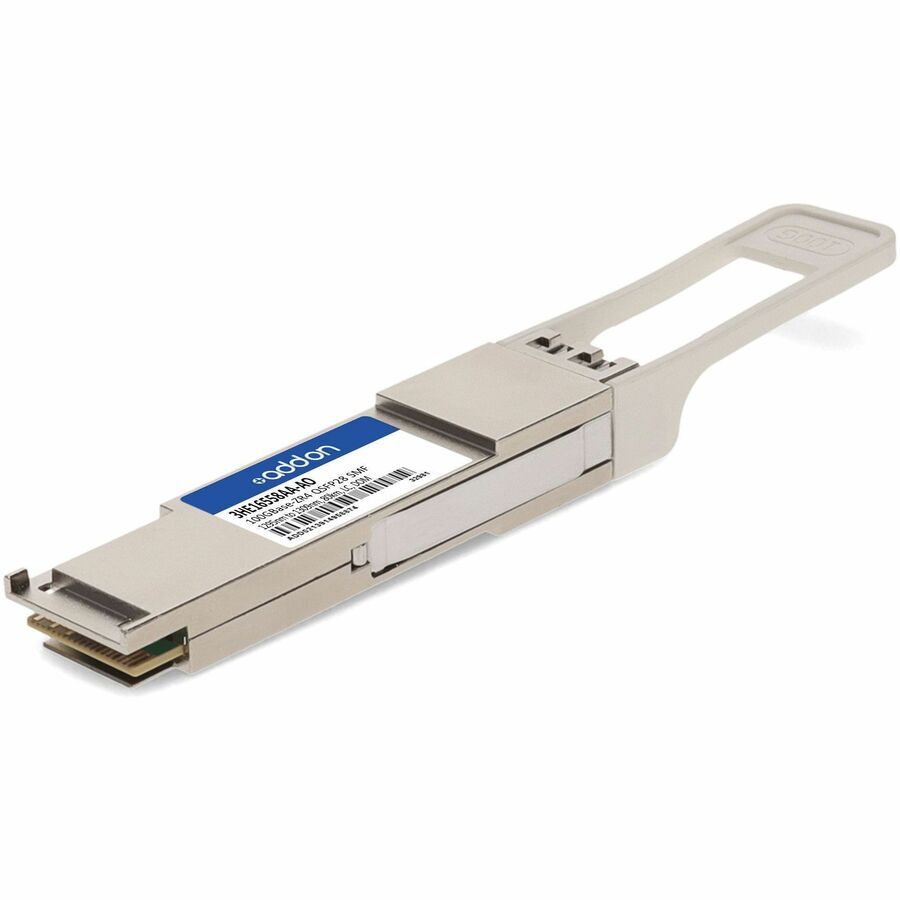

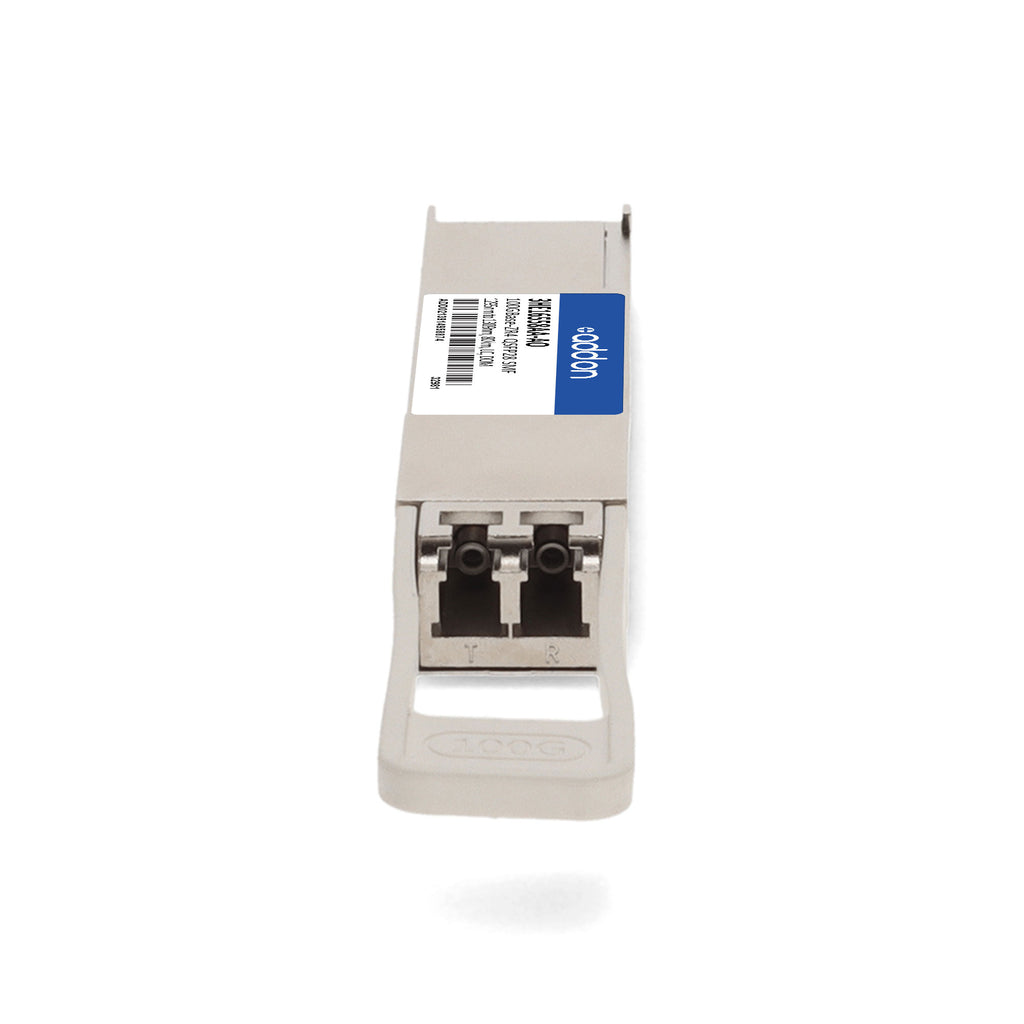

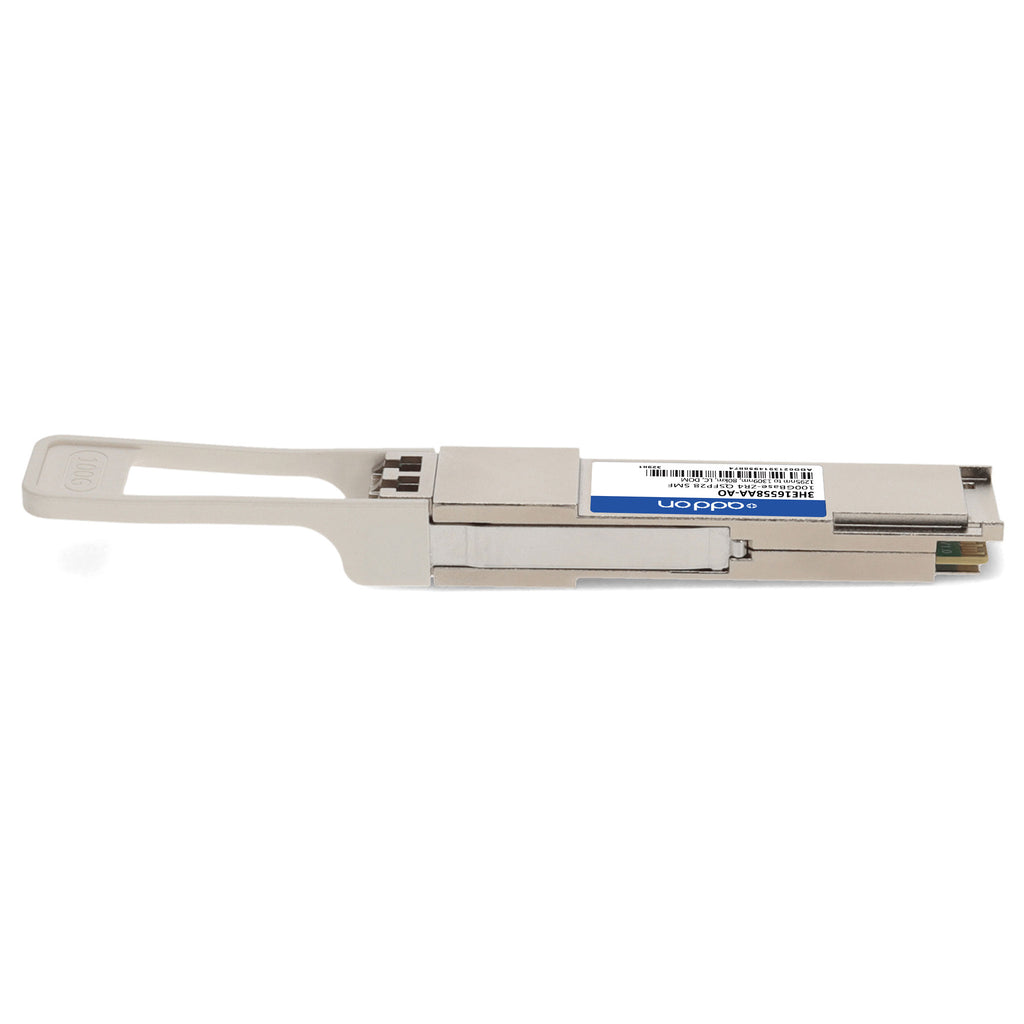

The AddOn Alcatel-Lucent Nokia® 3HE16558AA Compatible TAA 100GBase-ZR4 QSFP28 Transceiver is a high-performance, hot-swappable optical module designed for long-reach 100G Ethernet and carrier-grade optical network applications. Delivering reliable data transmission up to 80km over single-mode fiber (SMF), this transceiver operates across wavelengths from 1295nm to 1309nm and uses a duplex LC connector.
Engineered to meet or exceed OEM specifications, this module ensures seamless interoperability with Alcatel-Lucent Nokia® systems. It features Digital Optical Monitoring (DOM) for real-time parameter visibility, a 4x25Gbps LAN WDM EML transmitter, and SOA+PIN receiver technology for superior performance and link integrity. Compliant with IEEE 802.3ba, ITU-T G.959, and QSFP28 MSA standards, the 3HE16558AA-AO supports mission-critical applications in data center, enterprise, and service provider environments.
Built under stringent quality standards, this transceiver is TAA compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | 3HE16558AA-AO |
| Compatible OEM | Alcatel-Lucent Nokia® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-ZR4 |
| Wavelength Range | 1295nm – 1309nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmission Distance | Up to 80 km (with FEC) |
| Transmitter Type | 4x25Gbps LAN WDM EML TOSA |
| Receiver Type | 4x25Gbps SOA + PIN ROSA |
| Electrical Interface | 4x25G CEI-28G-VSR |
| Power Supply Voltage | 3.3 V |
| Power Consumption | ≤ 5.5 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 85% |
| Digital Optical Monitoring (DOM) | Supported |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, QSFP28 MSA |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
