Description

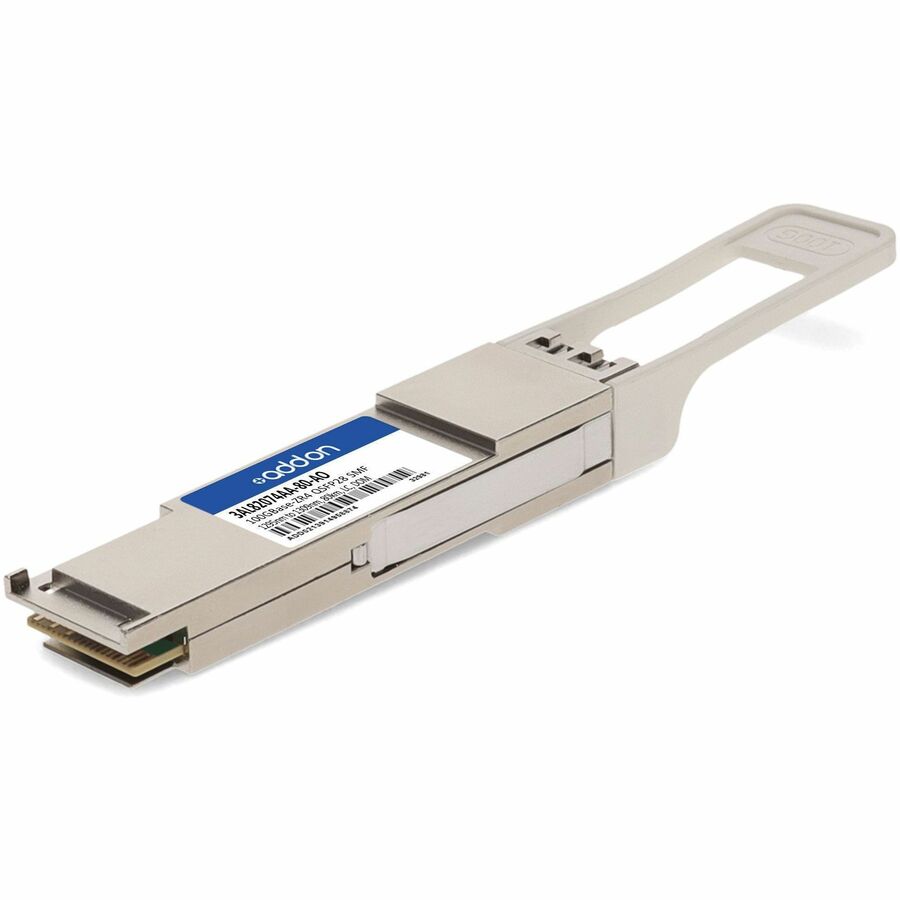

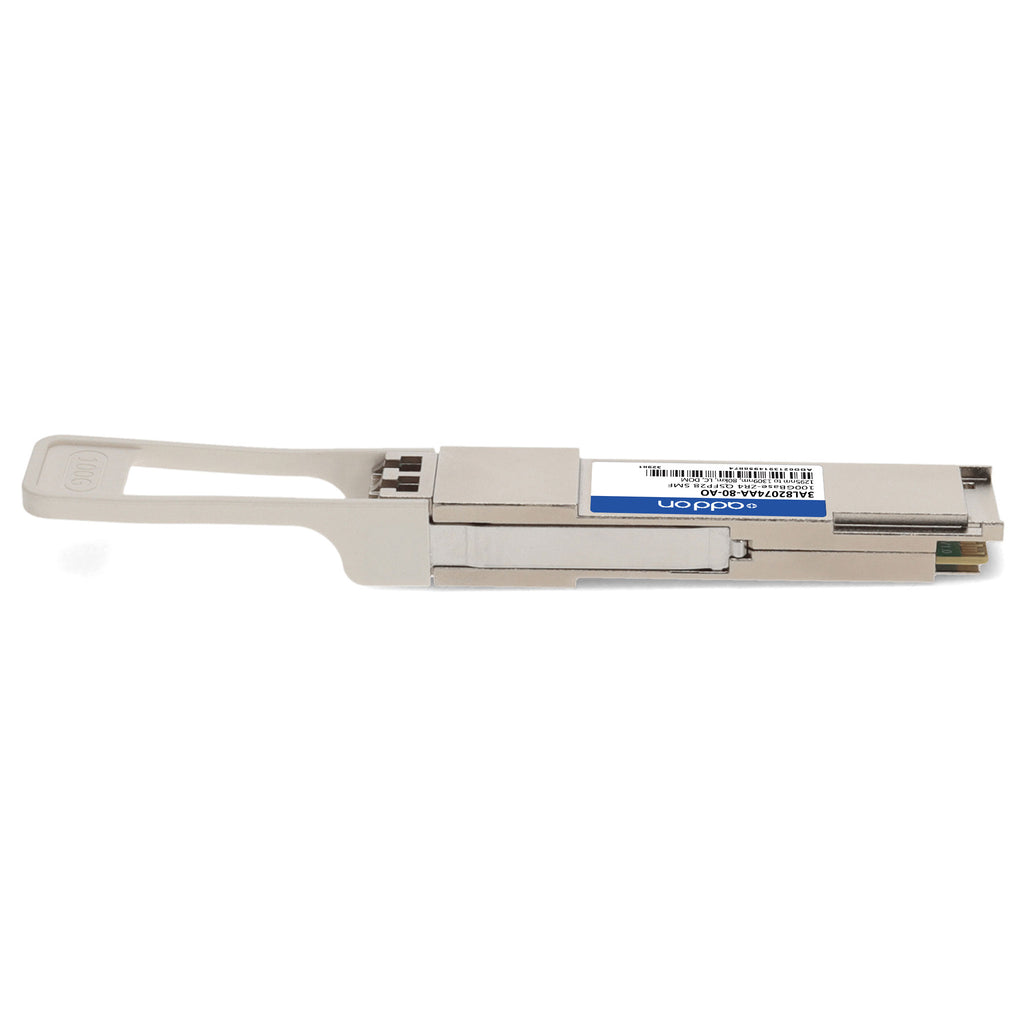

The AddOn Alcatel-Lucent Nokia® 3AL82074AA-80 compatible TAA 100GBase-ZR4 QSFP28 transceiver delivers high-performance 100 Gigabit Ethernet connectivity with extended reach up to 80km over single-mode fiber (SMF). Operating within a wavelength range of 1295nm to 1309nm and utilizing a duplex LC connector, this hot-swappable transceiver is engineered for seamless integration and reliable performance in access, enterprise, and data center networks.
Compliant with IEEE 802.3ba and ITU-T G.959 standards, this transceiver supports a 4x25Gbps LAN WDM EML transmitter and a 4x25Gbps SOA+PIN receiver, providing consistent, high-quality data transmission. It features digital optical monitoring (DOM) for real-time diagnostics, a maximum power consumption of 5.5W, and a commercial operating temperature range from 0°C to 70°C.
Every unit is programmed, uniquely serialized, and rigorously tested for data-traffic compatibility, ensuring 100% interoperability with Alcatel-Lucent Nokia® equipment. TAA compliance guarantees suitability for U.S. Government procurement, and AddOn backs the product with a limited lifetime warranty for long-term network reliability.
| Specification | Description |
|---|---|
| SKU | 3AL82074AA-80-AO |
| Compatibility | Alcatel-Lucent Nokia® 3AL82074AA-80 |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-ZR4 (4x25Gbps) |
| Wavelength Range | 1295nm to 1309nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Reach | Up to 80km (with FEC) |

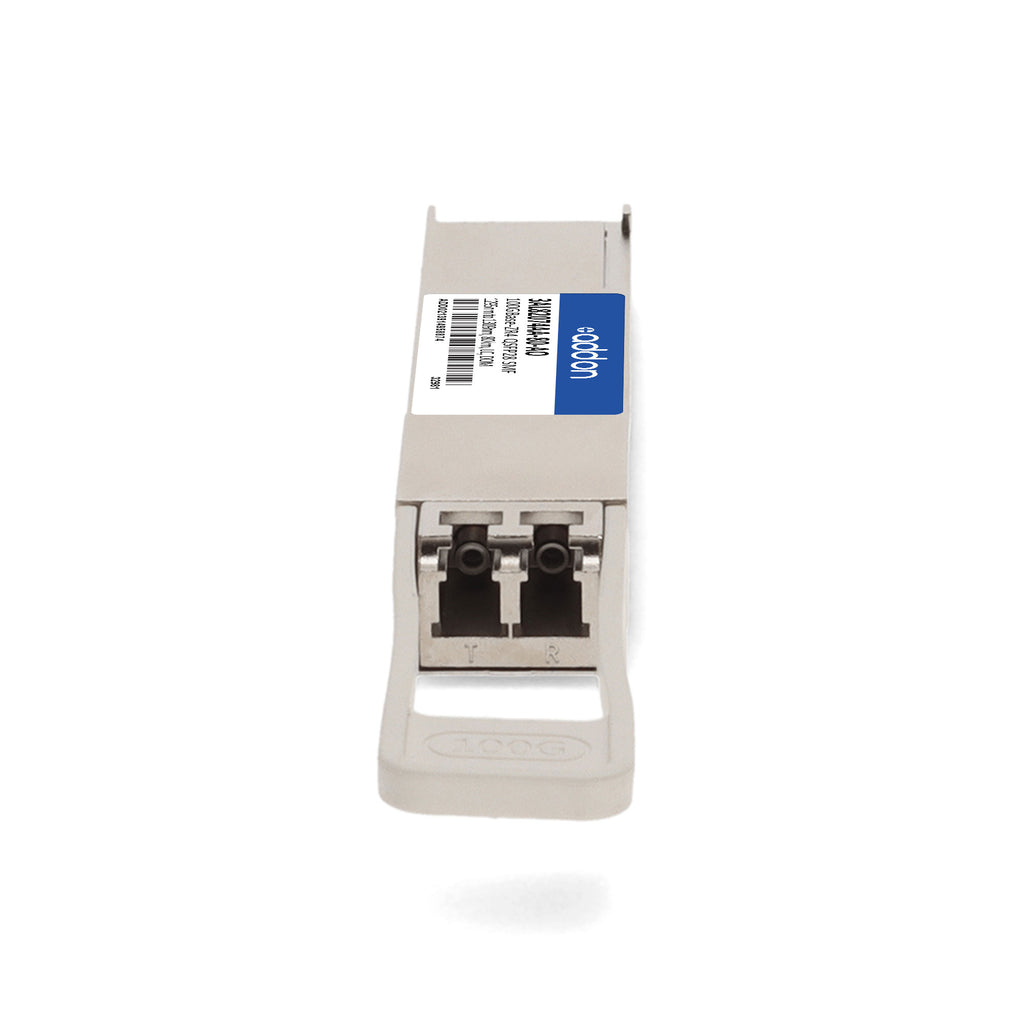

| Connector | Duplex LC |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Power Supply Voltage | 3.3V |
| Power Consumption | ≤ 5.5W |
| Operating Temperature | 0°C to 70°C |
| Compliance Standards | IEEE 802.3ba, ITU-T G.959, CEI-28G-VSR, RoHS, TAA |
| Transmitter Type | Cooled 4x25Gbps LAN WDM EML TOSA |
| Receiver Type | 4x25Gbps SOA+PIN ROSA |
| Launch Power (Total) | 7 to 12.5 dBm |
| Receiver Sensitivity (OMA) | ≤ -26.4 dBm |
| Connector Interface | Hot-Pluggable |
| Applications | 100G Ethernet, Access Networks, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
