Description

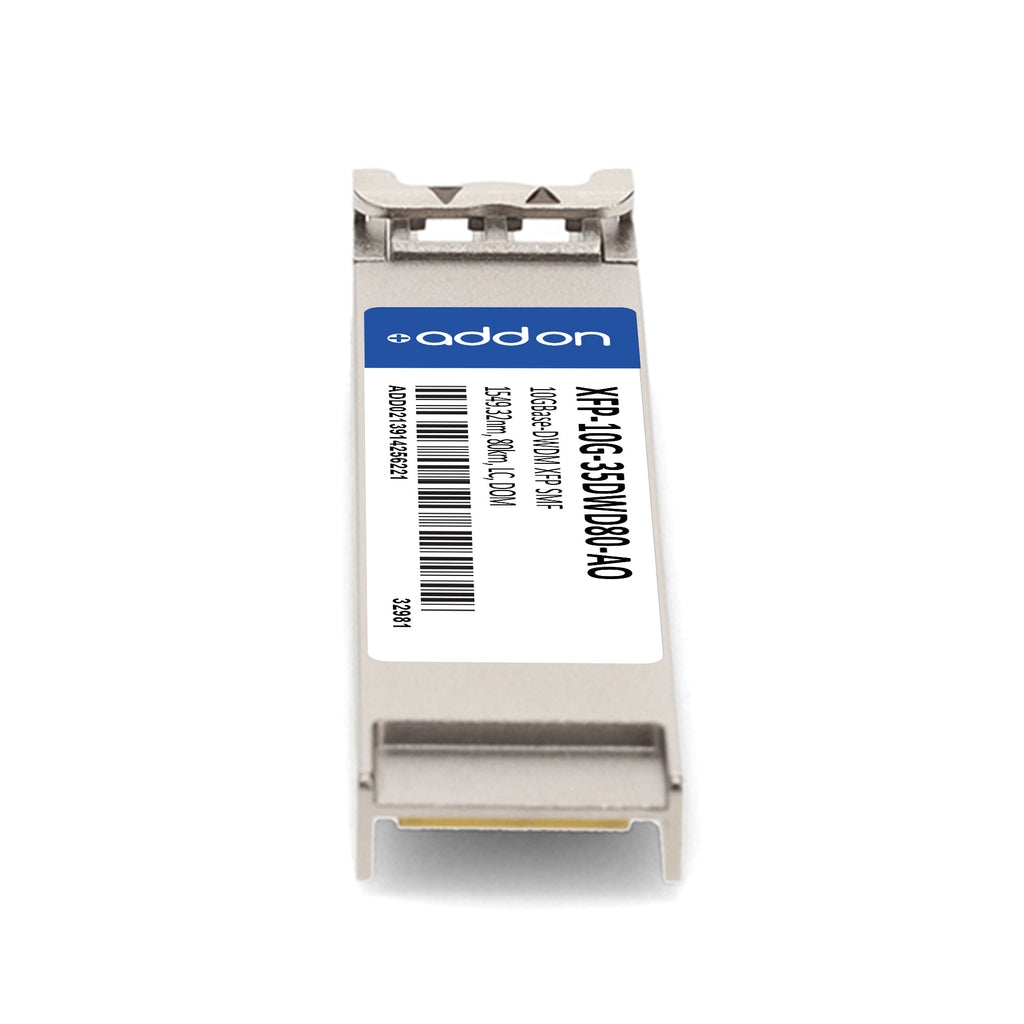

The AddOn XFP-10G-35DWD80-AO is an Alcatel-Lucent Nokia® compatible 10GBase-DWDM XFP transceiver designed for high-performance optical networking. Supporting data rates up to 11.3 Gbps, this hot-pluggable module delivers reliable transmission over single-mode fiber (SMF) distances of up to 80km at a 1549.32nm wavelength.
Built with a temperature-stabilized EML transmitter and APD receiver, it ensures stability, accuracy, and long-distance reach. The module features an LC duplex connector, digital optical monitoring (DOM) for real-time parameter tracking, and is fully compliant with INF-8077i standards.
This transceiver is TAA compliant, RoHS certified, and tested for 100% compatibility with the OEM equivalent. It’s ideal for 10G Ethernet over DWDM, 8G/10G Fibre Channel, and access, metro, and enterprise networks. Backed by AddOn’s lifetime warranty, it ensures both performance and peace of mind.
| Specification | Details |
|---|---|
| Part Number | XFP-10G-35DWD80-AO |
| Form Factor | XFP (10G) |
| Data Rate | Up to 11.3 Gbps |
| Wavelength | 1549.32 nm (DWDM ITU Channel 35, 100GHz spacing) |
| Distance/Reach | Up to 80 km over SMF |
| Transmitter Type | EML (Externally Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |

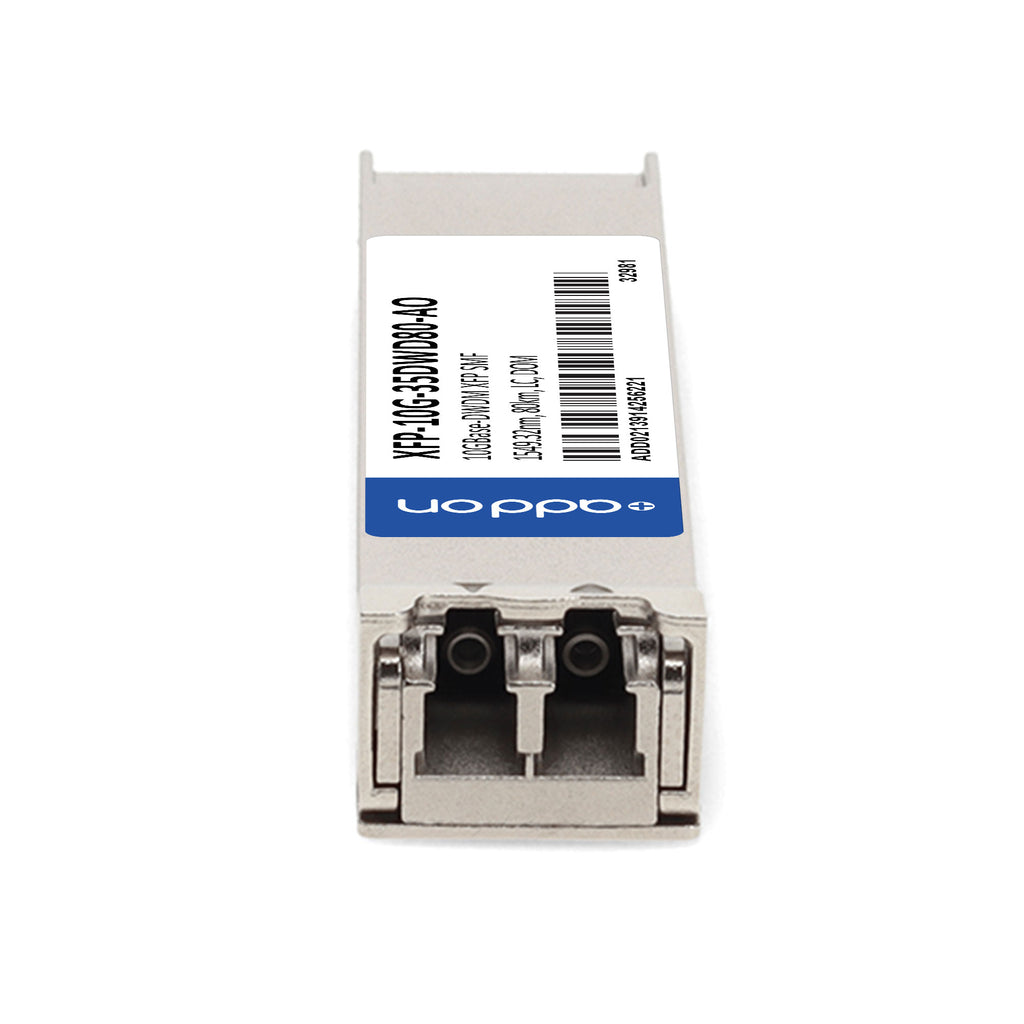

| Connector Type | Duplex LC |
| Digital Monitoring (DOM) | Supported |
| Temperature Range | 0°C to 70°C (Commercial) |
| Power Consumption | 3.5 W (typical) |
| Standards Compliance | INF-8077i, RoHS, TAA |
| Applications | 10G Ethernet over DWDM, 8x/10x Fibre Channel, Metro/Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
