Description

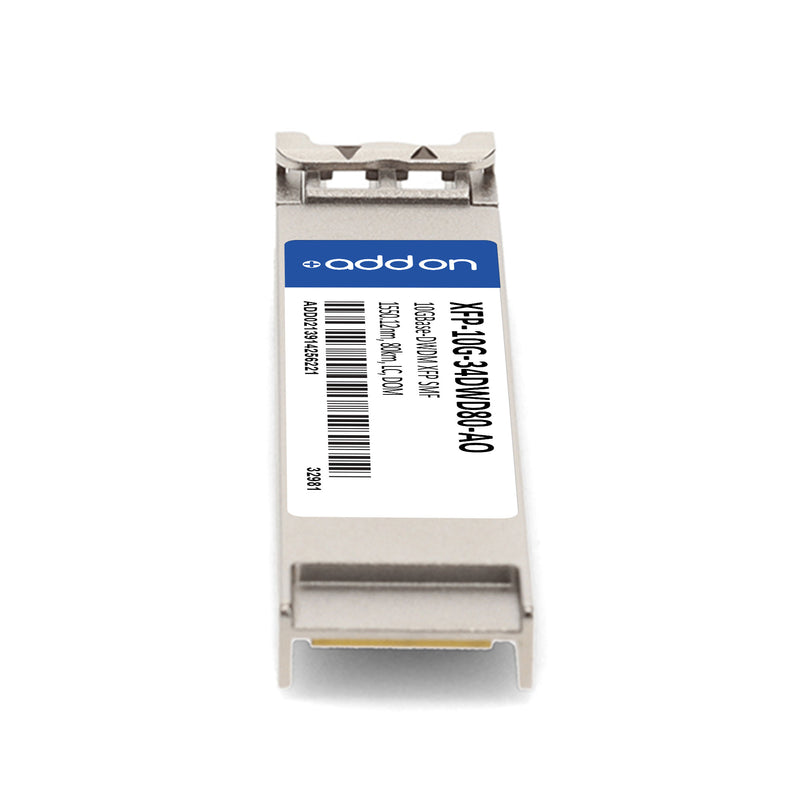

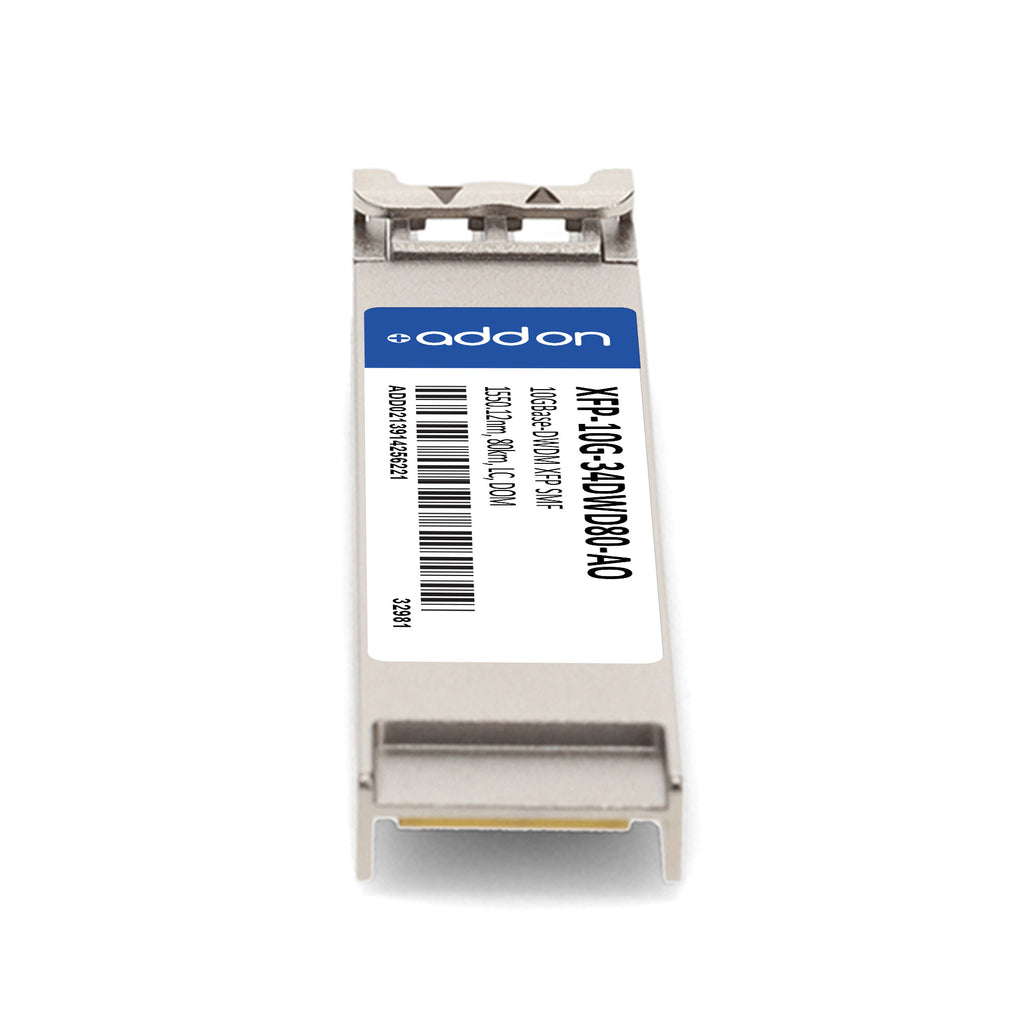

The AddOn Alcatel-Lucent Nokia® XFP-10G-34DWD80 compatible transceiver delivers reliable 10GBase-DWDM performance up to 80km over single-mode fiber (SMF) using a 1550.12nm wavelength and duplex LC connector. Designed for seamless compatibility, this hot-swappable XFP is fully tested, uniquely serialized, and programmed for identical initialization and performance to the OEM version.
Featuring a temperature-stabilized EML transmitter, APD receiver, and Digital Optical Monitoring (DOM) support, it ensures optimal performance and real-time operating parameter access. The module is TAA compliant, RoHS compliant, and includes a limited lifetime warranty, making it ideal for carrier, metro, and enterprise applications requiring dependable DWDM connectivity
| Specification | Details |
|---|---|
| Form Factor | XFP (Hot Pluggable) |
| Data Rate | 10GBase-DWDM, up to 11.3 Gbps |
| Wavelength | 1550.12nm (Channel 34, ITU 100GHz Grid) |
| Maximum Reach | 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | EML (Externally Modulated Laser), temperature-stabilized |
| Receiver Type | APD |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Consumption | 3.5 W typical |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity (RX) | -23 dBm |
| Receiver Overload | -8 dBm |
| Compliance | INF-8077i, RoHS, TAA, FCC Part 15, EN55022, FDA/IEC Laser Safety |
| Warranty | Limited Lifetime Warranty |
