Description

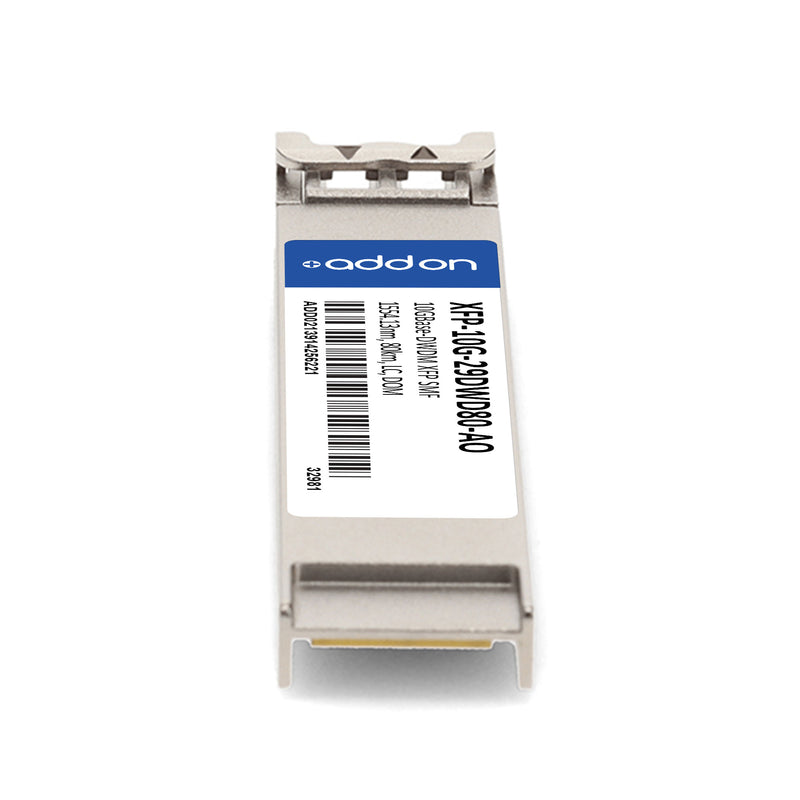

The AddOn Alcatel-Lucent Nokia® XFP-10G-29DWD80 compatible transceiver delivers reliable 10GBase-DWDM connectivity up to 80km over single-mode fiber (SMF) using a 1554.13nm wavelength. Featuring a duplex LC connector, temperature-stabilized EML transmitter, and APD receiver, this module is engineered for stability, performance, and compliance with INF-8077i standards.
Designed for access, metro, and enterprise networks, the hot-swappable form factor ensures simple installation and replacement. Digital Optical Monitoring (DOM) enables real-time parameter tracking, enhancing network reliability. Fully TAA compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty, this transceiver ensures seamless compatibility with the equivalent Alcatel-Lucent Nokia® OEM module while offering exceptional value and support.
| Specification | Details |
|---|---|
| Form Factor | XFP (10GBase-DWDM) |
| Compatibility | Alcatel-Lucent Nokia® XFP-10G-29DWD80 |
| Data Rate | Up to 11.3 Gbps |
| Wavelength | 1554.13nm (100GHz ITU Channel 29) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Maximum Reach | 80 km |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | +3.3V / +5V |
| Power Consumption | 3.5 W max |
| Compliance | INF-8077i, TAA, RoHS, MIL-STD-883E, IEC 61000-4-3, FCC Part 15B, EN55022 |
| Warranty | Limited Lifetime |
