Description

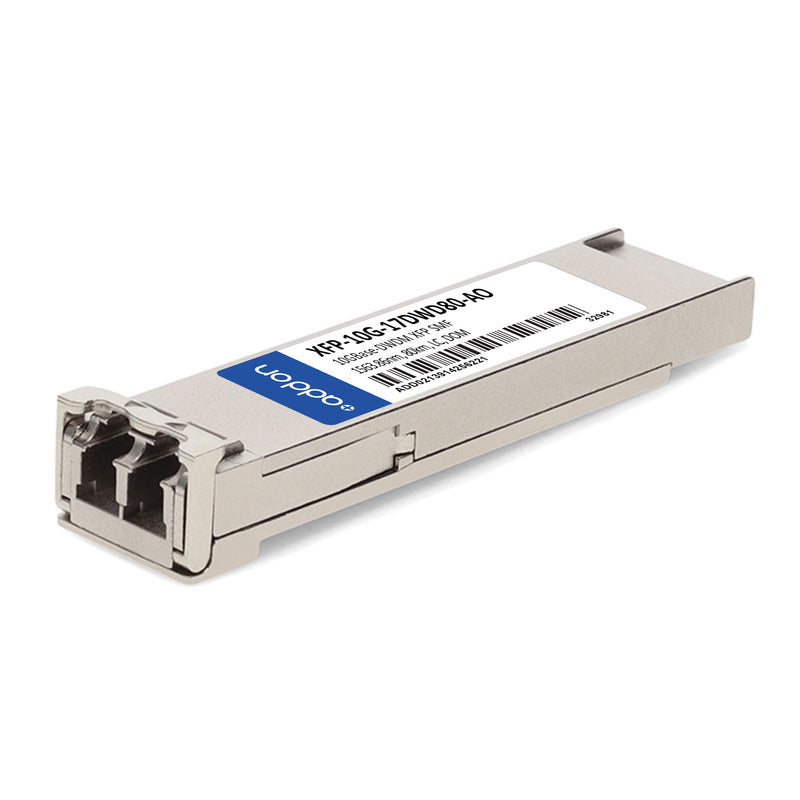

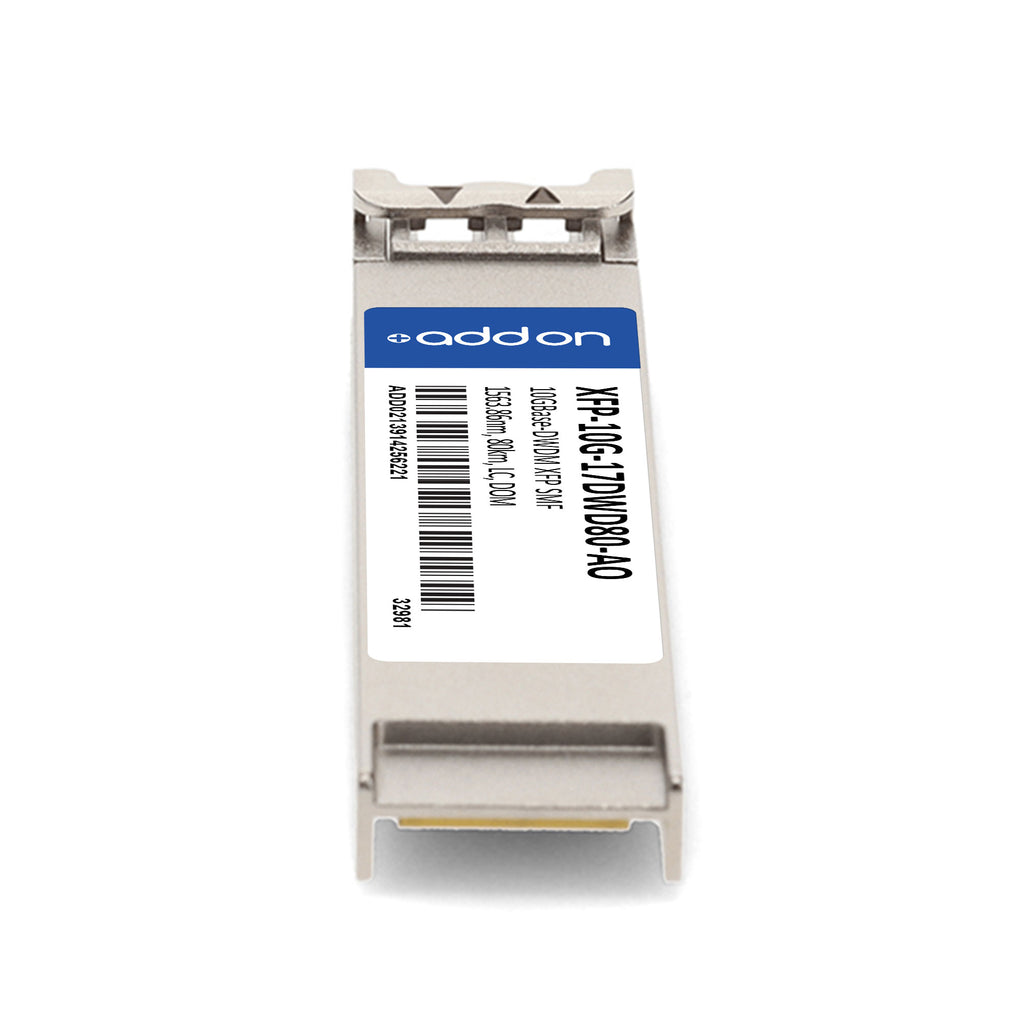

The AddOn Alcatel-Lucent Nokia® XFP-10G-17DWD80-AO is a high-performance, TAA-compliant 10GBase-DWDM XFP transceiver designed for long-haul single-mode fiber applications up to 80km. Operating at a 1563.86nm wavelength with 100GHz ITU-T channel spacing, this hot-swappable module ensures seamless integration into existing Alcatel-Lucent Nokia® infrastructure.
Featuring a temperature-stabilized EML transmitter, APD receiver, and advanced digital optical monitoring (DOM), it delivers reliable, real-time performance monitoring. Built with a duplex LC connector, excellent ESD protection, and RoHS compliance, this transceiver guarantees compatibility, durability, and cost efficiency without compromising performance.
Backed by rigorous testing, unique serialization, and a limited lifetime warranty, it is an ideal solution for service providers and enterprises requiring dependable 10Gbps DWDM connectivity for metro, access, and enterprise networks.
| Specification | Details |
|---|---|
| Form Factor | XFP (Hot Pluggable) |
| Data Rate | Up to 10.3 Gbps |
| Standards Compliance | INF-8077i, RoHS, TAA |
| Wavelength | 1563.86 nm (Channel 17, ITU-T Grid 100GHz) |
| Transmission Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Optical Power Output | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | ≤ 3.5 W |
| Compliance | FCC Part 15B, EN55022, IEC 60825-1/2 (Laser Safety) |
| Applications | 10G Ethernet DWDM, 8x/10x Fibre Channel, Access/Metro/Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
