Description
The MSI MS-C902 is a slim, fanless industrial box PC designed for high-performance edge computing, digital signage, kiosks, and automation environments. Powered by an Intel Core i5-1245UE (12th Gen Alder Lake-P) processor, this system delivers reliable computing performance with low power consumption in a compact, cable-free chassis.
With support for up to four independent displays via dual HDMI and dual DisplayPort outputs, the MS-C902 is ideal for multi-screen deployments and 4K content delivery. Dual 2.5GbE LAN ports, onboard TPM 2.0, and multiple M.2 expansion slots make it well-suited for secure, connected, and scalable industrial applications.

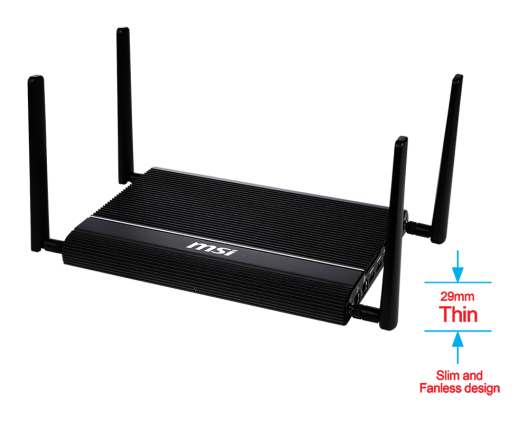

Its 29mm ultra-slim, fanless design ensures silent operation and long-term reliability, while wide OS support and VESA mounting enable flexible installation across retail, industrial, and commercial environments.
| Category | Specifications |
|---|---|
| System Type | Fanless Industrial Box PC (Barebone) |
| Model | MSI MS-C902 |
| Processor | Intel Core i5-1245UE (12th Gen Alder Lake-P, 15W) |
| Processor Socket | BGA |
| Chipset | Integrated |
| Memory Support | Dual-channel DDR4 3200 MHz |
| Memory Slots | 2 × SO-DIMM |
| Maximum Memory | Up to 64GB |
| Graphics | Intel Iris Xe Graphics |

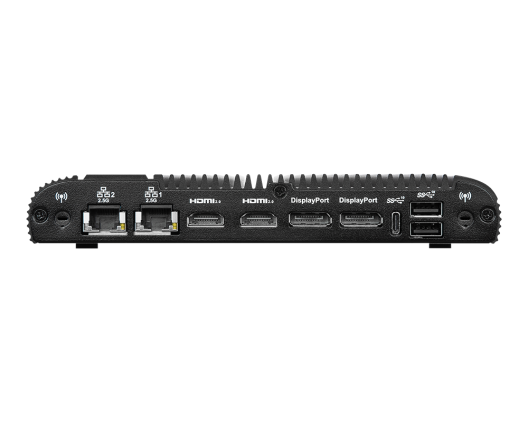

| Display Outputs | 2 × HDMI 2.0, 2 × DisplayPort |
| Maximum Displays | 4 independent displays |
| Ethernet | 2 × 2.5GbE LAN (RJ-45) |
| Audio | Line-out |
| USB Ports | 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C, 2 × USB 2.0 |

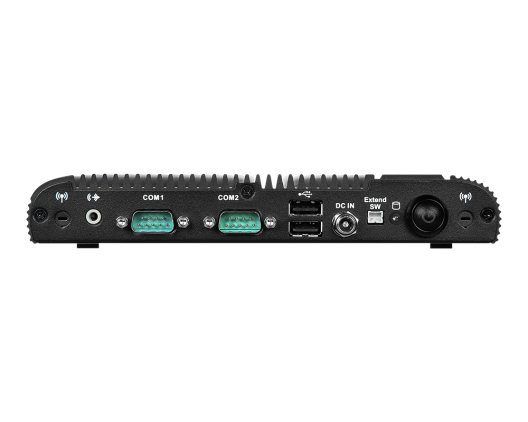

| Serial Ports | 2 × COM (RS-232/422/485) |
| Storage Support | 1 × M.2 M-Key (PCIe Gen4 x4 / SATA), 1 × 2.5″ SATA SSD |
| Expansion Slots | M.2 M-Key, M.2 B-Key (Nano SIM), M.2 E-Key |
| Security | Onboard TPM 2.0 |
| Power Input | DC-In 19V (Lockable) |
| Cooling | Fanless |
| Chassis Design | Cableless proprietary board |
| Dimensions (W × D × H) | 196 × 285 × 29 mm |
| Weight | 2.24 kg |
| Mounting Options | VESA / Wall Mount |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 10% – 90% (non-condensing) |
| Certifications | FCC Class B, CE, UKCA, VCCI, RCM |
| Color | Black |
| Included Accessories | Antennas, VESA Mount, Power Cord (USA) |
