Description

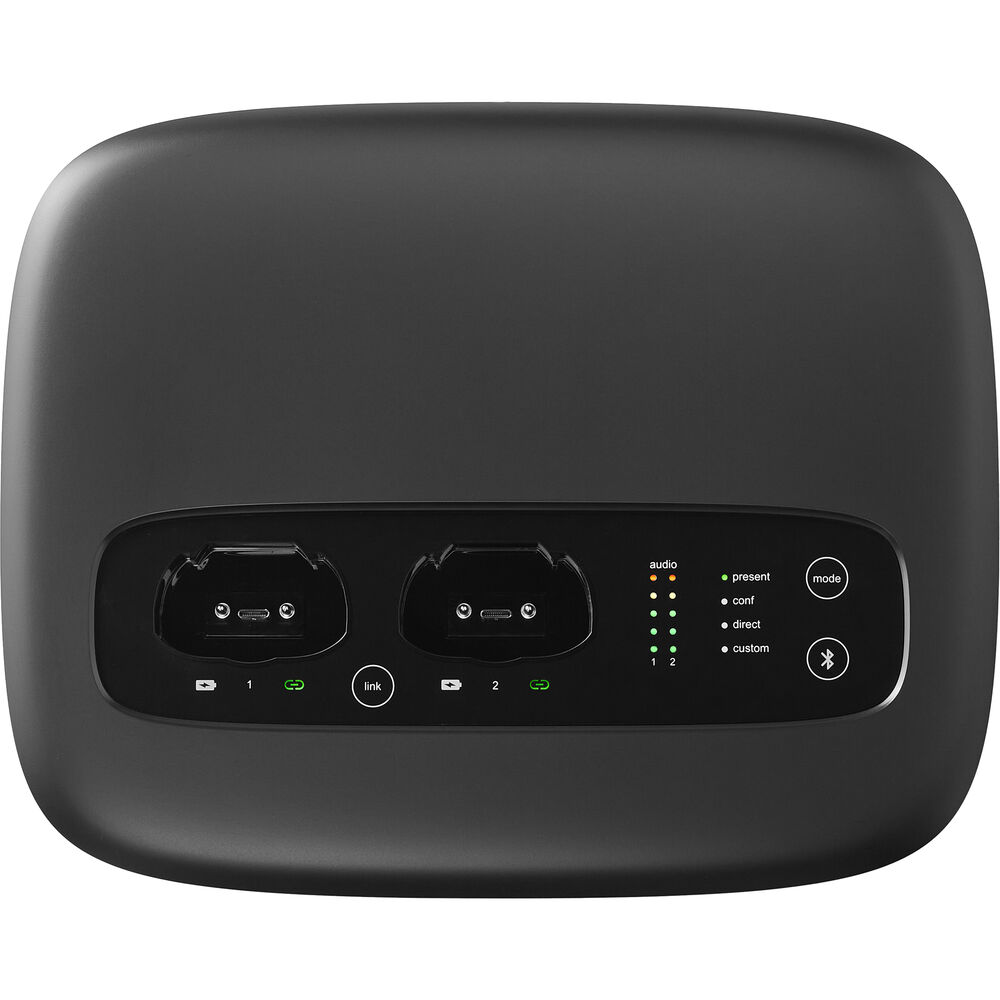

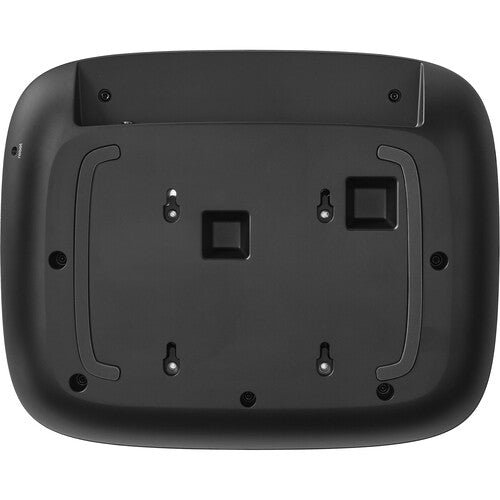

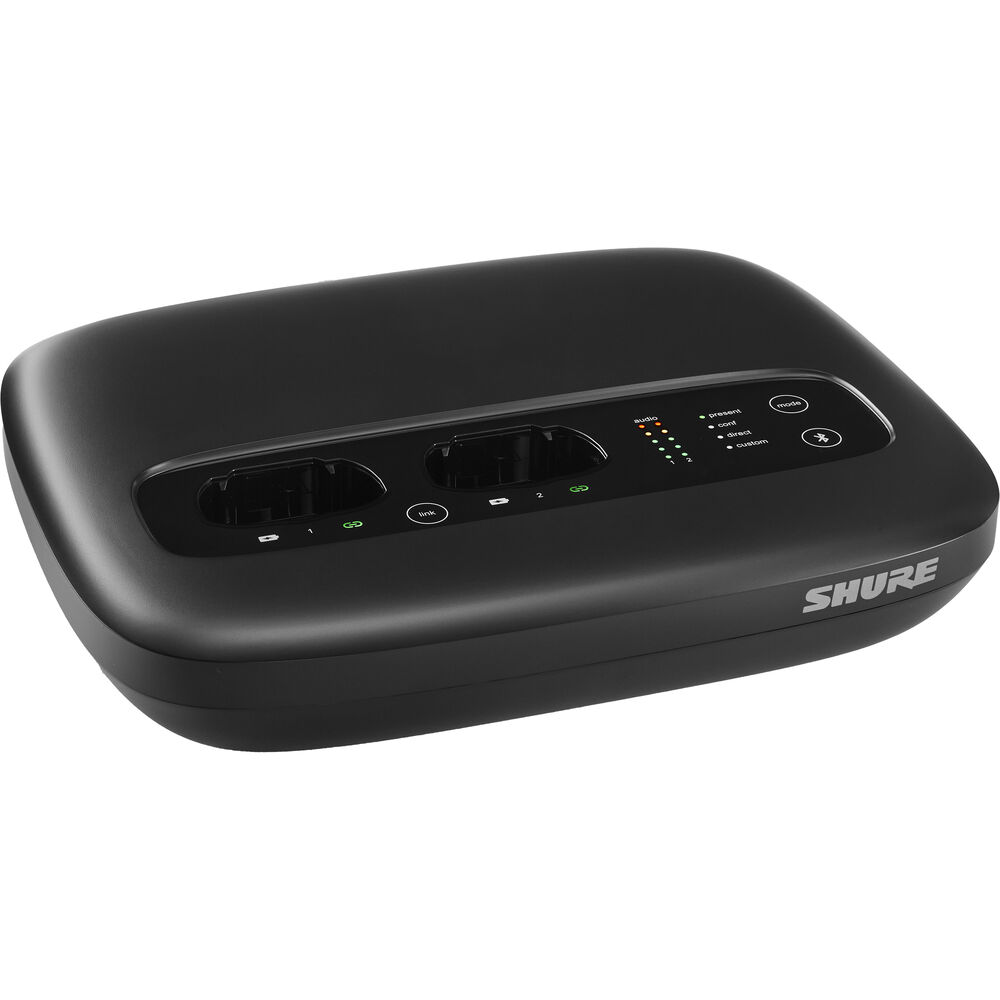

The Shure MXWAPXD2 Access Point Transceiver is the central hub of the MXW neXt 2 wireless conferencing system, delivering a powerful all-in-one solution for modern hybrid environments. Designed for conference rooms, classrooms, and presentation spaces, this two-channel base unit integrates wireless audio transmission, intelligent DSP processing, microphone charging, and flexible connectivity into a single compact platform.
Built to support both in-room and remote participants, the MXWAPXD2 ensures clear, intelligible communication with advanced IntelliMix DSP features such as automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Its DECT 1.9 GHz wireless technology provides reliable, interference-free operation with automatic frequency management, while AES-256 encryption ensures secure communication.
With support for Dante, analog, and USB-C audio, this transceiver seamlessly integrates with conferencing systems, sound reinforcement setups, and networked audio environments. Expandable up to 80 channels in high-density mode, it offers scalability for growing deployments. Integrated charging slots for two transmitters and fast setup capabilities make it ideal for both permanent installations and portable applications.
| Specification | Details |
|---|---|
| Product Type | Access Point Transceiver for Wireless Conferencing System |
| Wireless Technology | DECT 1.9 GHz |
| Channel Capacity | 2 Channels (Expandable to 40 Standard / 80 High Density) |
| Audio Processing | IntelliMix DSP (Automixer, Echo Cancellation, Noise Reduction, AGC, EQ) |
| Encryption | AES-256 Secure Encryption |
| Wireless Range | Up to 150 ft (45.7 m) |
| Compatibility | Shure MXW neXt 2 MXW1X, MXW2X, MXW6X Transmitters |

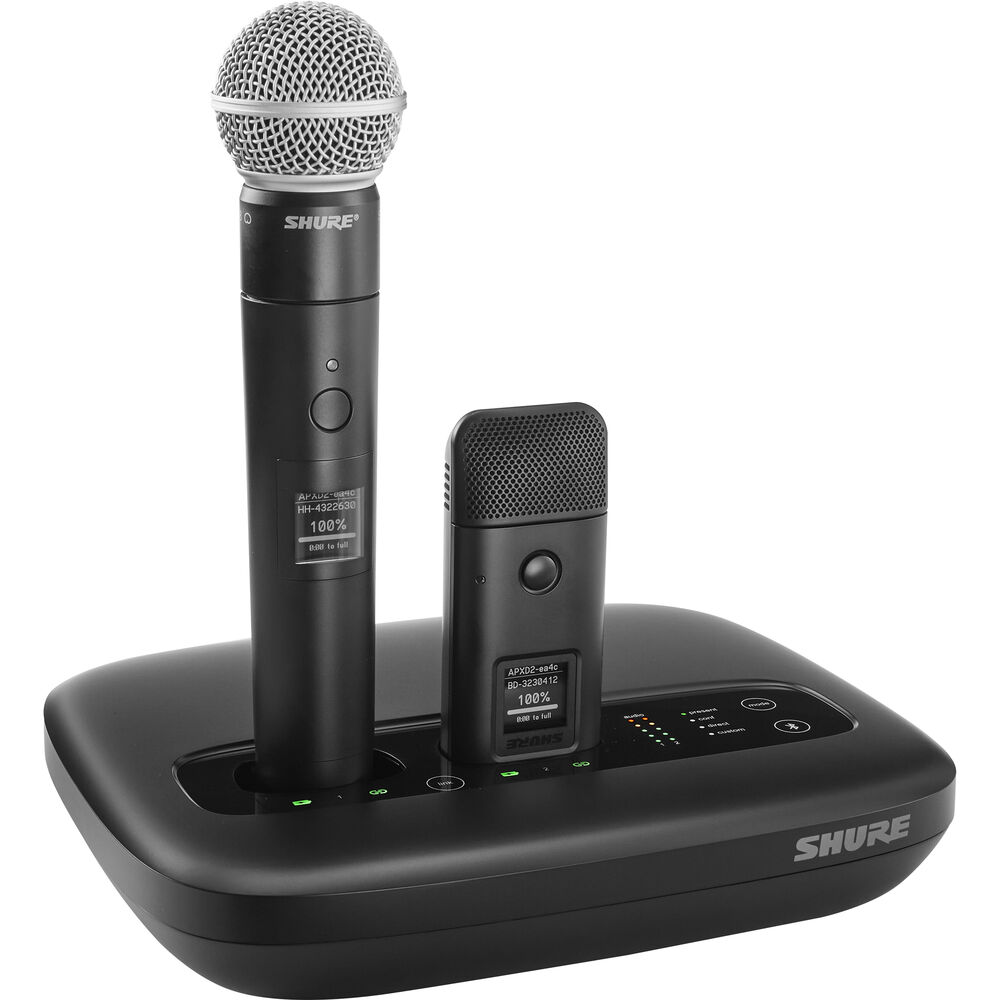

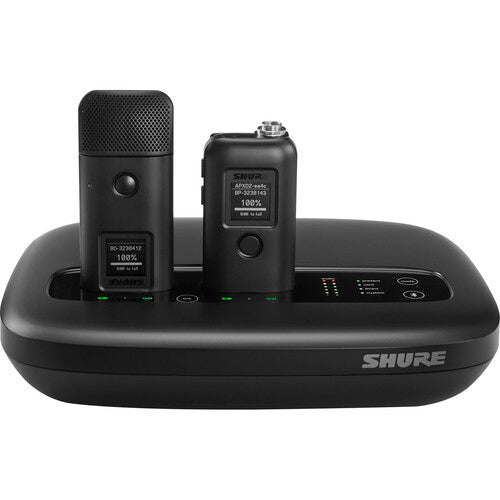

| Charging क्षमता | Integrated charging slots for 2 transmitters |

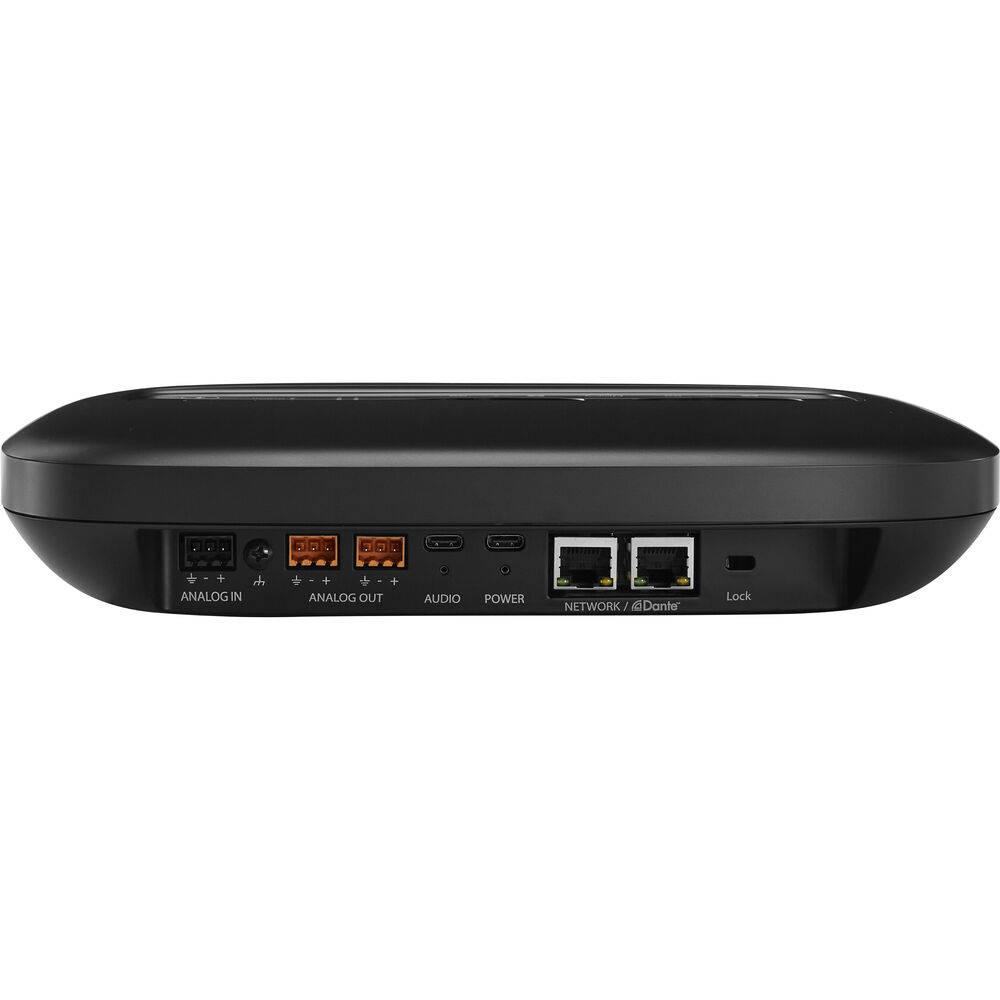

| USB Connectivity | 1 x USB-C (Power Only), 1 x USB-C (Audio/Video I/O) |
| Audio Inputs | 2 x 3-Pin Block Inputs |
| Audio Outputs | 2 x 3-Pin Block Outputs |
| Network Interfaces | 2 x RJ45 Dante Ports (Audio & Control Separation) |
| Additional Dante Ports | 3 x Dante Outputs for external devices |
| Analog Audio | Balanced Phoenix connectors |
| Power Source | USB-C Powered |
| Display | Direct View LED |
| Setup Features | Automatic Frequency Management, Quick Setup |
| System Integration | Dante, Analog, USB Audio |
| Use Case | Conferences, Classrooms, Hybrid Meetings, Presentations |
| Color | Black |
| Dimensions | 15.5 x 9.2 x 2.5 in |
| Weight | 3.71 lb |
| Included Items | MXWAPXD2 Transceiver Unit |
| Warranty | 2-Year Limited Manufacturer Warranty |
