Description

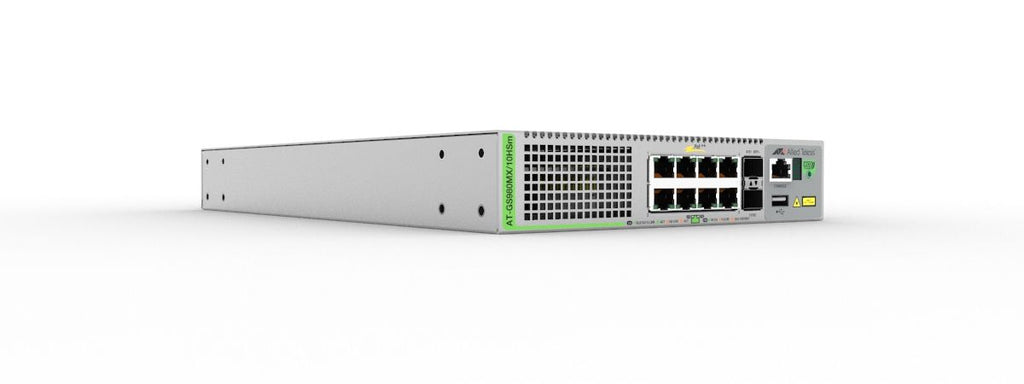

The Allied Telesis CentreCOM AT-GS980MX/10HSM is a high-performance, rack-mountable Layer 3 Lite switch designed for modern enterprise networks requiring multi-Gigabit speeds and reliable PoE++ power. Equipped with 8 x 100/1000/2.5G/5G RJ-45 (PoE++) ports and 2 x 10 Gigabit SFP+ uplinks, it delivers seamless network performance, advanced security, and robust traffic management capabilities. With 500W PoE++ power, it’s ideal for powering high-demand devices like wireless access points and IP surveillance systems.
Advanced features such as IEEE 802.3bt PoE++, extensive Layer 2/3 protocols, 16K MAC table, and support for up to 4 stacked units, make this a versatile, scalable solution for smart buildings and enterprise edge deployments.
| Specification | Details |
|---|---|
| Manufacturer | Allied Telesis |
| Model | AT-GS980MX/10HSM |
| Product Type | Managed L3 Lite Ethernet Switch |
| Ports | 8 x 100/1000/2.5G/5G RJ-45 (PoE++) |
| Uplink Ports | 2 x 10 Gigabit SFP+ |
| PoE Standard | PoE++ (IEEE 802.3bt) |
| PoE Power Budget | 500W |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 89.2 Mpps |
| MAC Address Table | 16K entries |
| Flash Memory / RAM | 256 MB / 1 GB DDR3 |
| Jumbo Frame Support | 10 KB |
| Stacking Support | Up to 4 units |
| Mounting | 1U Rack-mountable |
| Enclosure Color | Gray |
| Operating Temp. Range | 0°C to 50°C |
| Dimensions (W x D x H) | 21 cm x 36.2 cm x 4.25 cm |
| Weight | 3.5 kg |
| Power Supply | Internal, 100–240V AC, 50/60 Hz |
| Management Protocols | SNMP v1/v2c/v3, RMON, Telnet, CLI, HTTP/HTTPS, SSH, TFTP |
| Routing Protocols | Static IPv4/IPv6, RIP, RIP-2, IGMP, MLD |
| Security Features | 802.1x, RADIUS, Access Control Lists, Guest VLAN, DAI |
| Certifications | FCC Class A, UL, RoHS, VCCI Class A, EN55024, etc. |
| Software | AlliedWare Plus |
