Description

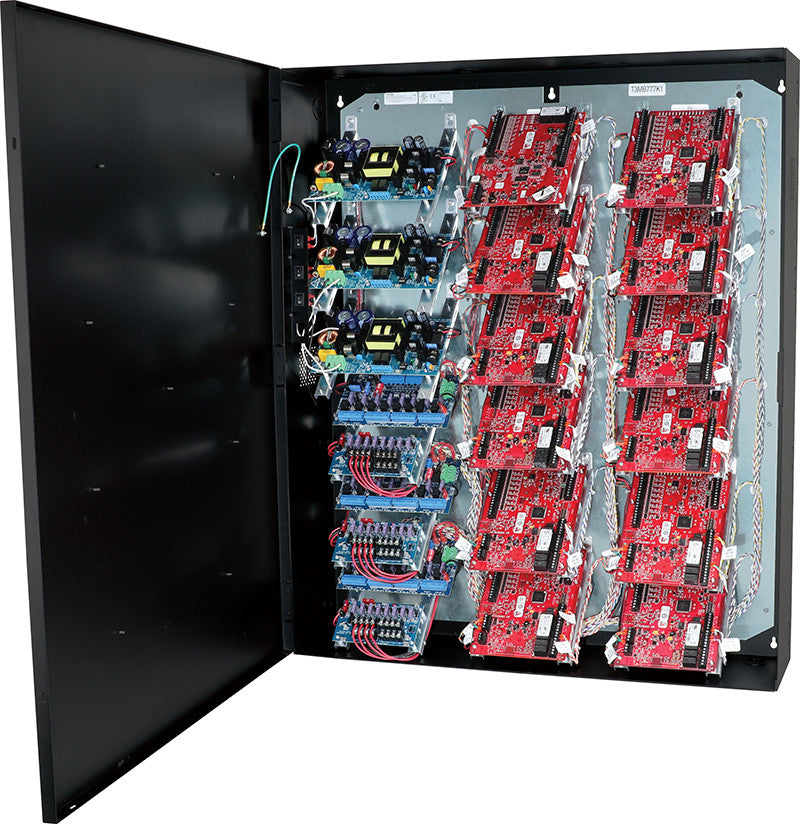

The Altronix T3MB755K1D is a pre-wired, factory-configured access and power integration kit designed for seamless compatibility with Mercury controllers. Ideal for enterprise-grade access control systems, this solution integrates Altronix power supply/chargers and sub-assemblies with built-in wire management and terminal blocks to simplify installation and ensure reliable performance.
Supporting up to 24 doors, the T3MB755K1D includes all necessary wiring harnesses, power components, and distribution modules to provide both 12VDC and 24VDC outputs for controllers and locking devices. The kit accommodates one (1) Mercury LP1502/LP4502 Intelligent Dual Reader Controller and eleven (11) MR52 Dual Reader Interface Modules.
With dual power redundancy, built-in battery charging, LED supervision indicators, and CE/UL compliance, the T3MB755K1D delivers a robust, turnkey power and access integration platform for high-security applications.
Compatible Mercury partner systems include AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, Open Options, Panasonic i-PRO MonitorCast, RS2, Schneider Electric, and Vanderbilt.
| Category | Specification |
|---|---|
| Model | Altronix T3MB755K1D (Pre-wired Kit) |
| Application | Access and Power Integration Solution for Mercury Controllers |
| Controller Support | 1 × LP1502/LP4502 Intelligent Dual Reader Controller, 11 × MR52 Dual Reader Interface Modules |
| Included Components | (1) eFlow104NB, (2) eFlow102NB, (3) ACMS8CB, (3) PDS8CB, wire harnesses, and wire management |
| Power Supply #1 (eFlow104NB) | Input: 120VAC 60Hz, 4.5A; Output: 24VDC @10A; Auxiliary: 1A (unswitched); Overvoltage protected |
| Power Supplies #2–3 (eFlow102NB) | Input: 120VAC 60Hz, 3.5A; Output: 12VDC @10A; Auxiliary: 1A (unswitched); Overvoltage protected |
| Battery Support | Sealed lead acid or gel type; up to 40AH/65AH (external enclosure); supports four (4) 12VDC/12AH batteries |
| Failover | Instantaneous transfer to stand-by batteries on AC loss |
| Fire Alarm Disconnect | Supervised latching/non-latching with 10K EOL resistor |
| Supervision | AC Fail, Battery Presence, Low Battery, Low Power Shutdown |
| Indicators (LEDs) | AC Input, DC Output, Battery Status, 12V/24VDC output color indicators |
| Distribution Modules (PDS8CB) | Eight (8) selectable 12VDC or 24VDC outputs, individually fused (2.5A) |
| Access Power Controllers (ACMS8CB) | Eight (8) individually controlled 12V/24VDC outputs or Form “C” relays; Fail-Safe/Fail-Secure modes |
| Enclosure Dimensions (H × W × D) | 36.12″ × 30.125″ × 7.06″ (917.5 × 768.1 × 179.3 mm) |
| Shipping Dimensions | 40.75″ × 35.25″ × 12″ (1035 × 895 × 305 mm) |
| Product Weight | 85.6 lb (42.27 kg) |
| Shipping Weight | 106.4 lb (48.26 kg) |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Storage Temperature | −20°C to 70°C (−4°F to 158°F) |
| Relative Humidity | 85% ±5% |
| BTU/Hr. (Approx.) | 433 BTU/Hr |
| Agency Approvals | CE, UL Listed Sub-Assemblies |
| Material | 16 AWG galvanized steel backplane |
| Warranty | Lifetime Warranty |
