Description

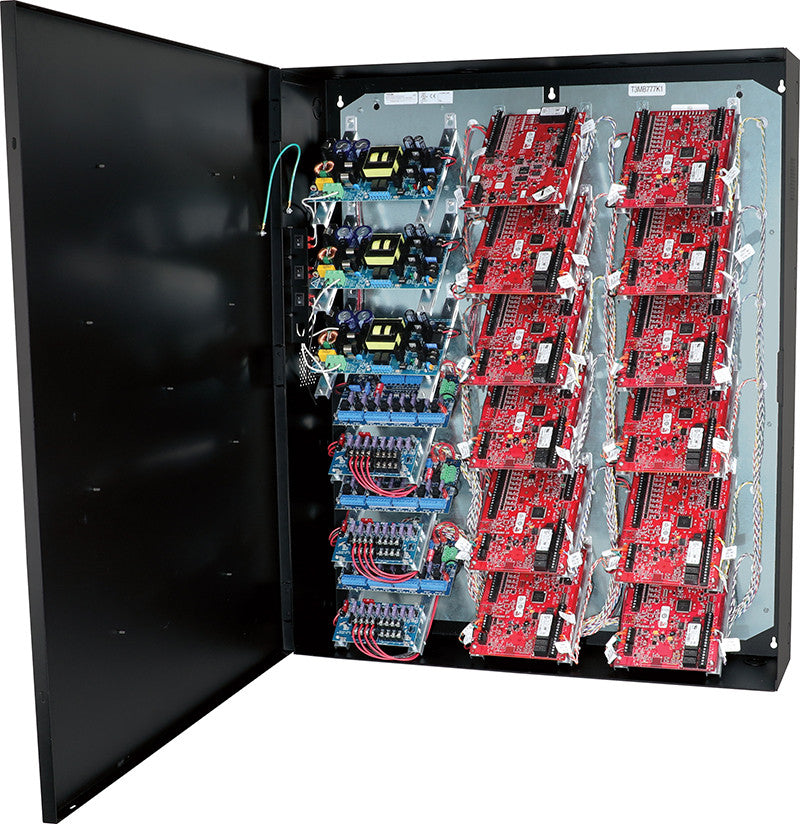

The Altronix T3MB777K1D is a factory pre-wired 24-door access and power integration solution designed for seamless compatibility with Mercury controllers. This comprehensive kit combines Altronix’s proven power and sub-assembly components—including power supplies, distribution modules, and access controllers—into a unified enclosure that simplifies installation, reduces labor time, and enhances reliability.
The T3MB777K1D accommodates one (1) Intelligent Dual Reader Controller (LP1502/LP4502) and eleven (11) Dual Reader Interface Modules (MR52), providing ample power and connectivity to support large-scale Mercury-based access control systems. Built for flexibility and safety, it includes pre-configured terminal blocks, integrated wire management, and multiple supervisory features such as AC Fail, Battery Presence, and Low Power Shutdown.
This UL-listed and CE-certified solution provides robust performance, ensuring continuous operation even during power loss via its built-in battery backup and instantaneous failover. Ideal for enterprise-level security environments, the T3MB777K1D supports numerous Mercury partners, including Genetec, Lenel/S2, Avigilon, Johnson Controls, Panasonic i-PRO, and Open Options.
| Category | Specification |
|---|---|
| Model | Altronix T3MB777K1D |
| Type | Pre-wired Access and Power Integration Kit |
| Supported Controllers | 1x LP1502/LP4502 Intelligent Controller, 11x MR52 Interface Modules |
| Included Components | (3) eFlow104NB Power Supplies, (3) ACMS8CB Access Power Controllers, (3) PDS8CB Power Distribution Modules, Custom Wire Harnesses, Wire Management |
| Power Supply Input | 120VAC, 60Hz, 13.5A Max |
| Power Supply Output | 24VDC @ 10A, 1A Auxiliary (unswitched) |
| Battery Backup | Supports up to 4x 12VDC/12AH sealed lead acid or gel batteries |
| Supervision Features | AC Fail, Low Battery, Battery Presence, Low Power Shutdown |
| Protection | Overvoltage, Filtered and Regulated Output, PTC Protected Circuits |
| Indicators (LEDs) | AC Input, DC Output, Battery Status, Output Activity |
| Fire Alarm Interface | Supervised Latching/Non-Latching, 10KΩ EOL Resistor |
| Environmental | Operating: 0°C–49°C (32°F–120°F); Storage: -20°C–70°C (-4°F–158°F); Humidity: 85% ±5% |
| Physical Dimensions | 36.12" H × 30.125" W × 7.06" D (917.5mm × 768.1mm × 179.3mm) |
| Shipping Dimensions | 40.75" × 35.25" × 12" (1035.1mm × 895.4mm × 304.8mm) |
| Weight | Product: 85.6 lb (42.27 kg); Shipping: 106.4 lb (48.26 kg) |
| Certifications | CE, UL Listed Sub-Assemblies |
| Warranty | Lifetime Warranty |
| Compatible Mercury Partners | AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt |
