Description

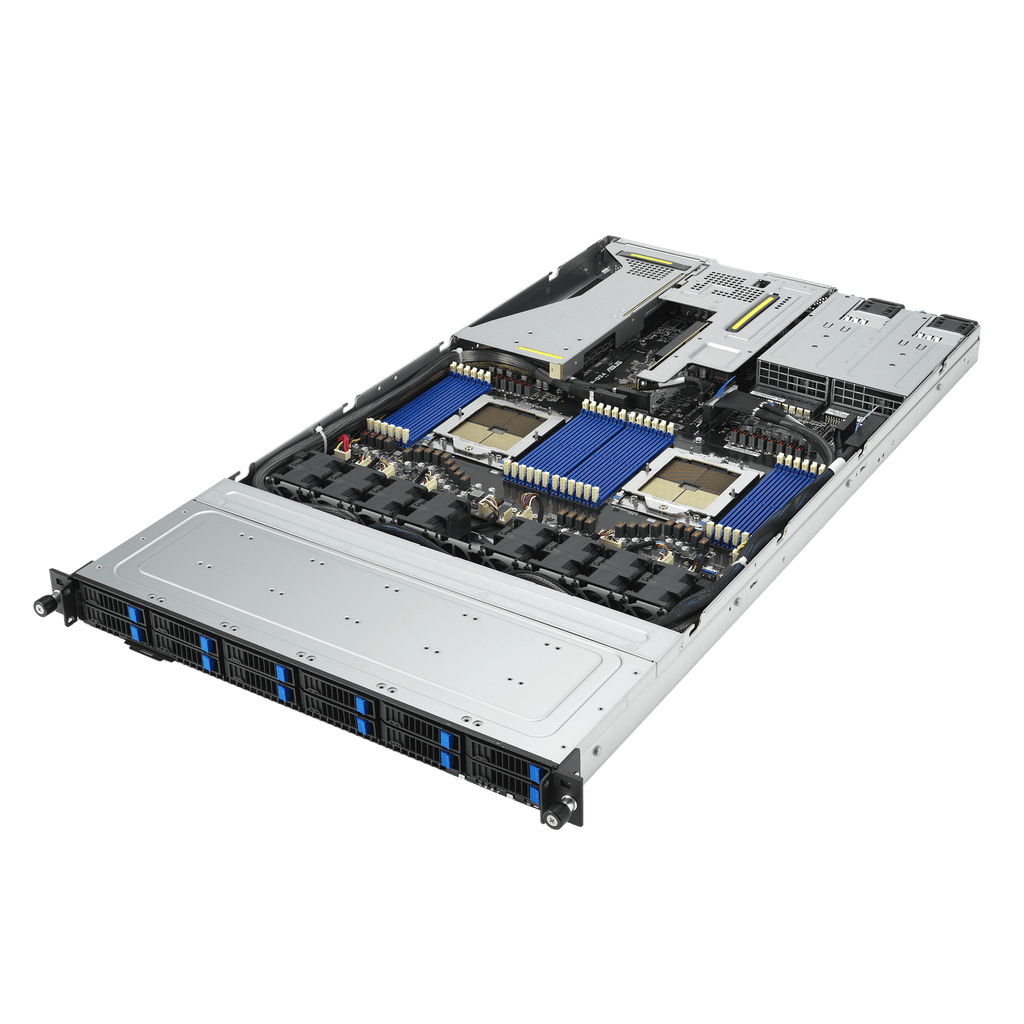

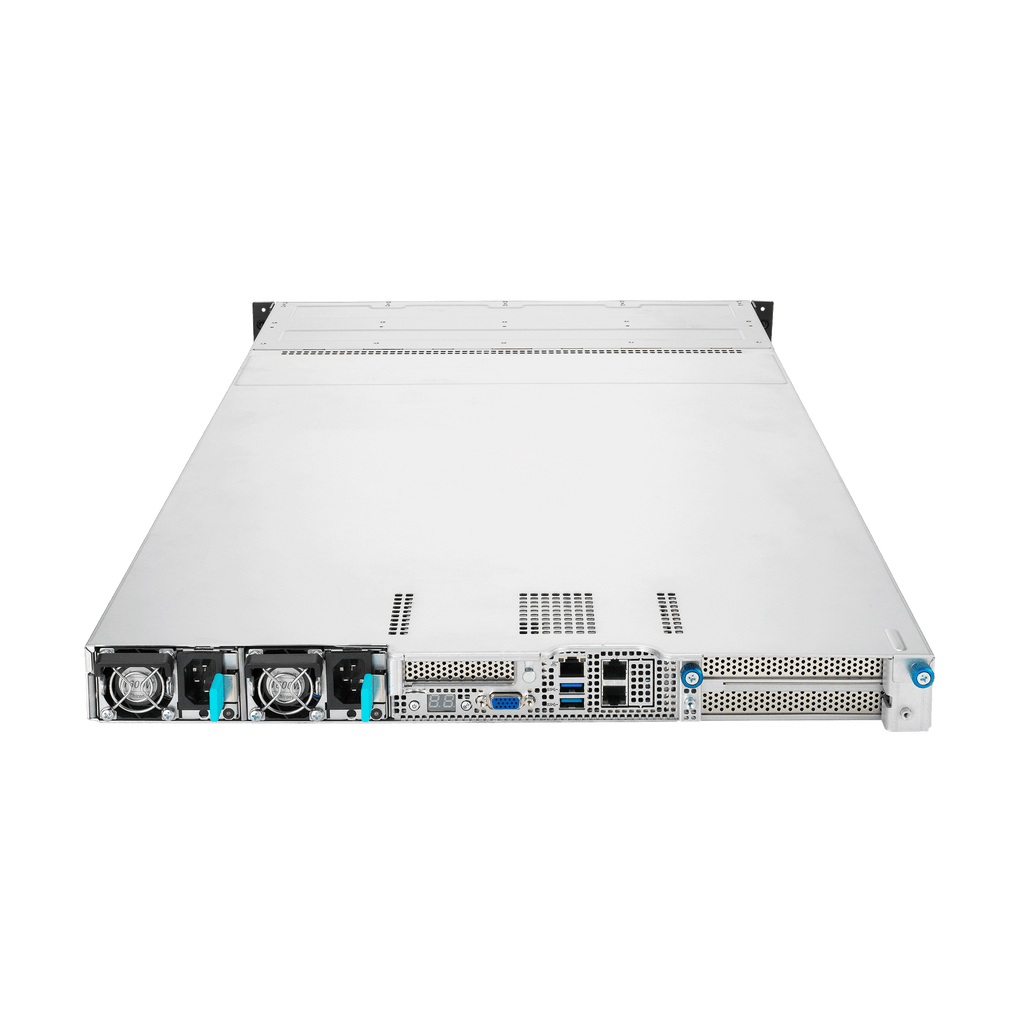

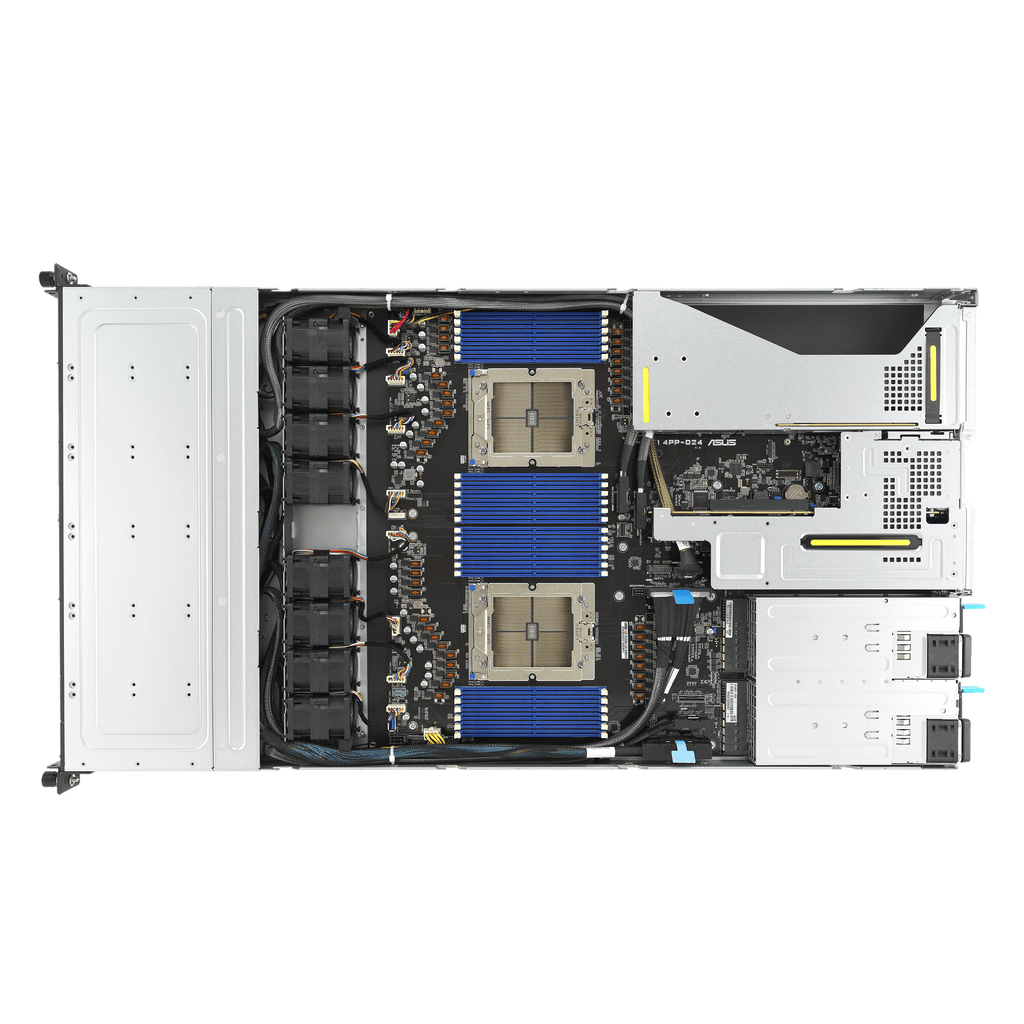

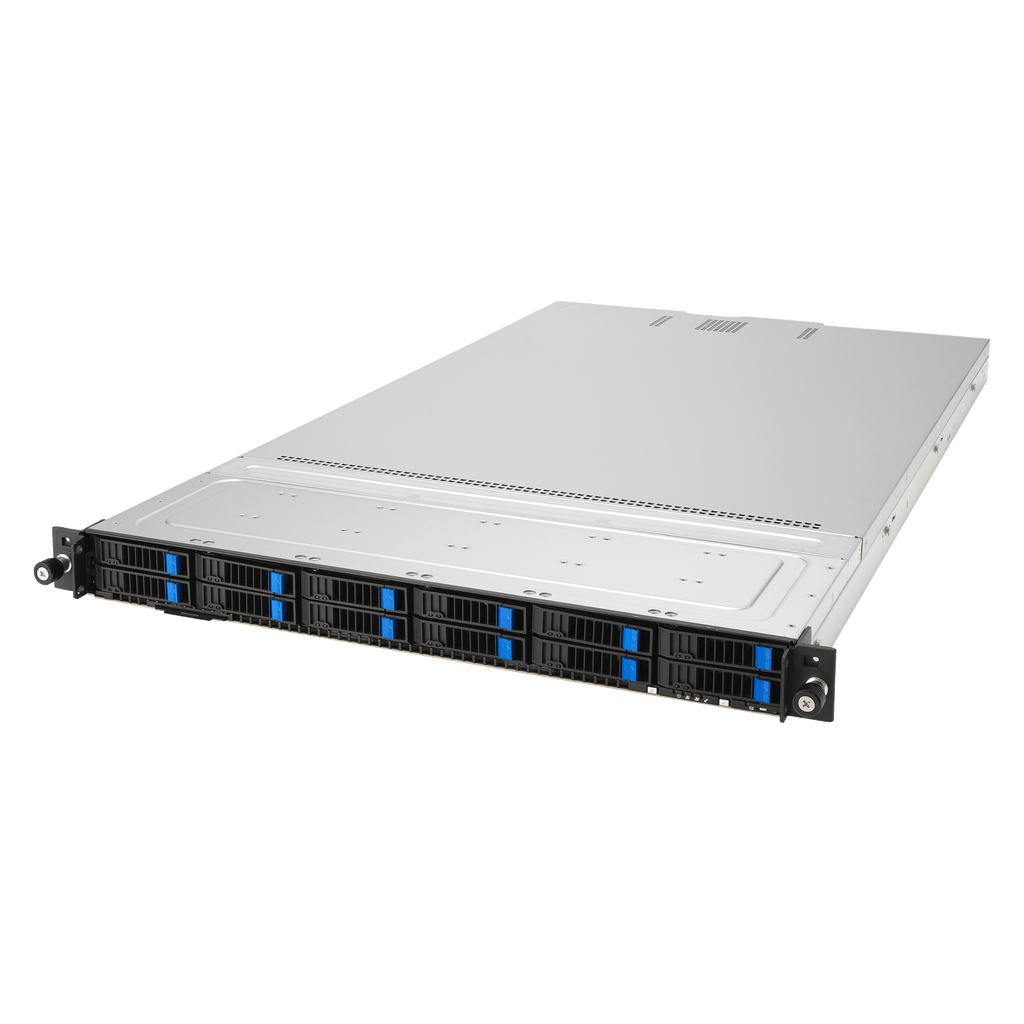

The ASUS RS700A-E12-RS12U-16W10G is a next-generation 1U dual-socket rack server designed for performance-driven workloads across cloud, virtualization, and enterprise storage environments. Powered by 4th Gen AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ technology, it delivers exceptional computing power and energy efficiency in a compact form factor.
Supporting up to 24 DDR5 DIMMs for ultra-fast memory bandwidth and PCIe 5.0 slots for cutting-edge expansion, the RS700A-E12-RS12U provides outstanding throughput for GPU, FPGA, and accelerator cards. It features 12 hot-swap 2.5-inch bays for high-performance NVMe, SATA, or SAS storage and includes redundant 1600–2600 W 80 PLUS Platinum/Titanium power supplies for superior reliability.
The system integrates ASUS ASMB11-iKVM for full remote management, PFR FPGA platform root of trust for enhanced security, and optimized thermal architecture ensuring stable operation even under demanding workloads. Engineered for maximum scalability, reliability, and flexibility, the RS700A-E12-RS12U is ideal for HPC, data center, and hybrid cloud deployments.
| Category | Specification |
|---|---|
| Processor Support | 2 × Socket SP5 (LGA 6096), AMD EPYC™ 9004 Series (Up to 400 W TDP) with AMD 3D V-Cache™ |
| Chipset | Integrated I/O (No chipset) |
| Memory | 24 × DDR5 4800/4400 RDIMM / LRDIMM / LRDIMM 3DS slots (12 channels per CPU) |
| Max Memory Capacity | Up to 6144 GB |
| Expansion Slots | 3 × PCIe Gen 5 slots + 1 × internal RAID slot:• 1 × PCIe Gen 5 x16 (FHFL)• 1 × PCIe Gen 5 x16 or OCP 3.0 (FHFL)• 1 × PCIe Gen 5 x16 (LP)• 1 × PCIe Gen 4 x8 (LP, internal) |
| Storage Bays | 12 × 2.5” hot-swap bays (up to NVMe / SATA / SAS*) 2 × M.2 (up to 2280) from CPU1 *RAID card required for SAS drives |
| Storage Controllers | 8 × SATA 6 Gb/s ports; Optional Broadcom HBA/RAID cards: 9500-16i, 9540-8i, 9560-16i |
| Networking | 1 × Quad Port Intel I350-AM4 1G LAN Controller or 1 × Dual Port Intel X710-AT2 10G LAN Controller or None + 1 × Dedicated Mgmt Port |
| Graphics | Aspeed AST2600 (64 MB VRAM) |
| I/O Ports | Rear: 2 × USB 3.1 Gen1, 1 × VGA, 1 × Mgmt LAN, 2 × 10G or 4 × 1G LAN (optional), 1 × OCP 3.0 (optional) |
| Security | PFR FPGA Platform Root-of-Trust, TPM 2.0 |
| Management | ASUS Control Center (Classic), ASMB11-iKVM for KVM-over-IP |
| Cooling | Enhanced Volume Air Cooling (EVAC) Heatsink, Dedicated GPU Fan, 8 × Easy-maintained Fans |
| Power Supply | 1 + 1 Redundant 2600 W / 1600 W 80 PLUS Titanium Hot-swap PSU or 1 + 1 Redundant 2000 W / 1600 W 80 PLUS Platinum Hot-swap PSU |
| Operating System Support | Windows Server 2019, RHEL, SLES, CentOS, Ubuntu, VMware |
| Dimensions (W × D × H) | 449 × 842.5 × 43.85 mm (17.68” × 33.17” × 1.73”) — 1U |
| Weight | Net: 14.94 kg Gross: 19.94 kg |
| Operating Temperature | 10 °C – 35 °C (non-operating: -40 °C – 60 °C) |
| Regulatory Compliance | BSMI, CE, CB, FCC (Class A), ENERGY STAR® Computer Servers v4.0 |
