Description

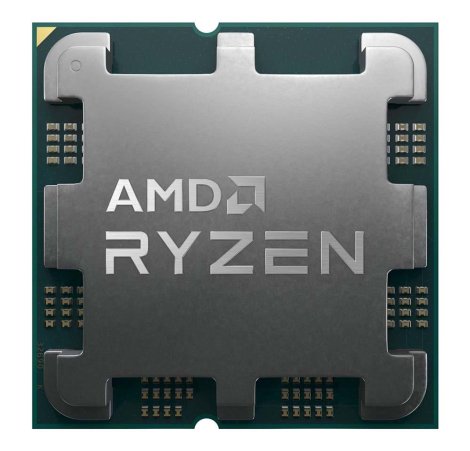

The AMD Ryzen™ 5 7500F is a high-performance desktop processor built on the Zen 4 architecture, delivering responsive performance for gaming, productivity, and demanding desktop applications. Featuring 6 CPU cores and 12 threads, the Ryzen 5 7500F operates at a 3.7 GHz base clock and can boost up to 5.0 GHz with AMD Precision Boost 2 technology.
Designed for the AM5 platform, the processor supports DDR5 memory and PCIe 5.0, providing a modern foundation for high-speed storage, graphics, and system expansion. It includes 32 MB of L3 cache, supports up to 128 GB of DDR5 memory, and features AMD EXPO™ Technology for optimized memory overclocking.
With an efficient 65W TDP, unlocked overclocking support, Precision Boost Overdrive, Curve Optimizer, and AMD Ryzen™ Master compatibility, the Ryzen 5 7500F offers flexibility for enthusiasts looking to tune system performance. An AMD Wraith Stealth cooler is included for a complete processor and cooling solution.
The Ryzen 5 7500F requires a discrete graphics card, making it ideal for desktop systems built around dedicated GPU performance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen™ 5 7500F |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| CPU Cores | 6 |
| Threads | 12 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.7 GHz |
| Max Boost Clock | Up to 5.0 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Included Thermal Solution | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Operating System Support | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Connectivity & Memory
| Specification | Details |
|---|---|
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 1 |
| Native SATA Ports | 0 |
| PCI Express Version | PCIe® 5.0 |
| Native PCIe Lanes | 28 Total / 24 Usable |
| X670E Additional PCIe Lanes | 12x Gen4 |
| X670 Additional PCIe Lanes | 12x Gen4 |
| B650E Additional PCIe Lanes | 8x Gen4 |
| B650 Additional PCIe Lanes | 8x Gen4 |
| A620 Additional PCIe Lanes | 4x Gen3 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Maximum Memory | 128 GB |
| Memory Subtype | UDIMM |
| Maximum Memory Speed – 2x1R | DDR5-5200 |
| Maximum Memory Speed – 2x2R | DDR5-5200 |
| Maximum Memory Speed – 4x1R | DDR5-3600 |
| Maximum Memory Speed – 4x2R | DDR5-3600 |
| ECC Support | Yes, requires motherboard support |
Graphics & Technologies
| Specification | Details |
|---|---|
| Graphics Model | Discrete Graphics Card Required |
| Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
