Description

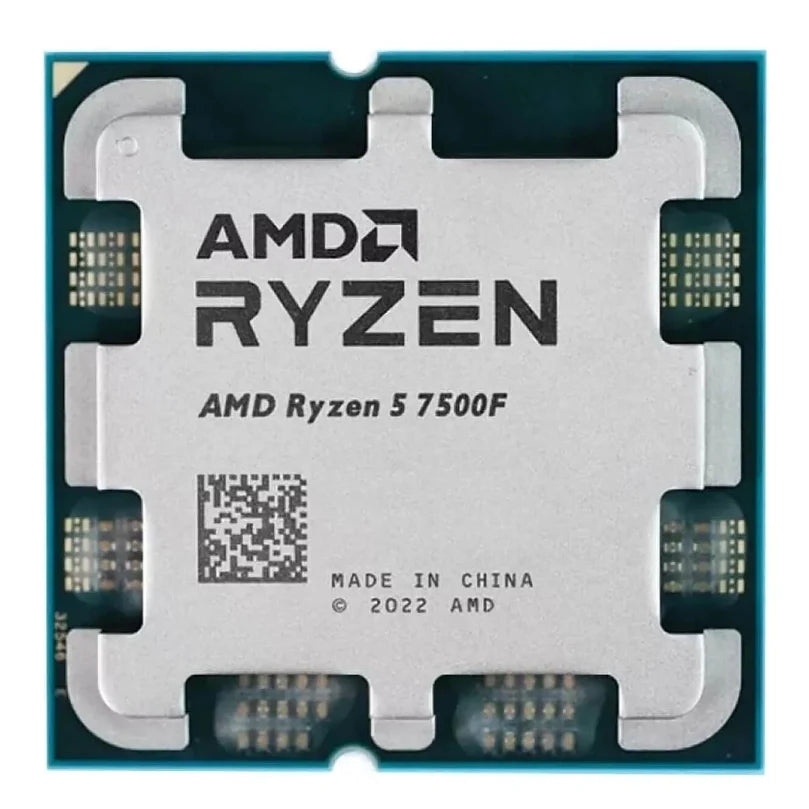

The AMD Ryzen 5 7500F Desktop Processor delivers responsive performance for gaming, productivity, and enthusiast desktop systems. Built on AMD’s Zen 4 architecture, this processor features 6 CPU cores and 12 threads, a 3.7GHz base clock, and boost speeds of up to 5.0GHz.
Designed for the Socket AM5 platform, the Ryzen 5 7500F supports DDR5 memory and PCI Express 5.0, providing a modern foundation for high-performance desktop builds. It includes 32MB of L3 cache, supports AMD EXPO™ memory overclocking technology, Precision Boost Overdrive, and Ryzen™ Master, and operates at a default 65W TDP.
The Ryzen 5 7500F does not include integrated graphics, so a discrete graphics card is required. An AMD Wraith Stealth thermal solution is included with the MPK configuration.
Key Features
- AMD Ryzen™ 5 desktop processor
- 6 cores and 12 processing threads
- Zen 4 architecture
- 3.7GHz base clock
- Up to 5.0GHz maximum boost clock
- 32MB L3 cache
- 6MB L2 cache
- Socket AM5
- 65W default TDP
- DDR5 memory support
- PCI Express® 5.0 support
- AMD EXPO™ Technology
- Precision Boost Overdrive
- Unlocked for overclocking
- AMD Ryzen™ Master support
- Discrete graphics card required
- AMD Wraith Stealth thermal solution
Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 5 Desktop Processors |
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Architecture | Zen 4 |
| Former Codename | Raphael AM5 |
| CPU Cores | 6 |
| Threads | 12 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.7GHz |
| Max. Boost Clock | Up to 5.0GHz |
| L1 Cache | 384KB |
| L2 Cache | 6MB |
| L3 Cache | 32MB |
| Default TDP | 65W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| CPU Socket | AM5 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Thermal Solution | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
Chipset Compatibility
| Specification | Details |
|---|---|
| Supporting Chipsets | A620, X670E, X670, B650E, B650 |
Memory Specifications
| Specification | Details |
|---|---|
| System Memory Type | DDR5 |
| System Memory Subtype | UDIMM |
| Memory Channels | 2 |
| Maximum Memory | 128GB |
| 2x1R Maximum Speed | DDR5-5200 |
| 2x2R Maximum Speed | DDR5-5200 |
| 4x1R Maximum Speed | DDR5-3600 |
| 4x2R Maximum Speed | DDR5-3600 |
| ECC Support | Yes, requires motherboard support |
Connectivity
| Specification | Details |
|---|---|
| PCI Express® Version | PCIe 5.0 |
| Native PCIe® Lanes | 28 Total / 24 Usable |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
Graphics Capabilities
| Specification | Details |
|---|---|
| Integrated Graphics | No |
| Graphics Requirement | Discrete Graphics Card Required |
Supported Technologies
| Specification | Details |
|---|---|
| Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
Operating System Support
| Specification | Details |
|---|---|
| Windows | Windows 11 64-Bit, Windows 10 64-Bit |
| Linux | RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Note | Operating system support may vary by manufacturer. |
