Description

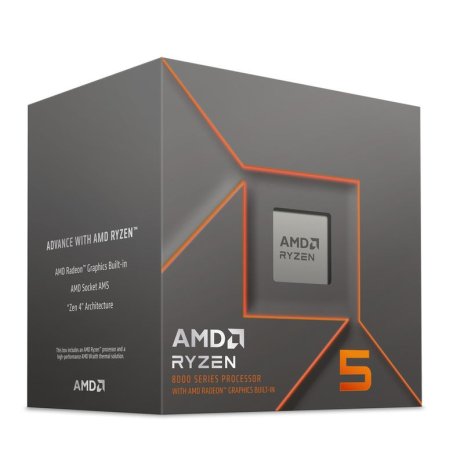

The AMD Ryzen 5 8500G is a versatile desktop processor designed for responsive computing, productivity, entertainment, and mainstream PC builds. Featuring a hybrid Zen 4 and Zen 4c architecture, it delivers 6 CPU cores, 12 processing threads, and boost speeds up to 5.0 GHz while operating at a default 65W TDP.
Integrated AMD Radeon 740M graphics provide capable onboard graphics without requiring a discrete graphics card for everyday workloads and supported multimedia applications. The processor supports DDR5 memory, PCIe 4.0, AMD EXPO memory overclocking, Precision Boost 2, Precision Boost Overdrive, and AMD Ryzen Master for a modern and flexible AM5 desktop platform.
With support for up to four displays, DisplayPort 2.1, HDMI 2.1, AV1 encode/decode capabilities, AMD FreeSync, and SmartAccess Memory, the Ryzen 5 8500G provides a strong foundation for multimedia and productivity-focused systems. This MPK package includes an AMD Wraith Stealth Cooler for a complete processor cooling solution.
Technical Specifications
| Specification | Details |
|---|---|
| Mfr Part # | 100-100000931MPK |
| Brand | AMD |
| Processor Name | AMD Ryzen 5 8500G |
| Family | Ryzen |
| Series | Ryzen 8000 Series |
| Form Factor | Desktop |
| Former Codename | Phoenix |
| Processor Architecture | 2x Zen 4, 4x Zen 4c |
| CPU Cores | 6 |
| Threads | 12 |
| Multithreading (SMT) | Yes |
| Max Boost Clock | Up to 5.0 GHz |
| Max Zen 4c Clock | Up to 3.7 GHz |
| Base Clock | 3.5 GHz |
| Zen 4 Base Clock | 4.1 GHz |
| Zen 4c Base Clock | 3.3 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| Configurable TDP (cTDP) | 45–65W |
| Processor Technology | TSMC 4nm FinFET |
| CPU Compute Die Size | 137 mm² |
| Package Die Count | 1 |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 4 (40Gbps) | 2 |
| Native USB 3.2 Gen 2 (10Gbps) | 2 |
| Native USB 2.0 (480Mbps) | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total / Usable) | 14 / 10 |
| NVMe Support | Boot, RAID 0, RAID 1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Maximum DDR5 Memory | 96 GB |
| Maximum LPDDR5 Memory | 64 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed – 2x1R | DDR5-5200 |
| Max Memory Speed – 2x2R | DDR5-5200 |
| Max Memory Speed – 4x1R | DDR5-3600 |
| Max Memory Speed – 4x2R | DDR5-3600 |
| ECC Support | Yes, requires platform support |
| Integrated Graphics | AMD Radeon 740M |
| Graphics Core Count | 4 |
| Graphics Frequency | 2800 MHz |
| DirectX Version | DirectX 12 |
| DisplayPort Version | DisplayPort 2.1 |
| DisplayPort Extensions | Adaptive-Sync, HDR Metadata, UHBR10 |
| HDMI Version | HDMI 2.1 |
| HDCP Support | HDCP 2.3 |
| USB Type-C DisplayPort Alt Mode | Yes |
| Multi-Monitor Support | Yes |
| Maximum Displays | 4 |
| AMD FreeSync | Yes |
| Wireless Display | Miracast |
| AMD SmartAccess Memory | Available |
| Security | AMD Enhanced Virus Protection (NX Bit) |
| Included Cooler | AMD Wraith Stealth Cooler |
