Description

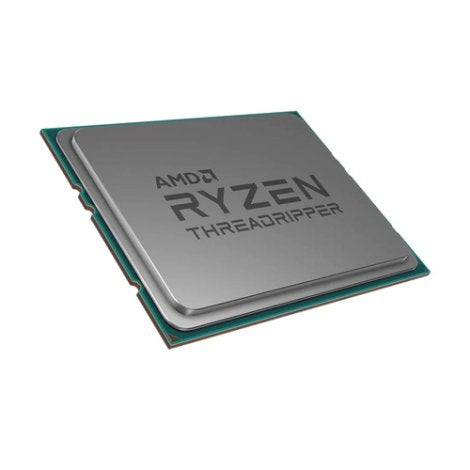

The AMD Ryzen Threadripper 7960X is a high-performance 24-core, 48-thread desktop processor built for demanding professional workloads, content creation, engineering, rendering, and enthusiast computing. Powered by AMD Zen 4 architecture and advanced 5nm process technology, it delivers a 4.2GHz base clock with boost speeds up to 5.3GHz for fast, responsive performance across heavily threaded applications.
With 128MB of L3 cache, quad-channel DDR5 RDIMM memory support, PCIe 5.0 connectivity, and 88 usable native PCIe lanes, the Ryzen Threadripper 7960X provides the bandwidth and expansion capabilities required for high-performance GPUs, NVMe storage, and professional workstation hardware. ECC memory support further enhances reliability for data-intensive workloads.
The processor uses the AMD sTR5 socket and TRX50 chipset platform and includes support for AMD EXPO technology, Precision Boost 2, Precision Boost Overdrive, Curve Optimizer, and unlocked overclocking. Advanced virtualization and security technologies such as AMD Secure Processor, AMD-V, Secure Boot, Firmware TPM, and AES-NI help provide a robust foundation for modern workstation environments.
This retail-pack processor has a 350W default TDP and does not include a thermal solution. A discrete graphics card and compatible cooling solution are required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen Threadripper 7960X |
| Processor Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 7000 Series |
| Form Factor | Desktop |
| Market Segment | Enthusiast Desktop |
| Former Codename | Storm Peak |
| Processor Architecture | Zen 4 |
| CPU Cores | 24 |
| Threads | 48 |
| Multithreading (SMT) | Yes |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 1536 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 5 |
| CPU Socket | sTR5 |
| Supporting Chipset | TRX50 |
| Unlocked for Overclocking | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 92 Total / 88 Usable |
| Native USB 3.2 Gen 2 Ports | 4 |
| Native SATA Ports | 2 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Subtype | RDIMM |
| Memory Channels | 4 |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | No |
| Graphics Requirement | Discrete Graphics Card Required |
| Thermal Solution | Not Included |
| Maximum Operating Temperature | 95°C |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection | Yes |
| OS Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Supported Technologies | AMD EXPO Technology, AMD Ryzen Technologies |
