Description

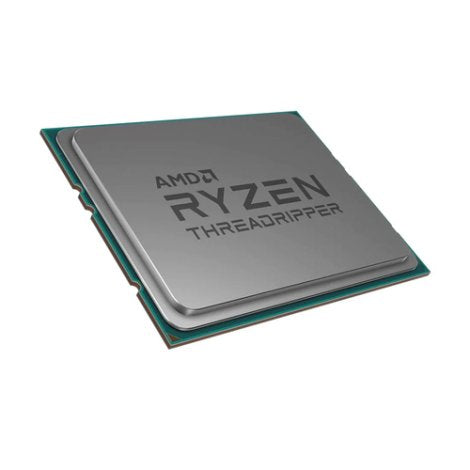

The AMD Ryzen Threadripper 7970X is a high-performance 32-core, 64-thread desktop processor designed for demanding workstation-class workloads, intensive multitasking, content creation, rendering, development, and enthusiast computing. Built on AMD’s Zen 4 architecture and advanced 5nm process technology, it delivers a 4.0 GHz base clock with boost speeds of up to 5.3 GHz.
With 32MB of L2 cache and 128MB of L3 cache, the Threadripper 7970X provides fast access to frequently used data and strong performance across complex, highly threaded applications. The processor supports the sTR5 socket and TRX50 chipset, along with PCIe 5.0 connectivity and quad-channel DDR5 RDIMM memory.
The Ryzen Threadripper 7970X is unlocked for overclocking and supports AMD EXPO Technology, Precision Boost 2, Precision Boost Overdrive, and Curve Optimizer. ECC memory support and a broad suite of AMD security and virtualization technologies make it suitable for powerful professional and enthusiast desktop systems.
A discrete graphics card and compatible thermal solution are required.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer Part Number | 100-100001351WOF |
| Brand | AMD |
| Product Name | AMD Ryzen Threadripper 7970X |
| Processor Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 7000 Series |
| Form Factor | Desktop |
| Market Segment | Enthusiast Desktop |
| Former Codename | Storm Peak |
| Processor Architecture | Zen 4 |
| CPU Cores | 32 |
| Threads | 64 |
| Multithreading (SMT) | Yes |
| Base Clock | 4.0 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 2048 KB |
| L2 Cache | 32 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 5 |
| CPU Socket | sTR5 |
| Supporting Chipset | TRX50 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution | Not Included |
| Maximum Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 92 Total / 88 Usable |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Subtype | RDIMM |
| Memory Channels | 4 |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | No |
| Graphics Requirement | Discrete Graphics Card Required |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Guest Mode Execution Trap (GMET) | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Supported Technologies | AMD EXPO Technology, AMD Ryzen Technologies |
