Description

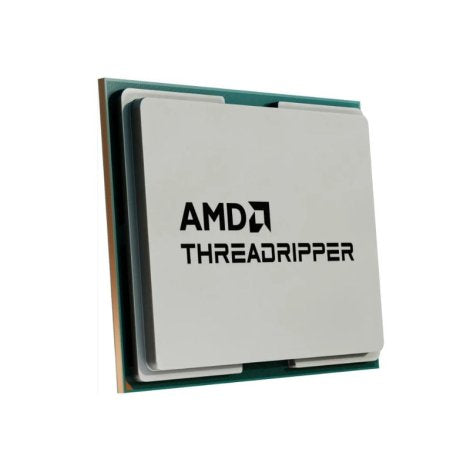

Power demanding professional workloads with the AMD Ryzen Threadripper 7980X, a high-performance 64-core, 128-thread workstation processor built on AMD’s Zen 4 architecture. Designed for creators, engineers, developers, and professionals handling heavily threaded workloads, the Threadripper 7980X combines exceptional multi-core processing capability with boost speeds of up to 5.1 GHz.
Built using advanced TSMC 5nm FinFET technology, the processor features a massive 256MB L3 cache, four-channel DDR5 RDIMM memory support, ECC capability, and PCIe 5.0 connectivity for high-speed storage, accelerators, and professional graphics solutions.
The sTR5-based Threadripper platform provides up to 88 usable native PCIe lanes, making it ideal for sophisticated workstation configurations requiring multiple GPUs, NVMe storage devices, networking adapters, or specialized expansion hardware. Support for AMD EXPO technology, Precision Boost 2, Precision Boost Overdrive, and unlocked overclocking provides additional flexibility for performance-focused systems.
With a 350W default TDP and support for the TRX50 chipset, the Ryzen Threadripper 7980X is engineered for high-end desktop workstations tackling 3D rendering, simulation, software compilation, AI development, content creation, and other compute-intensive professional applications.
Note: Thermal solution is not included. A discrete graphics card is required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen Threadripper 7980X |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 7000 Series |
| Form Factor | Desktop |
| Market Segment | Enthusiast Desktop |
| Former Codename | Storm Peak |
| Processor Architecture | Zen 4 |
| CPU Cores | 64 |
| Threads | 128 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.2 GHz |
| Max Boost Clock | Up to 5.1 GHz |
| L1 Cache | 4096 KB |
| L2 Cache | 64 MB |
| L3 Cache | 256 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die Size | 71 mm² |
| I/O Die Size | 388 mm² |
| Package Die Count | 9 |
| CPU Socket | sTR5 |
| Supporting Chipset | TRX50 |
| Unlocked for Overclocking | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution | Not Included |
| Max Operating Temperature (Tjmax) | 95°C |
| Operating System Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 92 Total / 88 Usable |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Subtype | RDIMM |
| Memory Channels | 4 |
| Memory Specification | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | None |
| Graphics Requirement | Discrete Graphics Card Required |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi / I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Supported Technologies | AMD EXPO Technology, AMD Ryzen Technologies |
