Description

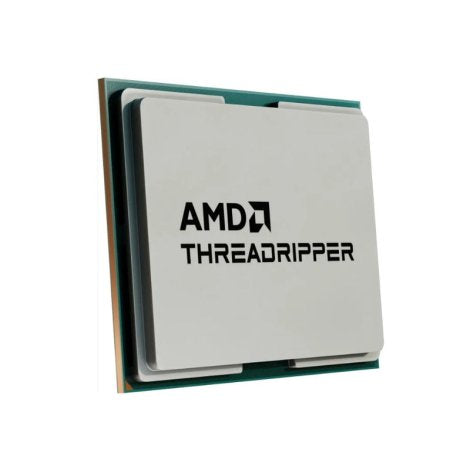

Power demanding professional workloads with the AMD Ryzen Threadripper PRO 7955WX, a 16-core, 32-thread workstation processor built on AMD’s advanced Zen 4 architecture. With a 4.5 GHz base clock and boost speeds of up to 5.3 GHz, the 7955WX delivers responsive, high-performance computing for content creation, engineering, development, virtualization, and other data-intensive applications.
Designed for the sTR5 platform, the Threadripper PRO 7955WX supports 8-channel DDR5 ECC RDIMM memory and extensive PCIe 5.0 connectivity, providing the bandwidth required for professional GPUs, high-speed storage, networking, and expansion hardware. Its 16 MB L2 and 64 MB L3 cache help maintain efficient performance across complex multitasking workloads.
Built with AMD PRO technologies, the processor provides enterprise-focused manageability, security, and reliability features. Support for AMD Memory Guard, AMD Secure Processor, virtualization technologies, Secure Boot, and firmware TPM makes it well suited for modern professional workstation deployments.
The processor is unlocked for overclocking and supports AMD EXPO technology, Precision Boost 2, Precision Boost Overdrive, and Curve Optimizer. A discrete graphics card and compatible cooling solution are required.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | AMD Ryzen Threadripper PRO 7955WX |
| Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Form Factor | Desktop |
| Market Segment | Professional Workstation |
| Processor Architecture | Zen 4 |
| Former Codename | Storm Peak |
| CPU Cores | 16 |
| Threads | 32 |
| Multithreading (SMT) | Yes |
| Base Clock | 4.5 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 1024 KB |
| L2 Cache | 16 MB |
| L3 Cache | 64 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 3 |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| AMD PRO Technologies | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 148 Total / 144 Usable / 128 PCIe 5.0 |
| Native USB 3.2 Gen 2 Ports | 4 |
| Native SATA Ports | 4 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Channels | 8 |
| Memory Subtype | RDIMM |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | No |
| Graphics Requirement | Discrete Graphics Card Required |
| Thermal Solution | Not Included |
| Maximum Operating Temperature | 95°C |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi / I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| OS Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Supported Technologies | AMD EXPO Technology, AMD PRO Technologies, AMD Ryzen Technologies |
| Package Type | OEM |
