Description

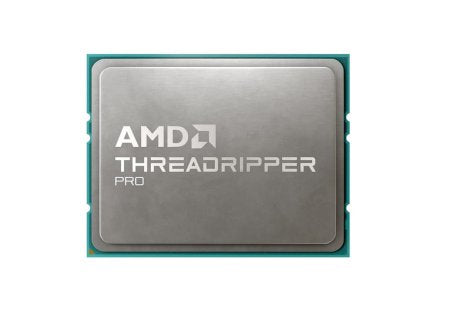

The AMD Ryzen Threadripper PRO 7965WX is a professional workstation processor built for demanding engineering, content creation, simulation, AI, and data-intensive workloads. Featuring 24 cores and 48 threads based on AMD’s Zen 4 architecture, it delivers a 4.2 GHz base clock with boost speeds of up to 5.3 GHz.
Designed for the sTR5 platform, the Threadripper PRO 7965WX supports WRX90 and TRX50 chipsets, PCIe 5.0 connectivity, and eight-channel DDR5 RDIMM memory with ECC support. Its combination of 24 MB L2 cache and 128 MB L3 cache helps maintain responsive performance across complex professional applications and heavily threaded workloads.
Built using TSMC 5nm processing technology, the processor supports AMD PRO technologies for enterprise-class manageability and security. Advanced features include Precision Boost 2, Precision Boost Overdrive, AMD EXPO technology, hardware virtualization, AMD Memory Guard, AMD Secure Processor, and extensive platform security capabilities.
With up to 128 usable PCIe 5.0 lanes, eight memory channels, and support for high-performance NVMe configurations, the Ryzen Threadripper PRO 7965WX is designed for expandable professional workstations requiring substantial compute, memory, storage, and accelerator bandwidth.
OEM processor only. Thermal solution is not included, and a discrete graphics card is required.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | AMD |
| Processor Name | AMD Ryzen Threadripper PRO 7965WX |
| Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Form Factor | Desktop |
| Processor Architecture | Zen 4 |
| CPU Cores | 24 |
| Threads | 48 |
| Multithreading (SMT) | Yes |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 1536 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 5 |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution | Not Included |
| Maximum Operating Temperature (Tjmax) | 95°C |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 4 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total / Usable / PCIe 5.0) | 148 / 144 / 128 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Channels | 8 |
| Memory Subtype | RDIMM |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, default enabled |
| Integrated Graphics | None – Discrete Graphics Card Required |
| AMD PRO Technologies | Yes |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi / I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Operating System Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Supported Technologies | AMD EXPO Technology, AMD PRO Technologies, AMD Ryzen Technologies |
| Package Type | OEM |
