Description

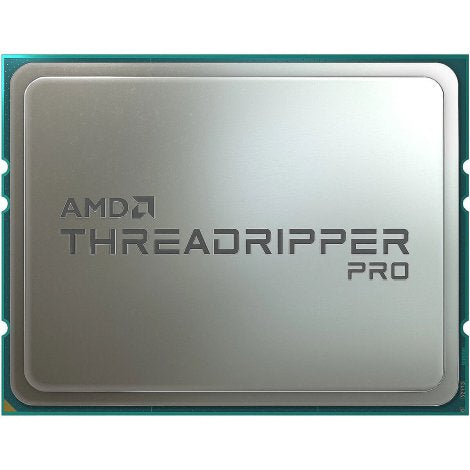

The AMD Ryzen Threadripper PRO 7965WX is a high-performance workstation processor built for demanding professional workloads, advanced content creation, engineering, data analysis, and compute-intensive applications. Featuring 24 cores and 48 threads, a 4.2 GHz base clock, and boost speeds of up to 5.3 GHz, it delivers powerful multitasking and responsive performance for modern workstation environments.
Built on the Zen 4 architecture using advanced TSMC 5nm FinFET CPU core technology, the Ryzen Threadripper PRO 7965WX includes 24 MB of L2 cache and 128 MB of L3 cache to help accelerate complex workloads. The processor supports 8-channel DDR5 RDIMM memory up to 5200 MT/s, ECC memory, and extensive PCIe 5.0 connectivity, providing the bandwidth required for professional GPUs, high-speed storage, networking, and expansion devices.
AMD PRO technologies provide enterprise-focused security, manageability, and reliability features, including AMD Memory Guard, AMD Secure Processor, virtualization-based security, Secure Boot, and firmware TPM. The processor uses the sTR5 socket and supports compatible WRX90 and TRX50 platforms.
With a 350W default TDP, unlocked overclocking support, AMD EXPO technology, Precision Boost Overdrive, and advanced workstation capabilities, the Ryzen Threadripper PRO 7965WX is designed for professionals who require exceptional compute performance and expansion flexibility.
Thermal solution is not included. A discrete graphics card is required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen Threadripper PRO 7965WX |
| Processor Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Form Factor | Desktop / Workstation |
| AMD PRO Technologies | Yes |
| Former Codename | Storm Peak |
| Processor Architecture | Zen 4 |
| CPU Cores | 24 |
| Threads | 48 |
| Multithreading (SMT) | Yes |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.3 GHz |
| L1 Cache | 1536 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 5 |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution | Not Included |
| Max Operating Temperature (Tjmax) | 95°C |
| Operating System Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 4 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total / Usable / PCIe 5.0) | 148 / 144 / 128 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Channels | 8 |
| System Memory Subtype | RDIMM |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | None |
| Graphics Requirement | Discrete Graphics Card Required |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Guest Mode Execution (GMET) Trap | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Supported Technologies | AMD EXPO Technology, AMD PRO Technologies, AMD Ryzen Technologies |
