Description

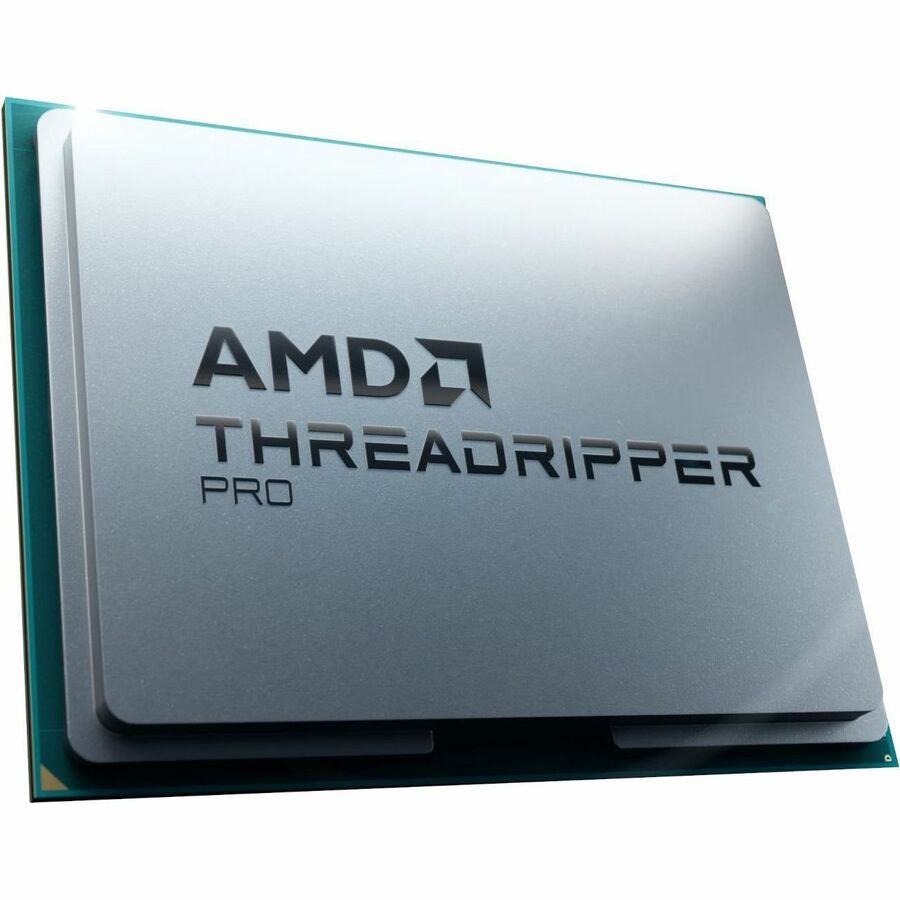

Power demanding professional workloads with the AMD Ryzen Threadripper PRO 7975WX Processor, a high-performance workstation CPU built on AMD’s 5 nm Zen 4 architecture. Featuring 32 cores and 64 threads, a 4.0 GHz base clock, and boost speeds up to 5.3 GHz, it delivers the processing power needed for intensive rendering, engineering, content creation, software development, simulation, and data analysis.
The Ryzen Threadripper PRO 7975WX provides 128 MB of L3 cache and supports up to 128 PCIe 5.0 lanes, enabling high-bandwidth connectivity for professional GPUs, storage, networking, and expansion devices. Its eight-channel DDR5 memory architecture supports ECC memory at speeds up to 5200 MT/s, providing the capacity, bandwidth, and reliability required for complex workstation applications.
Designed for enterprise and professional environments, the processor includes advanced AMD PRO security and management technologies such as AMD Memory Guard, AMD Secure Processor, AMD Shadow Stack, Platform Secure Boot, and AMD PRO Manageability. It also supports AMD EXPO memory overclocking and Precision Boost 2 for optimized system performance.
The processor uses the sTR5 socket and has a 350W TDP. A thermal solution is not included and must be purchased separately. A dedicated graphics card is also required.
Key Features
- 32 cores and 64 processing threads
- 4.0 GHz base clock
- Up to 5.3 GHz maximum boost clock
- 128 MB L3 cache
- AMD Zen 4 architecture
- 5 nm manufacturing process
- Socket sTR5 platform
- Up to 128 PCIe 5.0 lanes
- Eight-channel DDR5 memory support
- DDR5 speeds up to 5200 MT/s
- ECC memory support
- Precision Boost 2 technology
- AMD PRO security and manageability features
- AMD EXPO memory overclocking support
- Unlocked processor
- 350W TDP
- Thermal solution not included
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Product Line | Ryzen Threadripper PRO |
| Processor Model | Ryzen Threadripper PRO 7975WX |
| SKU / MPN | 100-100000453WOF |
| CPU Socket | sTR5 |
| Architecture | Zen 4 |
| Manufacturing Process | 5 nm |
| Number of Cores | 32 |
| Number of Threads | 64 |
| Base Clock Speed | 4.0 GHz |
| Maximum Boost Clock | Up to 5.3 GHz |
| L3 Cache | 128 MB |
| Unlocked | Yes |
| Maximum CPU Configuration | 1S |
| PCI Express Support | PCIe 5.0 |
| Maximum PCIe Lanes | 128 |
| Memory Type | DDR5 |
| Maximum Memory Speed | Up to 5200 MT/s |
| Memory Channels | 8-Channel |
| ECC Memory Support | Yes |
| Thermal Design Power (TDP) | 350 W |
| Maximum Operating Temperature | 95°C / 203°F |
| Included Thermal Solution | No |
| Thermal Monitoring | Yes |
| Instruction Set | 64-Bit |
| Instruction Extensions | AVX, AVX2, AVX-512, FMA3, FMA4, SSE 4.1/4.2 |
| Virtualization Technology | AMD-V |
| Performance Technology | Precision Boost 2 |
| Memory Overclocking | AMD EXPO |
| Security Technologies | AMD Memory Guard, Secure Processor, Shadow Stack, Platform Secure Boot |
| Manageability | AMD PRO Manageability |
| Microsoft Pluton Support | Yes |
| Package Weight | 0.84 lb |
| Package Dimensions | 5.1 x 5.1 x 2.8 in |
