Description

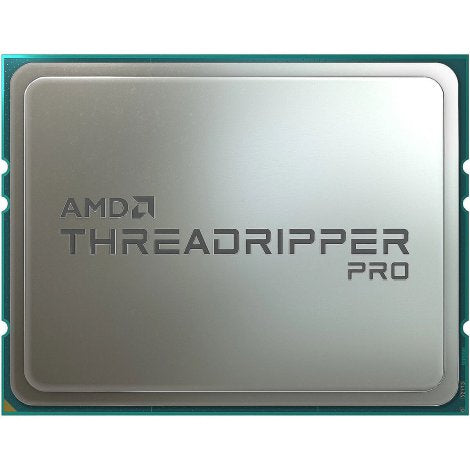

The AMD Ryzen Threadripper PRO 7985WX is a high-performance workstation processor built for demanding professional workloads, including 3D rendering, engineering, content creation, simulation, AI development, and data-intensive applications. Powered by AMD Zen 4 architecture, it delivers 64 CPU cores and 128 threads with a 3.2 GHz base clock and boost speeds of up to 5.1 GHz.
Designed for advanced workstation platforms using the sTR5 socket, the Threadripper PRO 7985WX supports PCIe 5.0 connectivity, eight-channel DDR5 RDIMM memory at speeds up to 5200 MT/s, and ECC memory for enhanced reliability. Its massive 256MB L3 cache and 64MB L2 cache help accelerate complex, highly parallel workloads.
AMD PRO technologies add enterprise-focused manageability and security capabilities, including AMD Memory Guard, AMD Secure Processor, virtualization support, firmware TPM, and secure boot technologies. The processor is unlocked for overclocking and supports AMD EXPO, Precision Boost Overdrive, and Curve Optimizer.
With a 350W default TDP and support for WRX90 and TRX50 workstation platforms, the Ryzen Threadripper PRO 7985WX is designed for professionals who require exceptional multicore performance, memory bandwidth, expansion capability, and workstation-class reliability. A discrete graphics card and compatible thermal solution are required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen Threadripper PRO 7985WX |
| Product Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Form Factor | Desktop / Workstation |
| Processor Architecture | Zen 4 |
| CPU Cores | 64 |
| Threads | 128 |
| Multithreading (SMT) | Yes |
| Base Clock | 3.2 GHz |
| Max Boost Clock | Up to 5.1 GHz |
| L1 Cache | 4096 KB |
| L2 Cache | 64 MB |
| L3 Cache | 256 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die Size | 71 mm² |
| I/O Die Size | 388 mm² |
| Package Die Count | 9 |
| CPU Socket | sTR5 |
| Supported Chipsets | WRX90, TRX50, Pro 695 |
| CPU Boost Technology | Precision Boost 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 148 Total / 144 Usable / 128 PCIe 5.0 |
| Native USB 3.2 Gen 2 Ports | 4 |
| Native SATA Ports | 4 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| Memory Subtype | RDIMM |
| Memory Channels | 8 |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Integrated Graphics | No |
| Graphics Requirement | Discrete Graphics Card Required |
| AMD PRO Technologies | Yes |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi / I/O MMU Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Maximum Operating Temperature | 95°C |
| Thermal Solution | Not Included |
| Operating System Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Supported Technologies | AMD EXPO Technology, AMD PRO Technologies, AMD Ryzen Technologies |
