Description

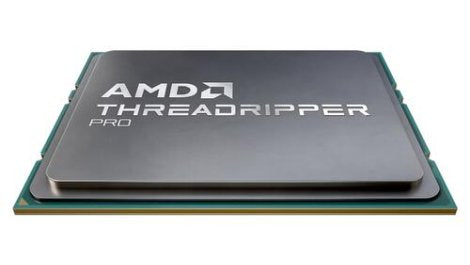

The AMD Ryzen™ Threadripper™ PRO 7995WX is a flagship workstation processor built for professionals handling demanding rendering, simulation, AI, engineering, software development, and content creation workloads. Featuring 96 cores and 192 threads based on the advanced Zen 4 architecture, it delivers exceptional parallel processing performance for highly complex professional applications.
With a 2.5 GHz base clock and boost speeds of up to 5.1 GHz, the Threadripper PRO 7995WX combines massive multicore capability with strong single-threaded performance. Its substantial 96 MB L2 cache and 384 MB L3 cache help keep frequently accessed data close to the processor for faster execution of intensive workloads.
Designed for the sTR5 socket, the processor supports PCIe 5.0, up to 128 usable PCIe 5.0 lanes, and 8-channel DDR5 RDIMM memory up to 5200 MT/s with ECC support. AMD PRO technologies provide additional enterprise-class manageability and security capabilities, including AMD Memory Guard, AMD Secure Processor, virtualization support, and firmware TPM.
With a 350W TDP, unlocked overclocking support, AMD EXPO™ technology, Precision Boost Overdrive, and Curve Optimizer, the Ryzen Threadripper PRO 7995WX is engineered for high-end professional workstations where maximum compute performance, expandability, memory bandwidth, and reliability are essential.
OEM packaging. Thermal solution is not included. A discrete graphics card is required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Processor Name | AMD Ryzen™ Threadripper™ PRO 7995WX |
| Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Form Factor | Desktop |
| AMD PRO Technologies | Yes |
| Former Codename | Storm Peak |
| Processor Architecture | Zen 4 |
| CPU Cores | 96 |
| Threads | 192 |
| Multithreading (SMT) | Yes |
| Base Clock | 2.5 GHz |
| Max Boost Clock | Up to 5.1 GHz |
| L1 Cache | 6144 KB |
| L2 Cache | 96 MB |
| L3 Cache | 384 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 388 mm² |
| Package Die Count | 13 |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution | Not Included |
| Max Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 4 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total / Usable / PCIe 5.0) | 148 / 144 / 128 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| System Memory Type | DDR5 |
| System Memory Subtype | RDIMM |
| Memory Channels | 8 |
| System Memory Specification | Up to 5200 MT/s |
| ECC Support | Yes, Default Enabled |
| Graphics Model | Discrete Graphics Card Required |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Guest Mode Execution (GMET) Trap | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi (I/O MMU Virtualization) | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection (NX Bit) | Yes |
| FIPS Certification | In Review |
| Supported Technologies | AMD EXPO™ Technology, AMD PRO Technologies, AMD Ryzen™ Technologies |
| Packaging | OEM |
