Description

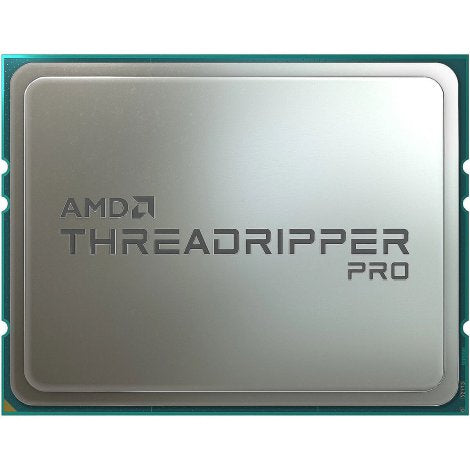

The AMD Ryzen Threadripper PRO 7995WX is a high-performance workstation processor built for demanding professional workloads, including 3D rendering, engineering simulations, AI development, content creation, software compilation, and data-intensive applications.
Powered by the Zen 4 architecture, this processor features 96 cores and 192 threads, a 2.5 GHz base clock, and boost speeds of up to 5.1 GHz. A massive 384MB L3 cache helps accelerate complex workflows and large datasets, while support for PCIe 5.0 provides high-bandwidth connectivity for professional graphics cards, storage devices, accelerators, and expansion hardware.
The Threadripper PRO 7995WX supports 8-channel DDR5 RDIMM memory with speeds up to 5200 MT/s and ECC support for workstation-class reliability. AMD PRO technologies, AMD Memory Guard, Secure Processor, virtualization capabilities, and other enterprise security features make it well suited for professional workstation environments.
Designed for the sTR5 socket and compatible with supported workstation chipsets including WRX90 and TRX50, the processor has a 350W TDP and requires a discrete graphics card. A thermal solution is not included.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMD |
| Product Line | Ryzen Threadripper PRO |
| Processor Model | Ryzen Threadripper PRO 7995WX |
| Series | Ryzen Threadripper PRO 7000 WX-Series |
| Processor Architecture | Zen 4 |
| Form Factor | Desktop / Workstation |
| CPU Cores | 96 |
| Threads | 192 |
| Multithreading (SMT) | Yes |
| Base Clock | 2.5 GHz |
| Max Boost Clock | Up to 5.1 GHz |
| L1 Cache | 6144 KB |
| L2 Cache | 96 MB |
| L3 Cache | 384 MB |
| Default TDP | 350W |
| CPU Core Process Technology | TSMC 5nm FinFET |
| I/O Die Process Technology | TSMC 6nm FinFET |
| CPU Compute Die Size | 71 mm² |
| I/O Die Size | 388 mm² |
| Package Die Count | 13 |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90, TRX50, Pro 695 |
| Unlocked for Overclocking | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Precision Boost Overdrive | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes | 148 Total / 144 Usable / 128 PCIe 5.0 |
| Native USB 3.2 Gen 2 Ports | 4 |
| Native SATA Ports | 4 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10, RAID 5 |
| Memory Type | DDR5 |
| Memory Subtype | RDIMM |
| Memory Channels | 8 |
| Memory Speed | Up to 5200 MT/s |
| ECC Support | Yes, enabled by default |
| Integrated Graphics | No |
| Graphics Requirement | Discrete graphics card required |
| AMD PRO Technologies | Yes |
| DASH Support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Virtualization-Based Security (VBS) | Yes |
| AMD-V (SVM) | Yes |
| AMD-V Nested Paging (RVI) | Yes |
| AMD AVIC | Yes |
| AMD-Vi I/O Virtualization | Yes |
| Second Level Address Translation (SLAT) | Yes |
| AES-NI | Yes |
| AMD Enhanced Virus Protection | Yes |
| Maximum Operating Temperature | 95°C |
| Thermal Solution | Not Included |
| Supported Operating Systems | Windows 11 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Supported Technologies | AMD EXPO Technology, AMD PRO Technologies, AMD Ryzen Technologies |
