Description

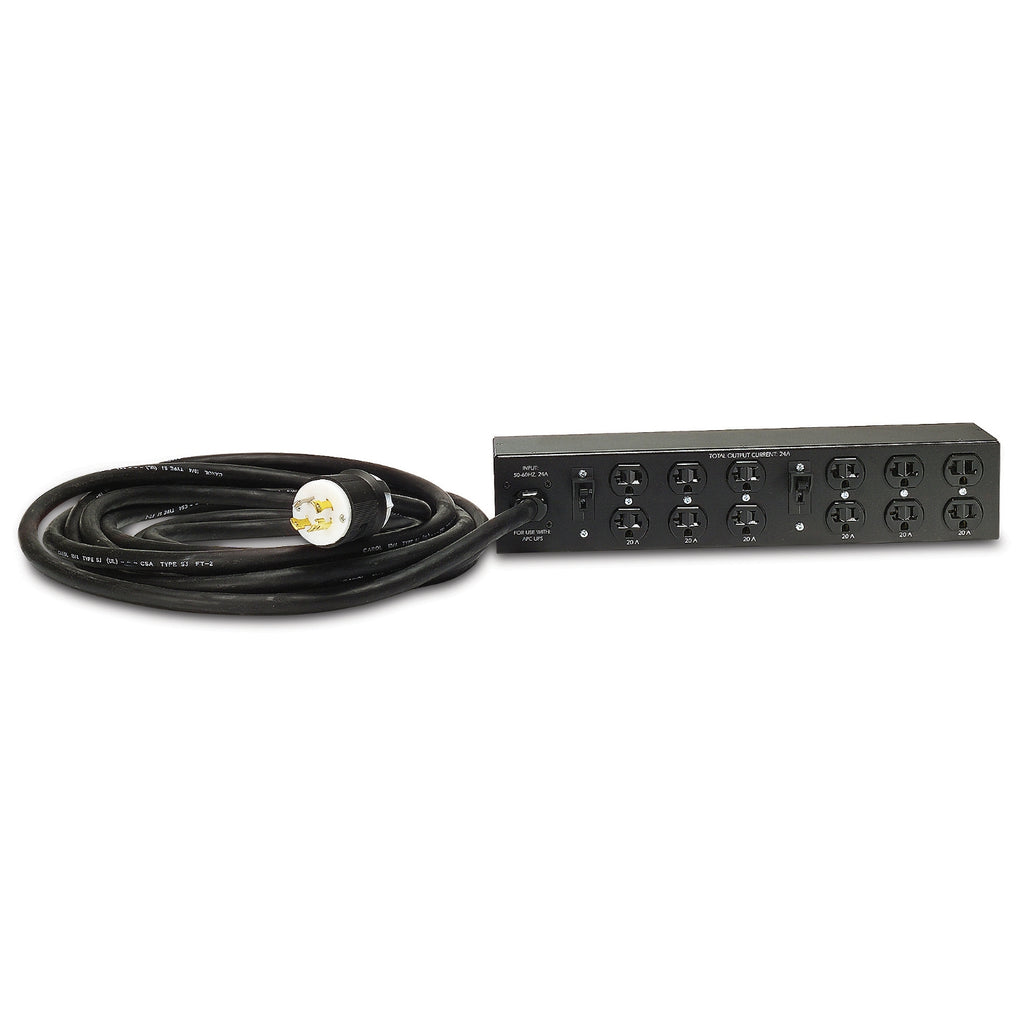

The APC by Schneider Electric NetShelter Basic Rack PDU Extender AP7582 delivers reliable, rack-mounted power distribution for data centers, network closets, and edge deployments. Designed in a 2U horizontal form factor, this basic PDU provides 12 NEMA 5-20R outlets and supports high-capacity loads up to 4992 VA.
Built for flexibility and durability, the AP7582 features a long 27.99-foot power cord for easier routing and front or rear rack mounting options. With a 30A input and 24A rated current, it is ideal for extending power availability within standard 19-inch racks without the complexity of switched or metered PDUs.
This model ships with mounting brackets and is well suited for enterprise IT environments requiring dependable, always-on power distribution.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP7582 |
| Product Type | Rack Power Distribution Unit (PDU) |
| PDU Type | Basic |
| Rack Size | 19-inch |
| Rack Units | 2U |
| Mounting Orientation | Horizontal |
| Mounting Location | Front or Rear |
| Input Voltage | 200V / 208V |
| Output Voltage | 120V |
| Input Plug Type | NEMA L14-30P |
| Outlet Type | NEMA 5-20R |
| Outlet Quantity | 12 |
| Line Rated Current | 24A |
| Input Current Limit | 30A |
| Load Capacity | 4992 VA |
| Input Frequency | 50/60 Hz |
| Cord Length | 27.99 ft (8.53 m) |
| Color | Black |
| Height | 3.5 in (89 mm) |
| Width | 17.2 in (437 mm) |
| Depth | 3.5 in (89 mm) |
| Net Weight | 14.02 lb (6.36 kg) |
| Included Accessories | Installation guide, rack mounting brackets |
| Warranty | 2 Years |
