Description

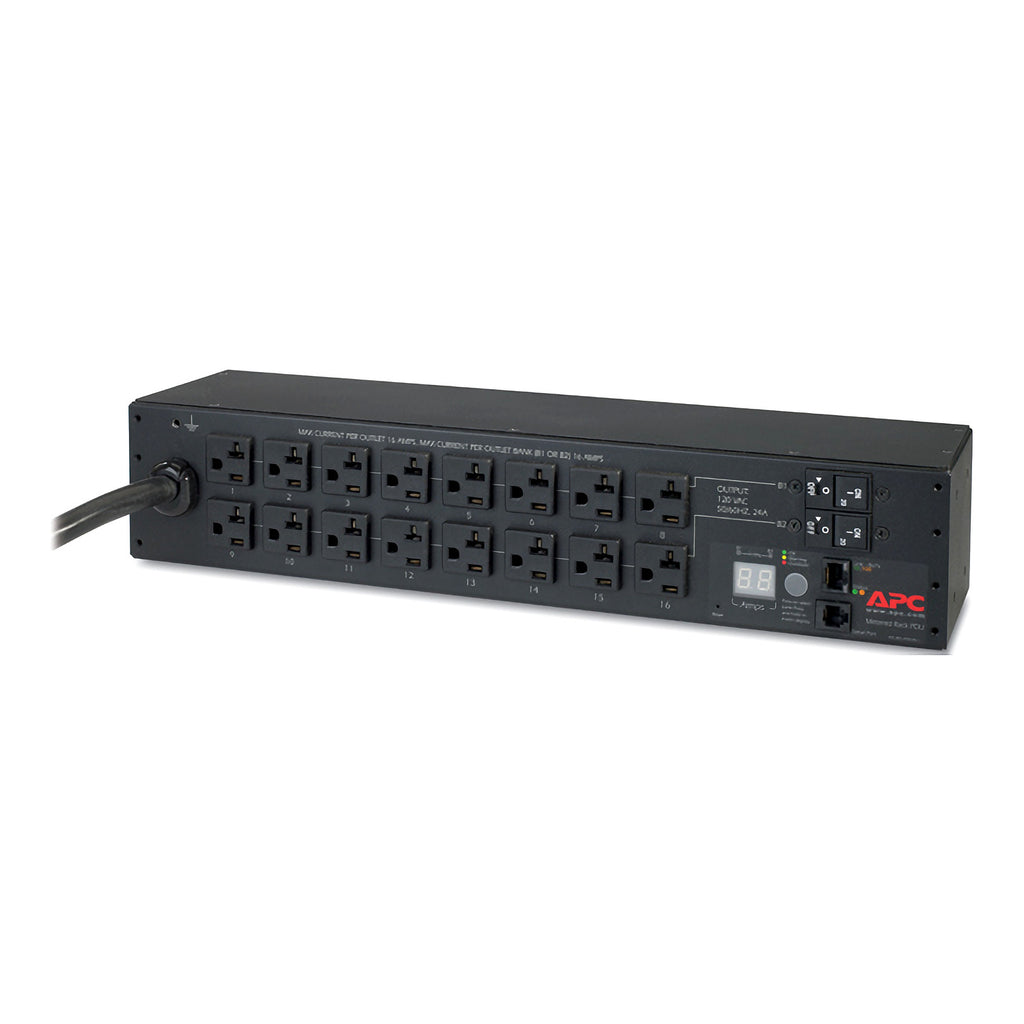

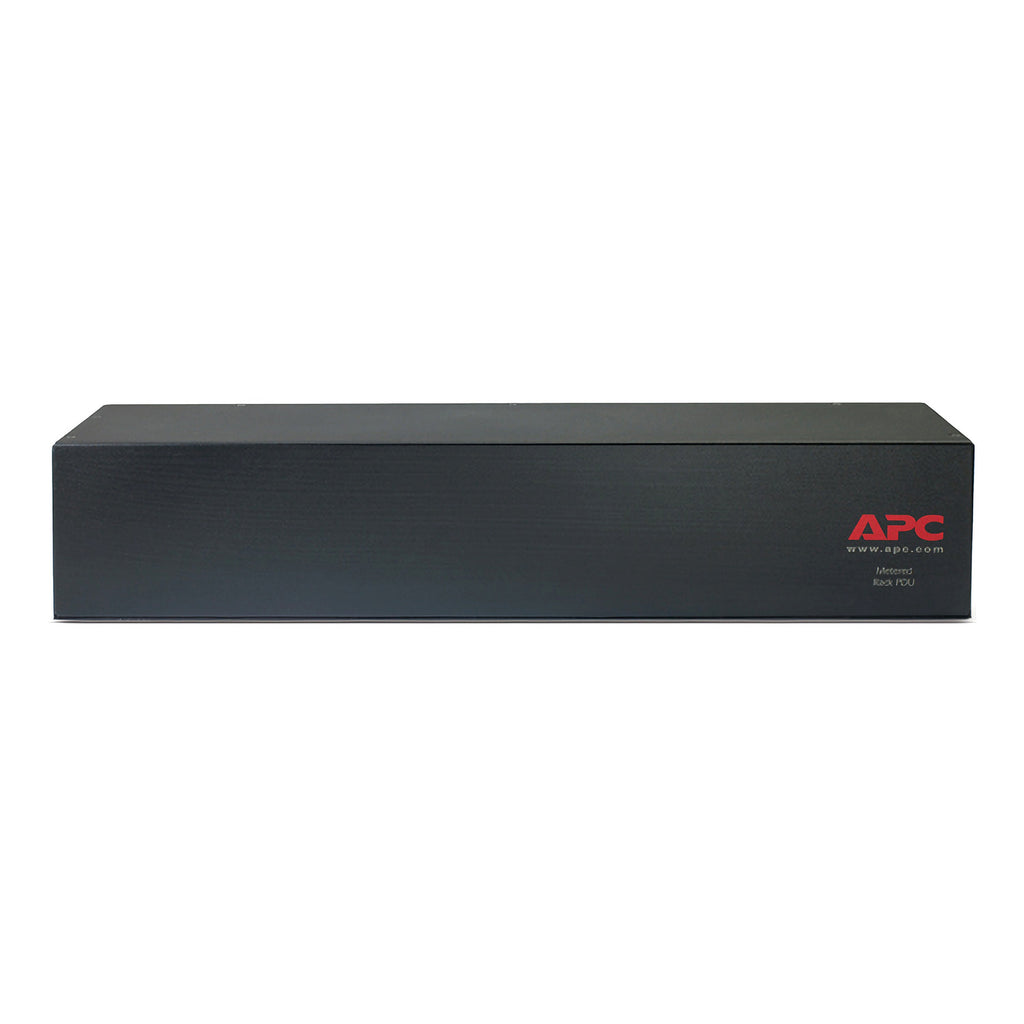

The APC NetShelter AP7802B is a 2U metered rack power distribution unit (PDU) designed for professional data centers and IT environments requiring reliable, monitored power delivery. Operating at 120V and 30A, it features 16 NEMA 5-20R outlets and a NEMA L5-30P input plug, providing up to 2880 VA load capacity. Its built-in metering enables real-time monitoring of load levels, helping prevent overloads and optimize power utilization across racks.
Built for flexible installation, the AP7802B supports horizontal rack mounting (front or rear) and includes mounting brackets, cord retention, and a user manual for seamless setup. The robust construction and compliance with UL, CSA, and FCC standards ensure safe, long-lasting operation in demanding environments. Schneider Electric’s sustainability commitment ensures this model is energy efficient, RoHS-compliant, and manufactured with recycled packaging materials.
Ideal for enterprise, edge, and network closets that need dependable, monitored power distribution.
| Category | Specification |
|---|---|
| Product Type | Rack PDU (Metered) |
| Model | AP7802B |
| Mounting Type | Rack-mounted (Horizontal, 2U) |
| Mounting Location | Front / Rear |
| Input Voltage | 100–120 V AC |
| Output Voltage | 120 V AC |
| Input Plug Type | NEMA L5-30P |
| Outlet Type & Quantity | 16 × NEMA 5-20R |
| Line Rated Current | 24 A |
| Input Current Limit | 30 A |
| Load Capacity | 2880 VA |
| Input Frequency | 50 / 60 Hz |
| Cord Length | 11.98 ft (3.65 m) |
| Dimensions (H × W × D) | 3.5 × 17.5 × 4.4 in (88 × 444 × 112 mm) |
| Net Weight | 7.41 lb (3.36 kg) |
| Package Weight | 11.93 lb (5.41 kg) |
| Operating Temperature | 23–113 °F (-5–45 °C) |
| Storage Temperature | -13–149 °F (-25–65 °C) |
| Relative Humidity | 5–95% (Operating & Storage) |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft |
| Certifications | UL Listed, CSA, cUL, FCC Part 15 Class A, ICES-003 |
| Warranty | 2 Years |
| Environmental Compliance | RoHS (with exemptions), REACh Declaration, recyclable packaging |
| Sustainability | Optimized energy efficiency, recycled cardboard packaging, circularity program support |
| GTIN | 731304331476 |
