Description
The APC NetShelter AP8858 Metered Rack PDU delivers reliable, real-time power monitoring for modern data centers and edge environments. Designed in a vertical 0U form factor, it optimizes rack space while providing accurate load visibility to prevent circuit overloads and improve energy efficiency.

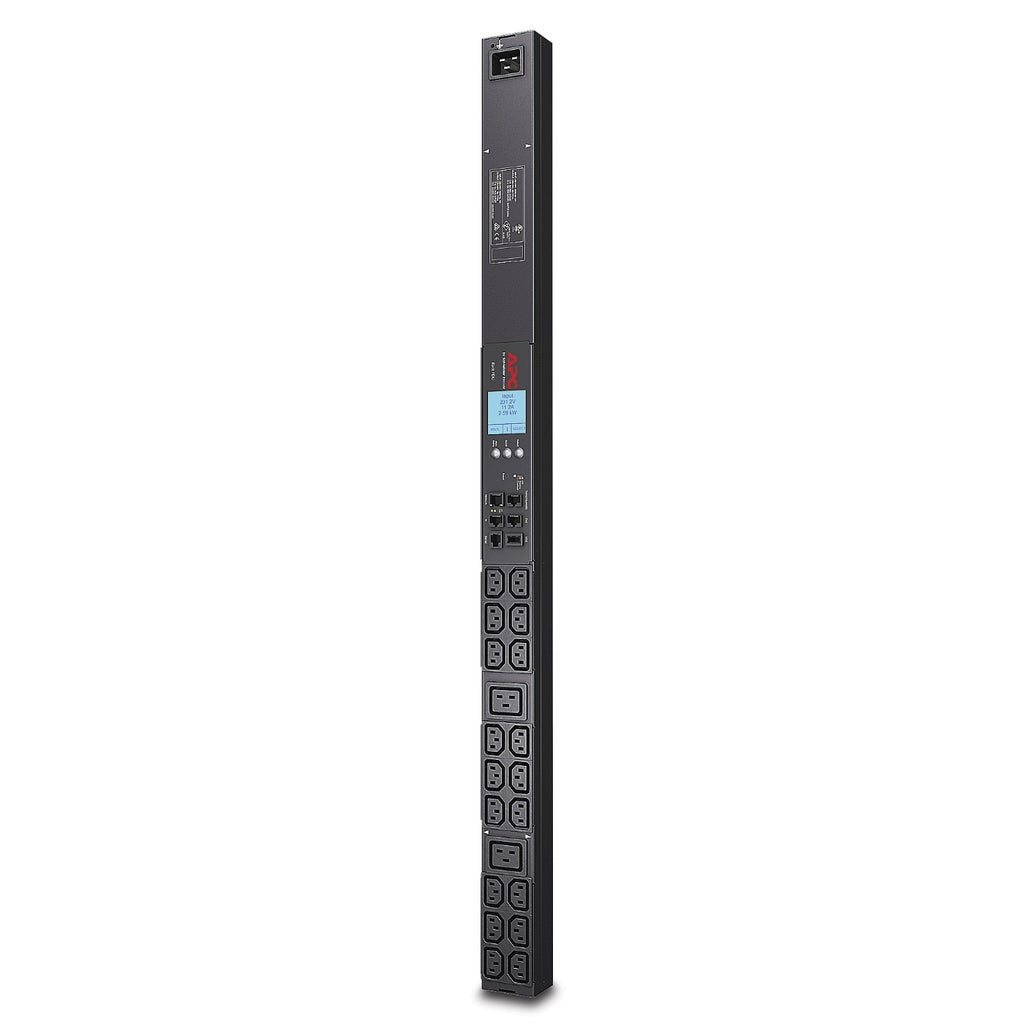

This single-phase metered PDU supports 208V and 230V input with a C20 inlet and offers a high-density outlet configuration of 18 IEC C13 and 2 IEC C19 receptacles. Integrated current metering enables informed capacity planning and load balancing, while user-defined alarm thresholds help mitigate downtime risks.
Built for enterprise reliability, the AP8858 features locking IEC outlets, an ultra-slim vertical profile, and a dedicated sensor port for optional temperature and humidity monitoring. It is ideal for IT managers seeking precise power utilization data, enhanced circuit protection, and dependable rack-level power distribution.
| Specification | Details |
|---|---|
| Brand | APC |
| Manufacturer Series | NetShelter |
| Product Type | Metered Rack Power Distribution Unit |
| Form Factor | 0U Vertical |
| Mounting Type | Rack-mounted |
| Input Voltage | 208V / 230V |
| Input Current | 16A |
| Input Plug | IEC 60320 C20 |
| Phase | Single Phase |
| Load Capacity | 3.3kW @ 208V / 3.7kW @ 230V |
| Outlet Configuration | 18 × IEC C13, 2 × IEC C19 |
| Metering | Local current metering |
| Sensor Support | Temperature/Humidity sensor port |
| Rack Orientation | Vertical |
| Dimensions (H × W × D) | 902 mm × 56 mm × 44 mm |
| Weight | 2.93 kg |
| Color | Black |
| Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 60°C |
| Warranty | 2 Years |
