Description

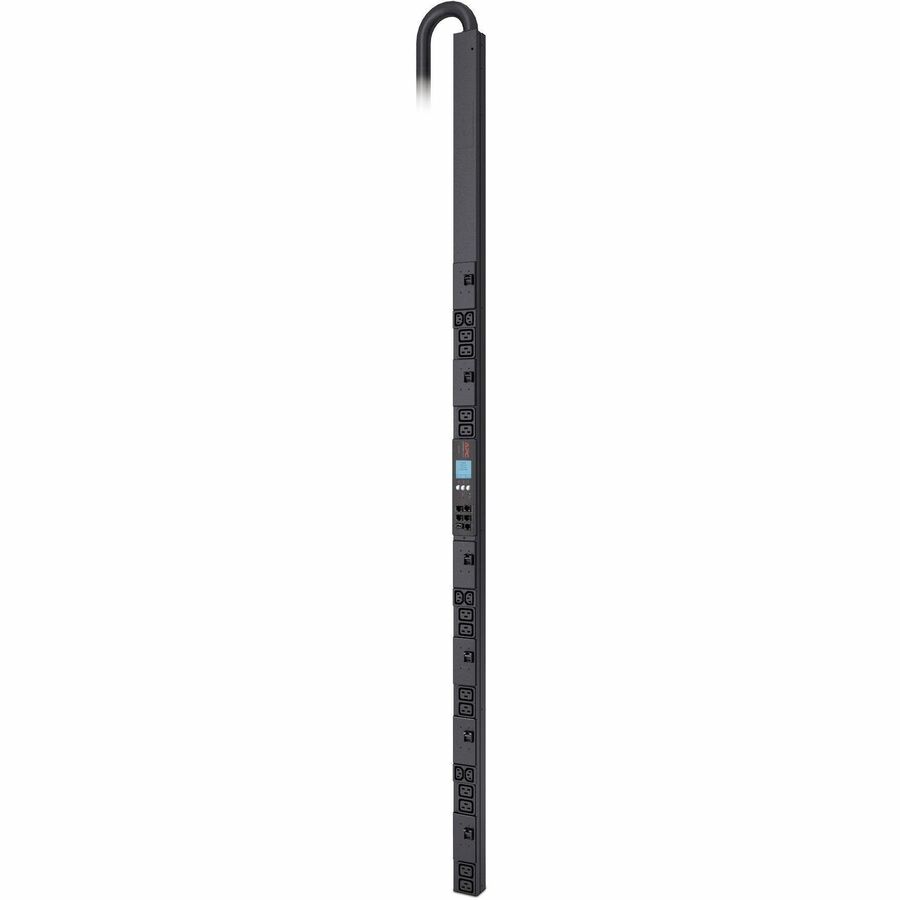

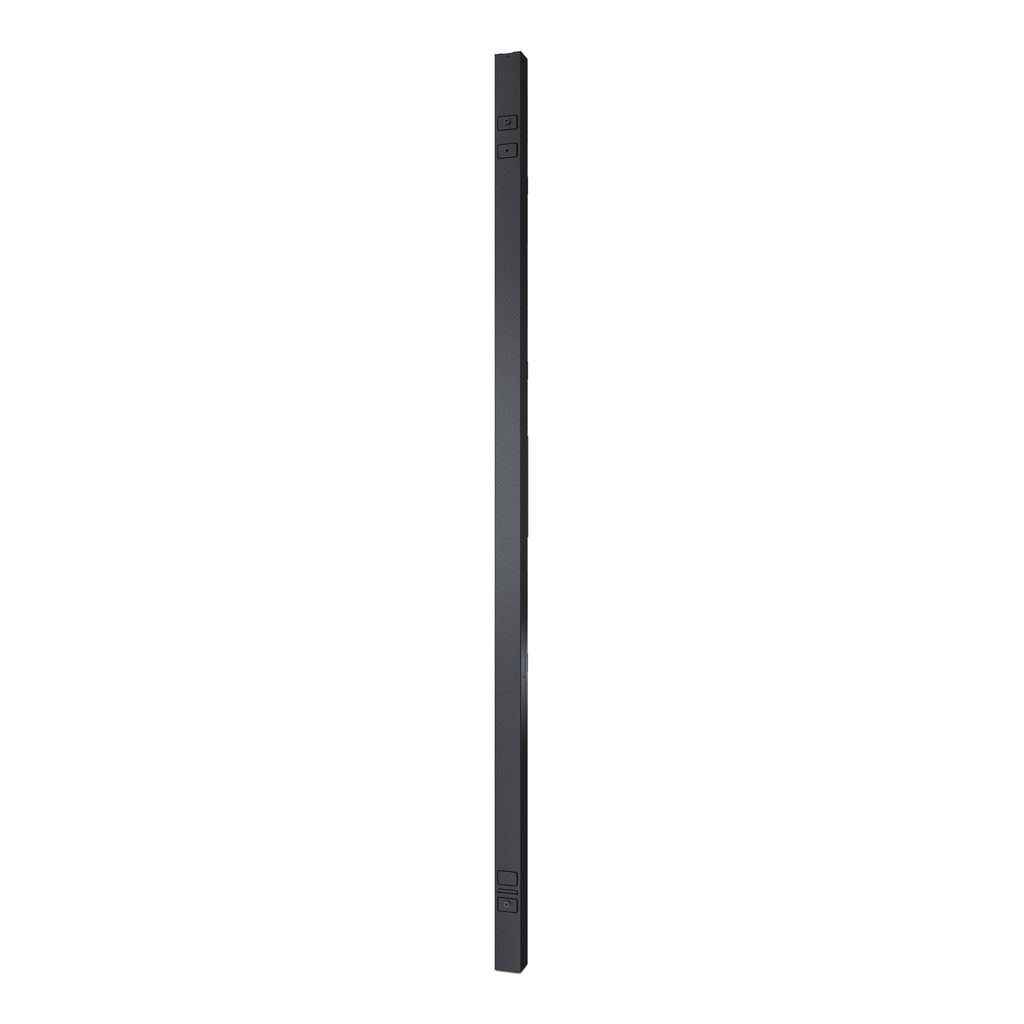

The APC Metered Rack PDU (AP8866) delivers high-capacity, reliable power distribution with real-time load monitoring. Designed for vertical 0U installation, this PDU supports server, switch, and network device loads via a 208V 3-phase input (IEC 60309 60A 3P+PE) and 18 total outlets—(6) IEC C13 and (12) IEC C19.

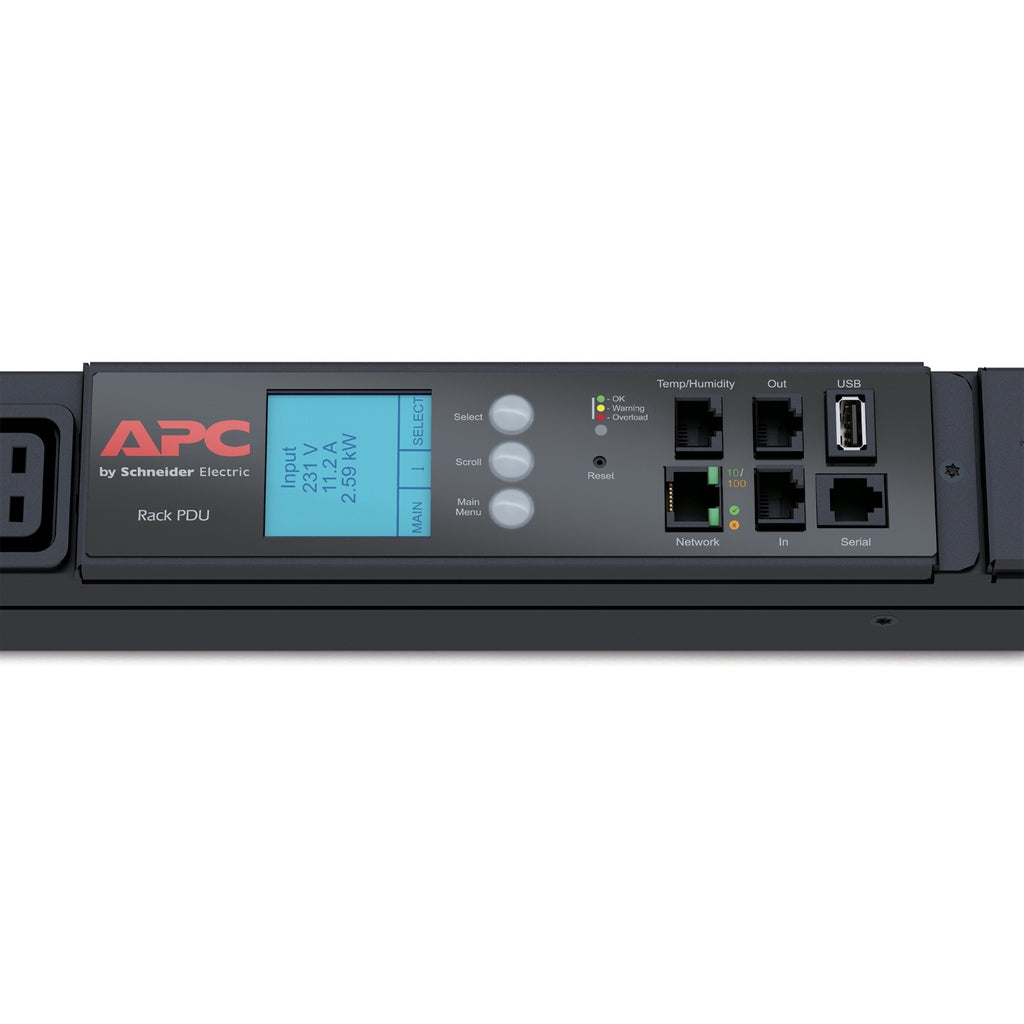

It features locking IEC outlets to prevent accidental disconnections and provides data on volts, amps, kilowatts, and kilowatt-hours for energy management. The integrated network management card offers secure remote access via Web, SNMP, and CLI. This model includes a 1-year secure network management subscription and supports environmental monitoring with optional sensors.
Toolless mounting makes it ideal for APC NetShelter enclosures, occupying zero U space and ensuring efficient rack utilization.
| Attribute | Details |
|---|---|
| Product Type | Metered Rack PDU |
| Form Factor | Vertical 0U |
| Input Voltage | 208V, 3 Phase |

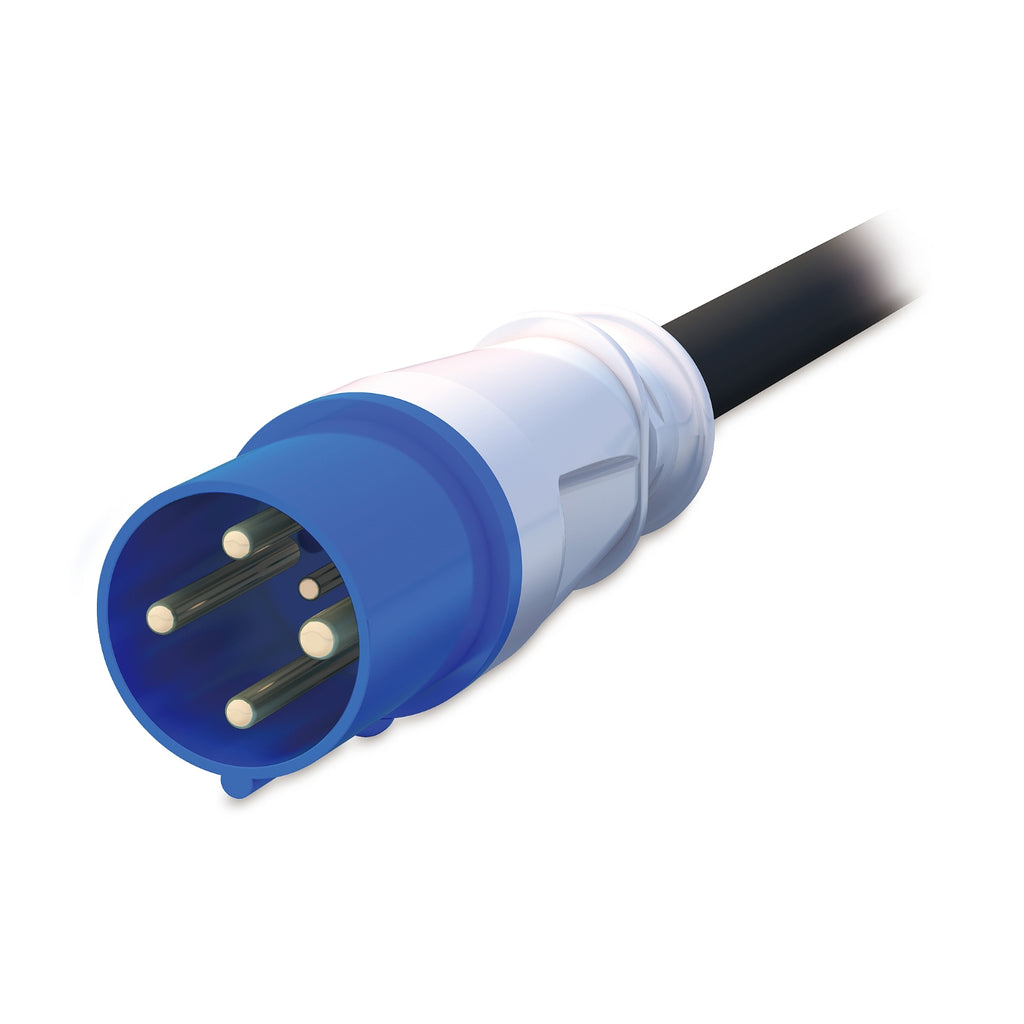

| Input Plug Type | IEC 60309 60A 3P + PE |
| Cord Length | 6 ft (1.8 m) |
| Outlets | (6) IEC 60320 C13, (12) IEC 60320 C19 |
| Line Rated Current | 48A |
| Max Load Capacity | 17.3 kW |
| Output Voltage | 208V |
| Frequency | 50/60 Hz |
| Mounting | Rack-mounted, vertical, side-mount |
| Dimensions (H x W x D) | 72.01 x 2.20 x 2.01 in (182.9 x 5.6 x 5.1 cm) |
| Weight | 20.9 lbs (9.5 kg) |
| Environmental Monitoring Port | Yes (Sensor AP9335T/TH, sold separately) |
| Network Interface | Web, SNMP, CLI (1-Year Secure NMC subscription included) |
| Certifications | UL Listed, cUL Listed, VCCI Class A, FCC Part 15 Class A |
| Operating Temp | -5 to 60°C (23 to 140°F) |
| Warranty | 2 years repair or replace |
