Description

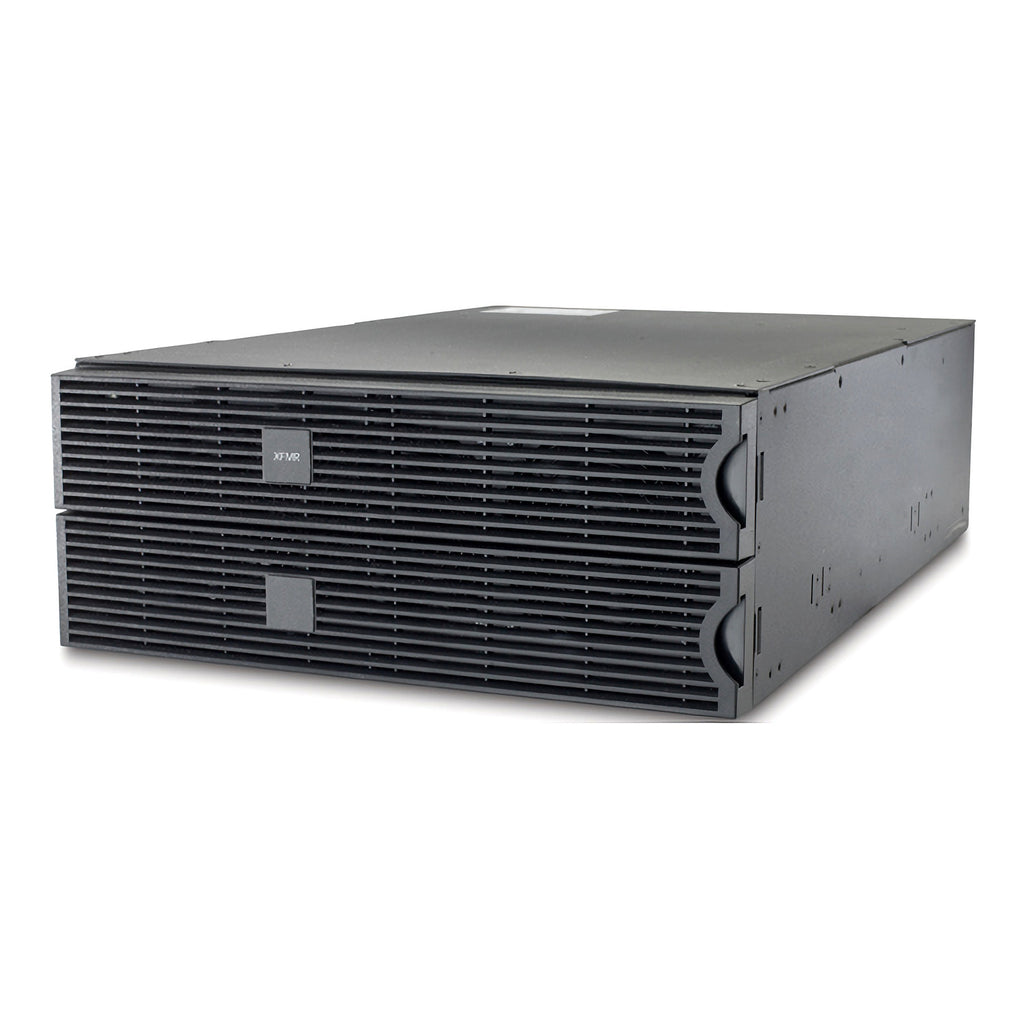

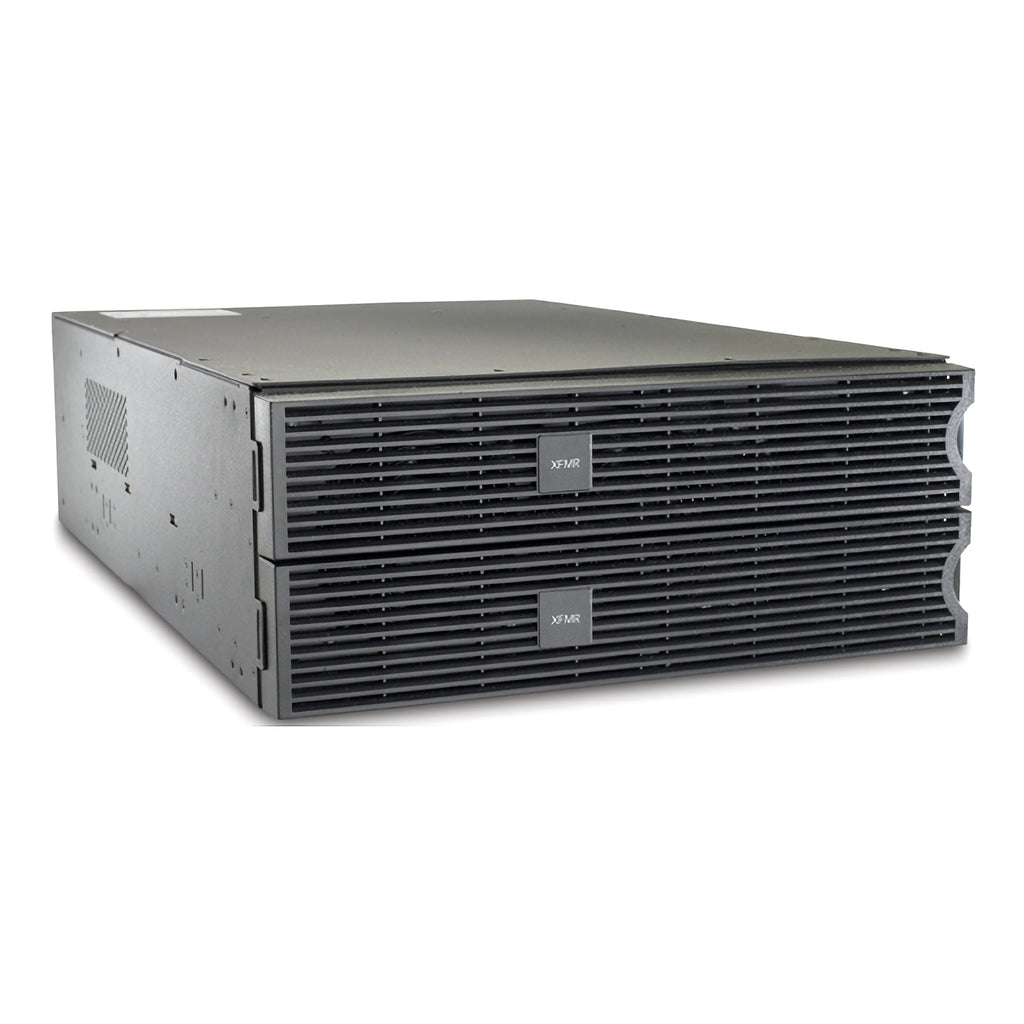

The APC APTF10KW01 is a high-performance 10kVA isolation transformer designed for compatibility with APC Smart-UPS systems. It safely converts high voltage (208/230/240V) to low voltage (120/208/230/240V), enabling reliable power distribution to lower-voltage equipment. Its 4U rackmount form factor ensures easy installation in standard racks. Certified by UL and CSA, this transformer supports eco-conscious initiatives with recyclable packaging and product take-back. Ideal for IT environments requiring flexible, upstream power conversion while minimizing inrush current and UPS oversizing.
| Category | Details |
|---|---|
| Product Type | Step-Down Isolation Transformer |
| Model Number | APTF10KW01 |
| Rack Units | 4U |
| Input Voltage | 208V / 230V / 240V |
| Output Voltage | 120V / 208V / 230V / 240V |
| Load Capacity | 10,000 VA (10kVA) |
| Input Frequency | 45–65 Hz |
| Max Input Current | 60 A |
| Efficiency | 95% |
| Input Connectors | 1x Hard Wire 3-wire (2PH + G), 1x Hard Wire 3-wire (1PH+N+G) |
| Output Connectors | 1x Hard Wire 3-wire (H N + E), 1x Hard Wire 3-wire (2PH + G) |
| Power Outlets | 0 |
| Mounting | Rack-mounted (front/side, lower preference) |
| Dimensions (H x W x D) | 6.89 x 17.01 x 29.49 in (17.5 x 43.2 x 74.9 cm) |
| Weight | 220.5 lb (100 kg) |
| Color | Black |
| Certifications | UL Listed, CSA, EN 55022 Class A, EN 61000 Series |
| Environment | 0–40°C operating temp, 0–95% RH, 0–10,000 ft operating altitude |
| Included Accessories | Rack mounting brackets, hardwire panel, user manual, installation guide, CD |
| Warranty | 2 years, repair or replace |
