Description

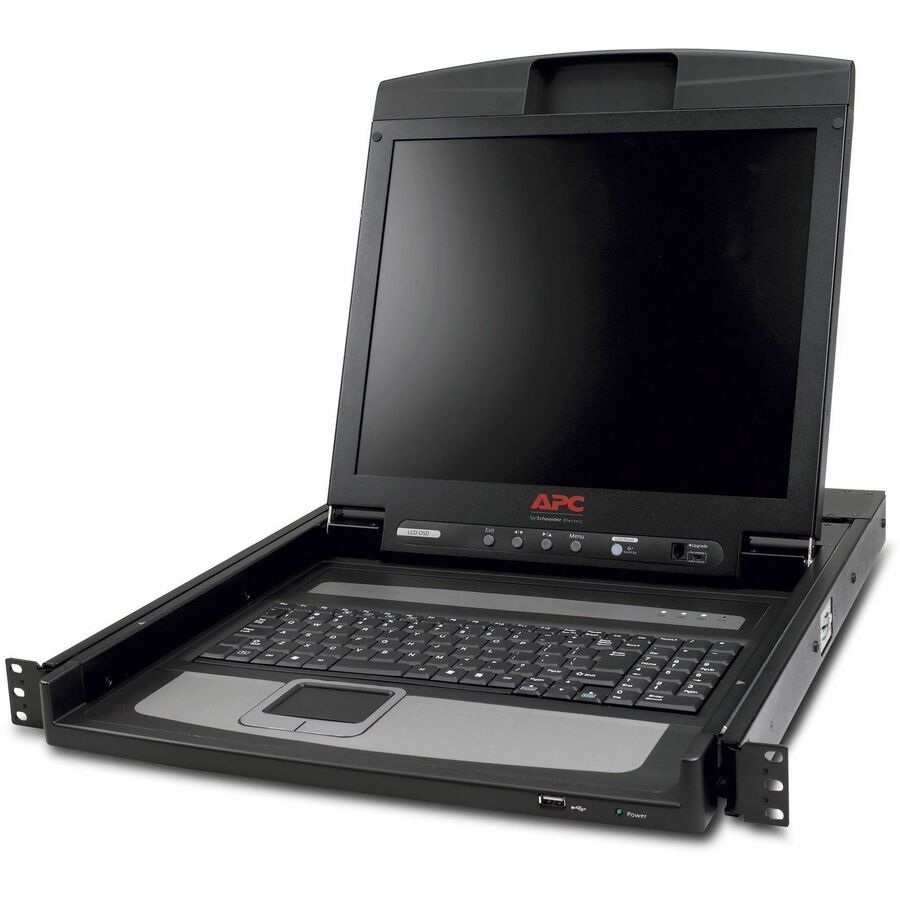

The APC AP5717 Rack LCD Console is a compact, 1U rack-mountable solution that integrates a 17-inch LCD panel, full-sized keyboard, and touchpad in a single drawer. Designed for data centers and server rooms, this console supports both USB and PS/2 connections and is ideal for centralized access and management. It is compatible with most KVM switches and offers a simple installation process with all necessary accessories included.
| Category | Details |
|---|---|
| Model | AP5717 |
| Display Size | 17-inch LCD |
| Resolution | 1280 x 1024 (SXGA) |
| Color Support | 16 colors |
| Keyboard Layout | US English |
| Touchpad | PS/2 Touchpad, USB mouse support |
| Input Voltage | 100 – 240V |
| Input Frequency | 50/60 Hz |
| Power Consumption | 19 W |
| Mounting | Rack-mountable (1U), front or rear |
| Mounting Depth | 26.77 – 41.33 in (68 – 104.98 cm) |
| Dimensions (HxWxD) | 1.73 x 18.98 x 24.17 in (4.4 x 48.2 x 61.4 cm) |
| Weight | 35.05 lb (15.9 kg) |
| Included Accessories | USB & PS2 KVM cables, power cords (NEMA 5-15, C13–C14), USB cable, single-user rack mount kit, firmware cable, documentation CD |
| Certifications | UL, CE, FCC Part 15 Class A, TAA, RoHS (with exemptions), REACh |
| Warranty | 2 years repair or replace |
