Description

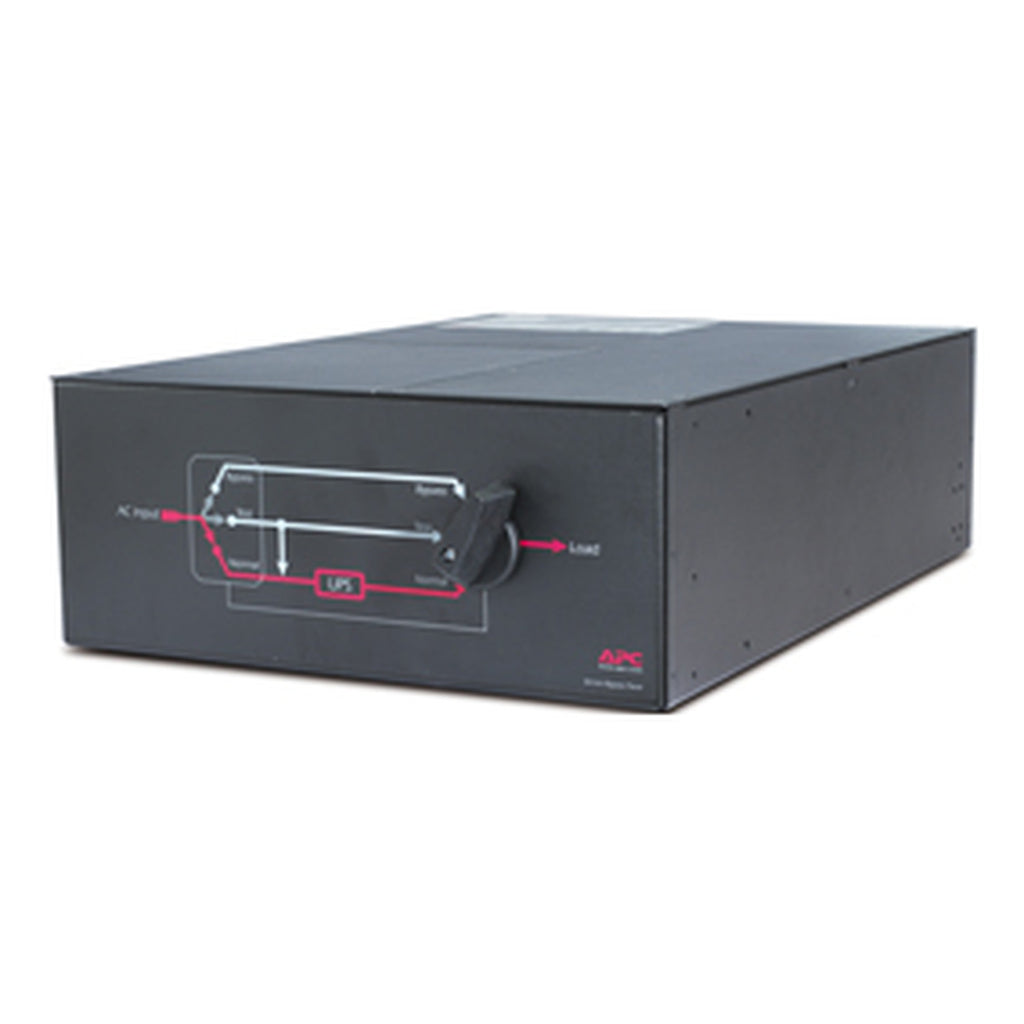

The APC SBP16KRMP4U-HW is a robust 4U rack-mountable service bypass panel engineered for seamless UPS maintenance without service interruption. Designed for compatibility with Symmetra LX and Smart-UPS systems from 4kVA to 16kVA, it provides a 208V/100A hardwired input/output with (1) L14-30R and (3) L5-20R outlets. This panel ensures high availability for mission-critical environments such as data centers, server rooms, and network closets. With built-in circuit protection, included rack-mounting hardware, and a wide input voltage range, it offers easy integration and dependable operation.
| Category | Details |
|---|---|
| Product Type | Service Bypass Panel |
| Model | SBP16KRMP4U-HW |
| Rack Units | 4U |
| Input Voltage | 208V (also supports 200V, 240V) |
| Input Type | Hard Wire 3-wire (2PH + G), Hard Wire 4-wire (2PH + N + G) |
| Input Frequency | 50/60 Hz |
| Max Input Current | 100 A |
| Output Voltage Options | 120V, 200V, 208V, 240V |

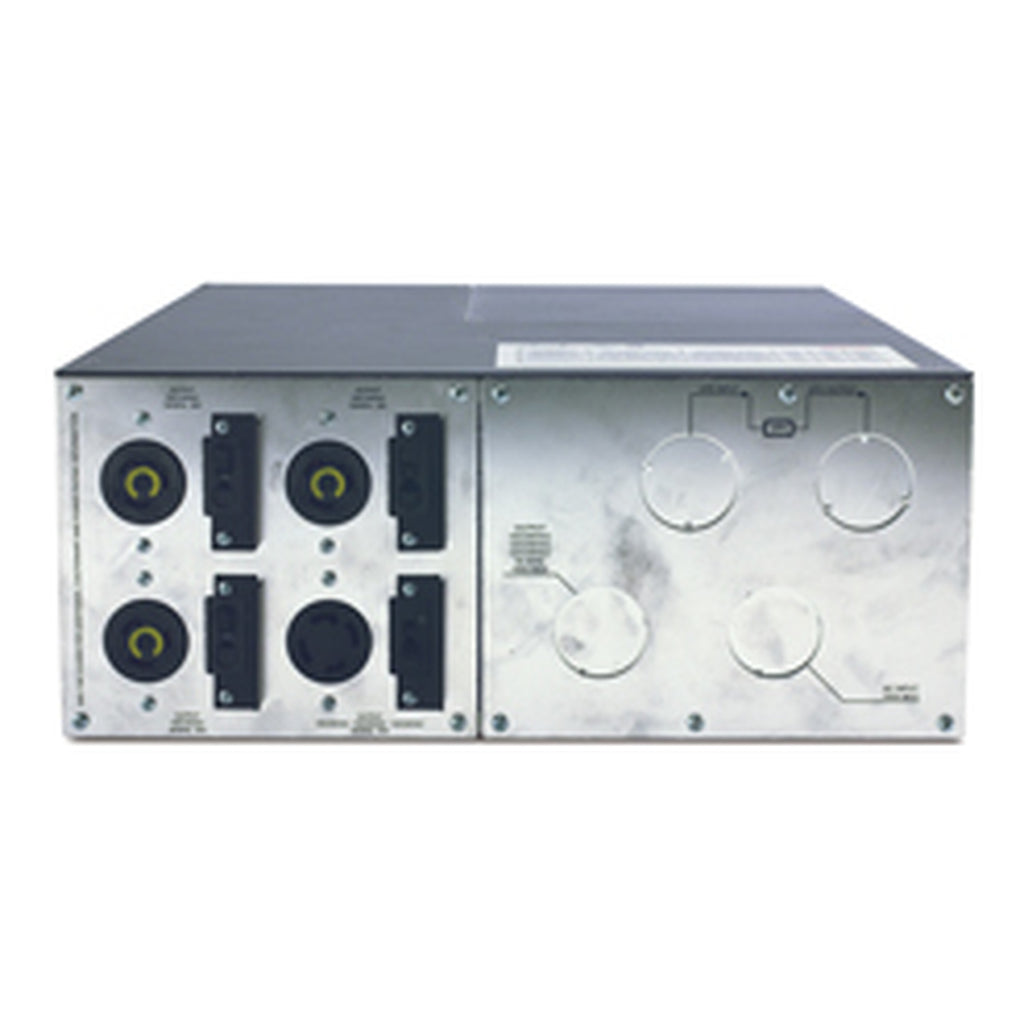

| Output Connections | (3) NEMA L5-20R, (1) NEMA L14-30R, Hardwire output |
| Load Capacity | 20,000 VA |
| Power Factor | 0 to 1 |
| Efficiency | 99% |
| Compatibility | Symmetra LX, Smart-UPS (4kVA to 16kVA) |
| Mounting | Rack-mounted or wall-mounted |
| Color | Black |
| Included Accessories | Rack brackets, installation guide, user manual |
| Certifications | CSA, GOST |
| Operating Temp. Range | -4 to 122 °F (-20 to 50 °C) |
| Humidity (Operating) | 0 to 95% RH |
| Altitude (Operating) | 0 to 15,000 ft |
| Weight (Net) | 51.10 lbs (23.18 kg) |
| Package Dimensions | 39.02 in x 24.02 in x 12.01 in |
| Package Weight | 74.16 lbs (33.64 kg) |
| Warranty | 2 years (parts only) |
| GTIN | 731304225195 |
