Description

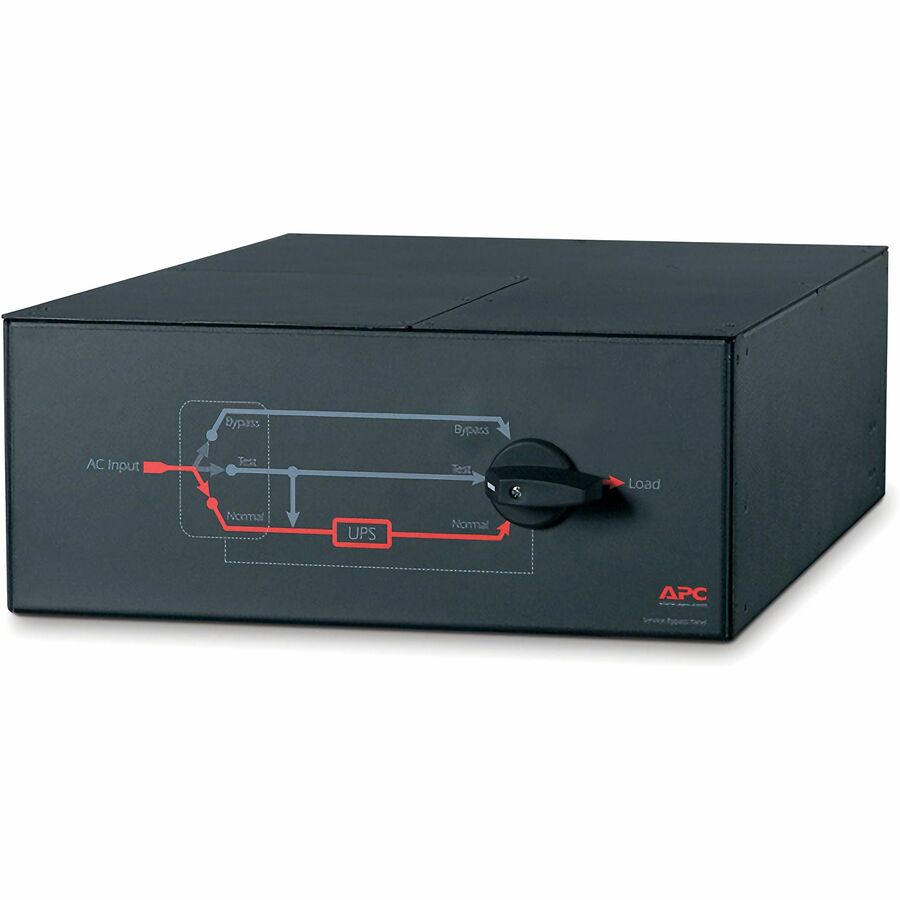

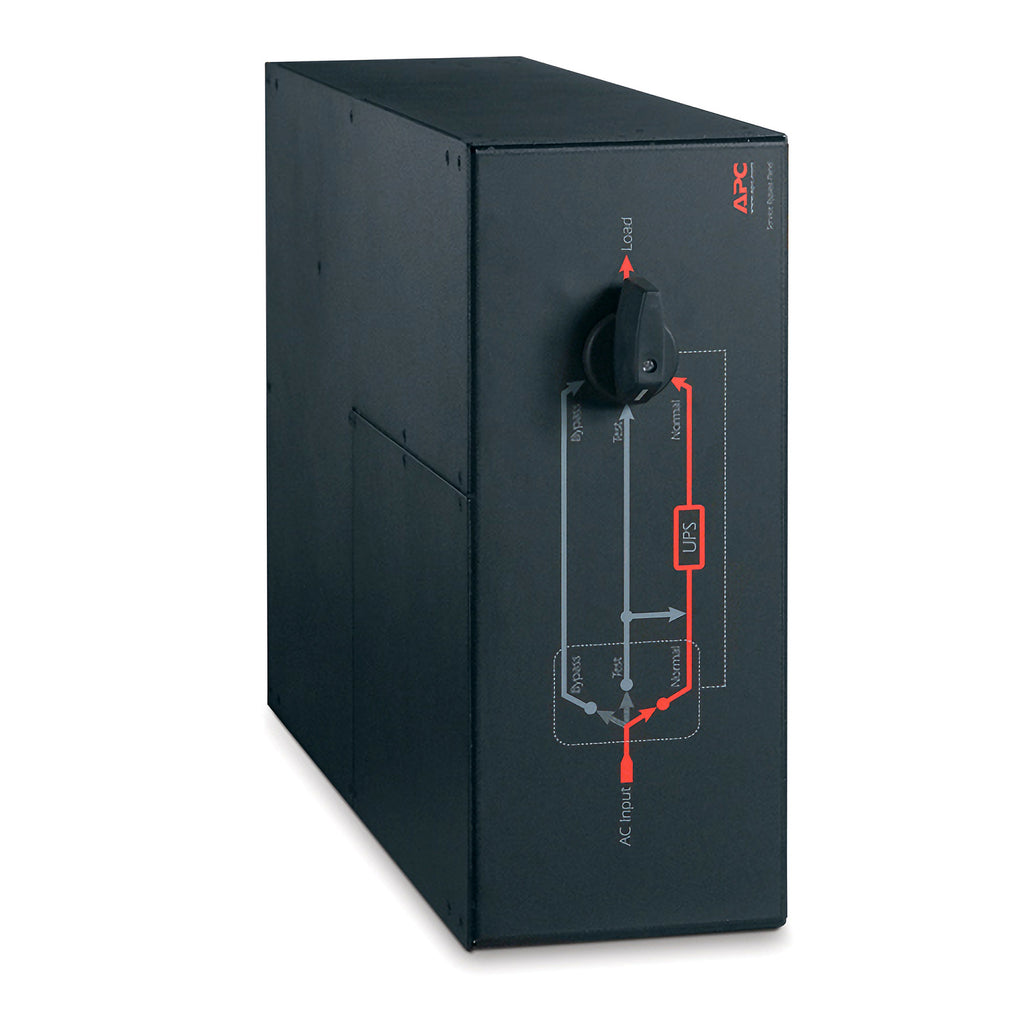

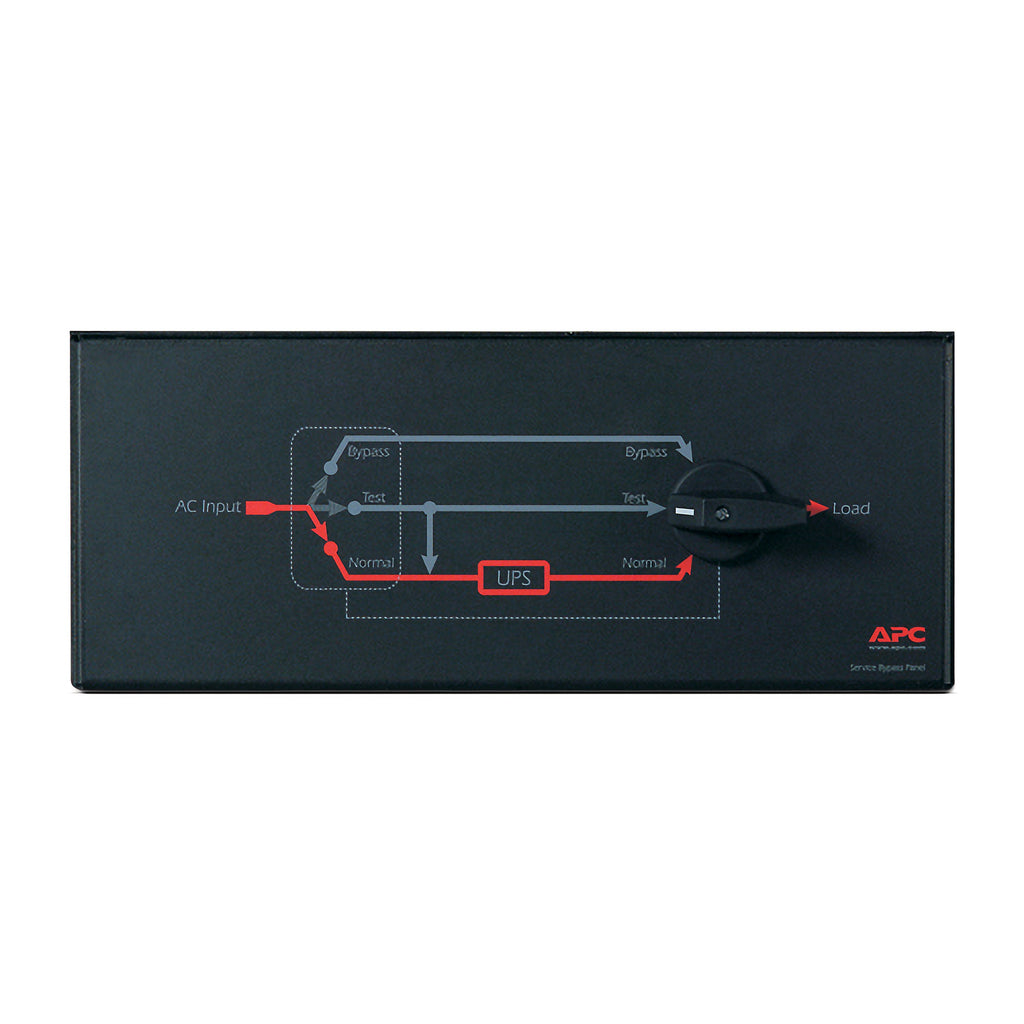

The APC SBP10KRMT4U Service Bypass Panel provides dependable maintenance bypass capability for APC Smart-UPS, Symmetra, and InfraStruXure Type A systems. Designed to support critical loads during UPS servicing, this 4U rack-mountable unit ensures uninterrupted power with hardwired input and six NEMA locking output receptacles (3x L6-20R, 3x L6-30R). With a 100A maximum input current and high 20 kVA load capacity, it supports high-demand environments while maintaining 99% efficiency. Built for durability and convenience with a front-mount, black chassis, this panel includes rack mounting brackets, installation guide, and a 2-year warranty.
| Category | Details |
|---|---|
| Product Type | Service Bypass Panel (Rack-Mount) |
| Model Number | SBP10KRMT4U |
| Input Voltage | 200V / 208V / 240V |
| Output Voltage | 200V / 208V / 240V |

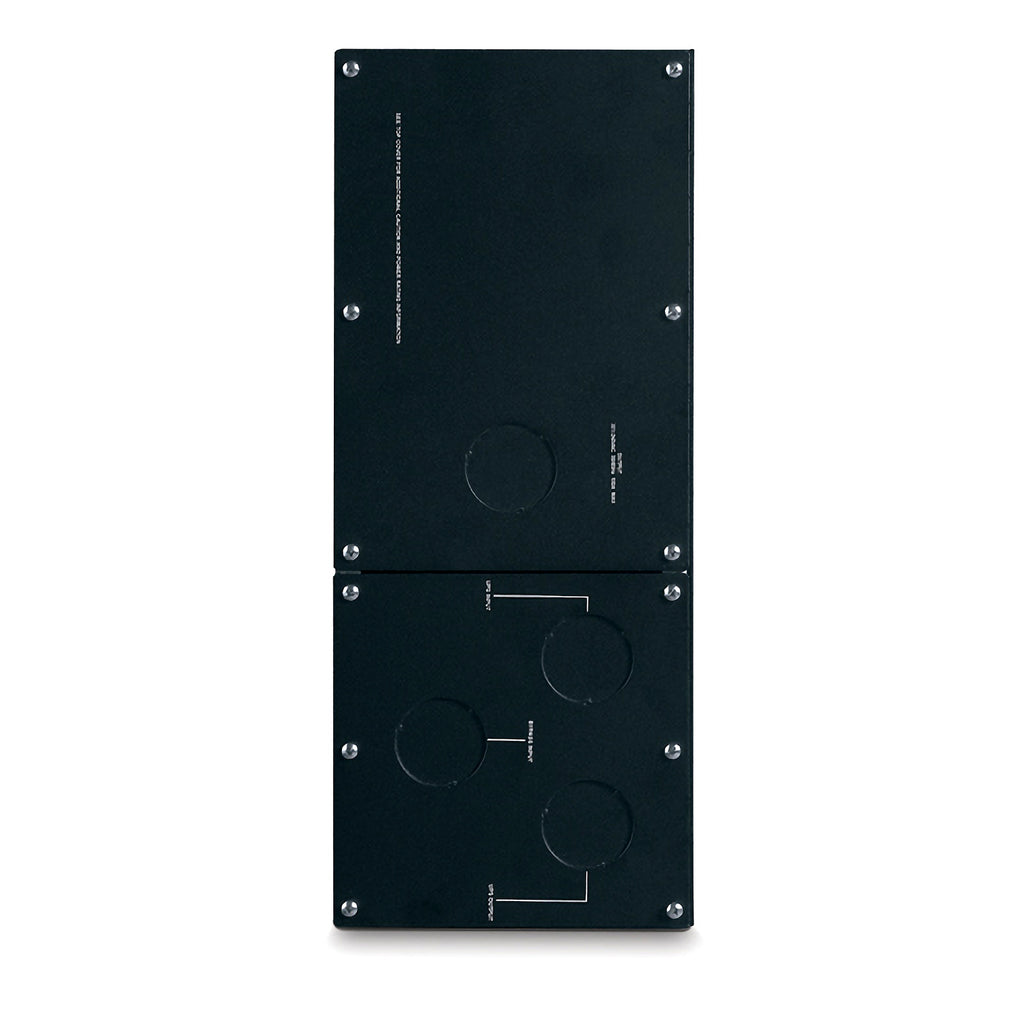

| Input Type | Hardwire 3-wire (2PH + G) |
| Output Receptacles | 3x NEMA L6-20R, 3x NEMA L6-30R |
| Max Current (Input/Output) | 100A |
| Load Capacity | 20,000 VA |
| Frequency | 50/60 Hz |
| Power Factor | 0 to 1 |
| Efficiency | 99% |
| Rack Units | 4U |
| Mounting | Rack-mounted (front, lower) |
| Color | Black |
| Certifications | CSA, GOST |
| Operating Temp | -4 to 122 °F (-20 to 50 °C) |
| Storage Temp | -40 to 149 °F (-40 to 65 °C) |
| Relative Humidity | 0–95% (operating & storage) |
| Altitude (Operating) | 0–15,000 ft |
| Altitude (Storage) | 0–50,000 ft |
| Dimensions (HxWxD) | 7.01 x 17.01 x 26.50 in (17.8 x 43.2 x 67.3 cm) |
| Weight | 48.1 lb (21.8 kg) |
| Package Weight | 70.15 lb (31.8 kg) |
| Warranty | 2 Years (Parts Only) |
| Included Accessories | Rack Mounting Brackets, Installation Guide, User Manual |
