Description

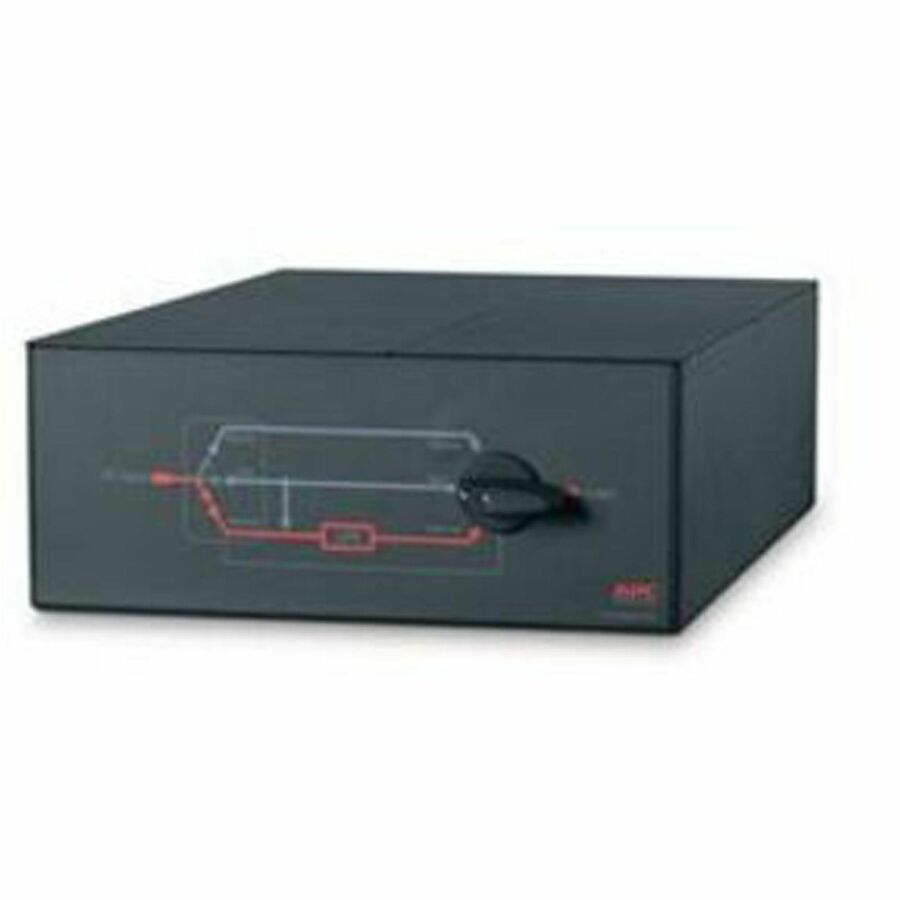

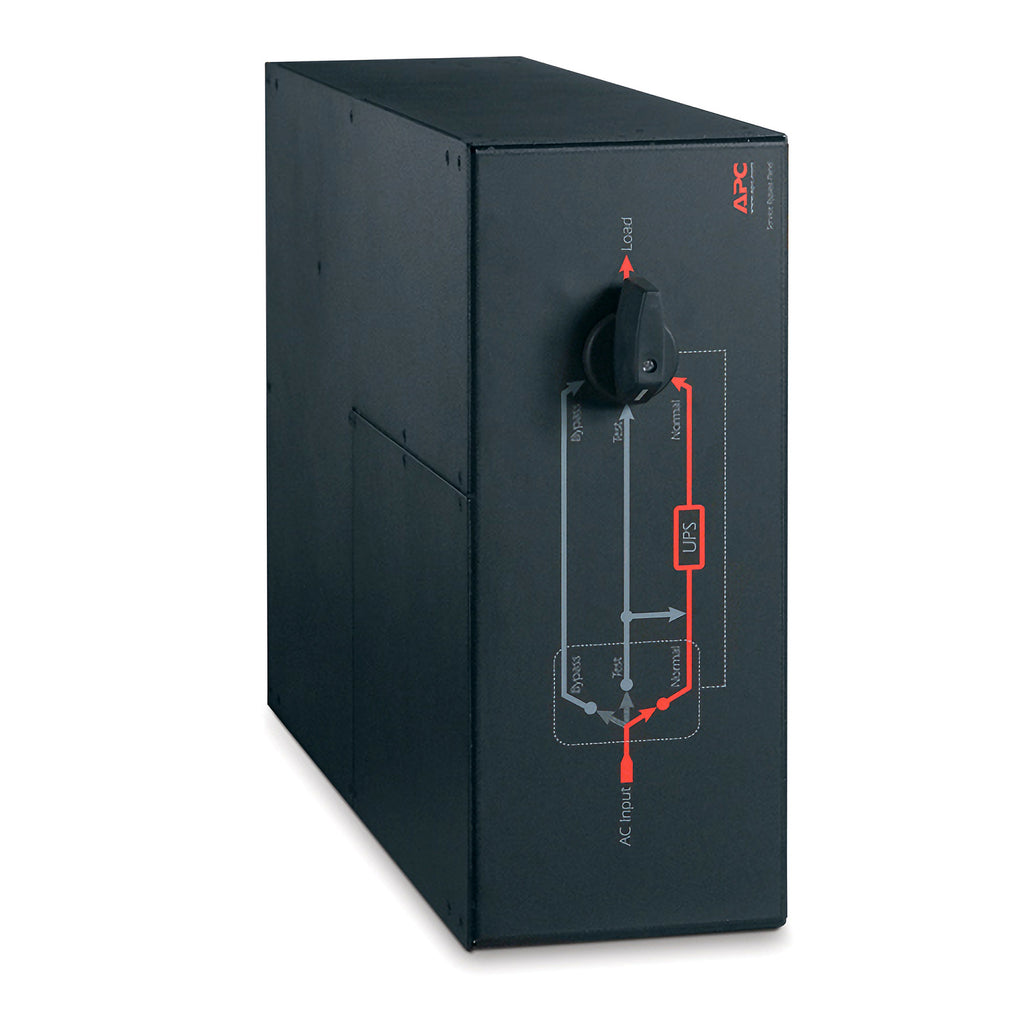

The APC SBP16KRMP4U is a 4U rackmount service bypass panel designed for seamless integration with APC Smart-UPS, Symmetra, and InfraStruXure® Type A systems. Supporting 200/208/240V power and up to 100A of current, this panel enables easy maintenance without system downtime via a make-before-break (MBB) mechanism. With six NEMA L14-30R outlets, hardwire input, and robust circuit breaker protection, it provides reliable power transfer with minimal interruption. Engineered for demanding IT environments, it ensures uptime and operational continuity.
| Category | Details |
|---|---|
| Input Voltage | 200/208/240V |
| Input Frequency | 50/60 Hz |
| Input Connector Type | 1x Hard Wire 3-wire (2PH + G), 1x 4-wire (2PH+N+G) |
| Maximum Input Current | 100 A |
| Output Voltage | 200/208/240V |

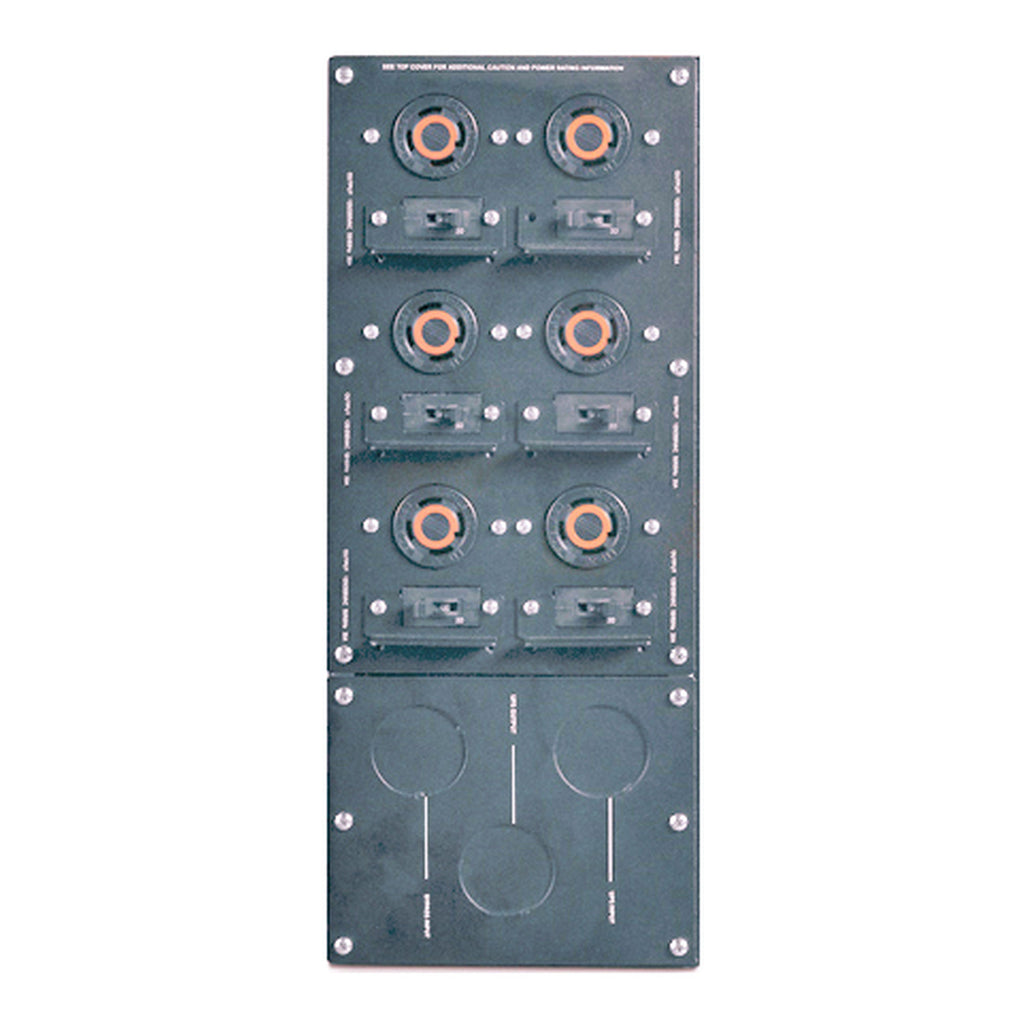

| Output Connectors | 6x NEMA L14-30R |
| Max Current per Phase | 100 A |
| Power Capacity | 20,000 VA |
| Efficiency | 99% |

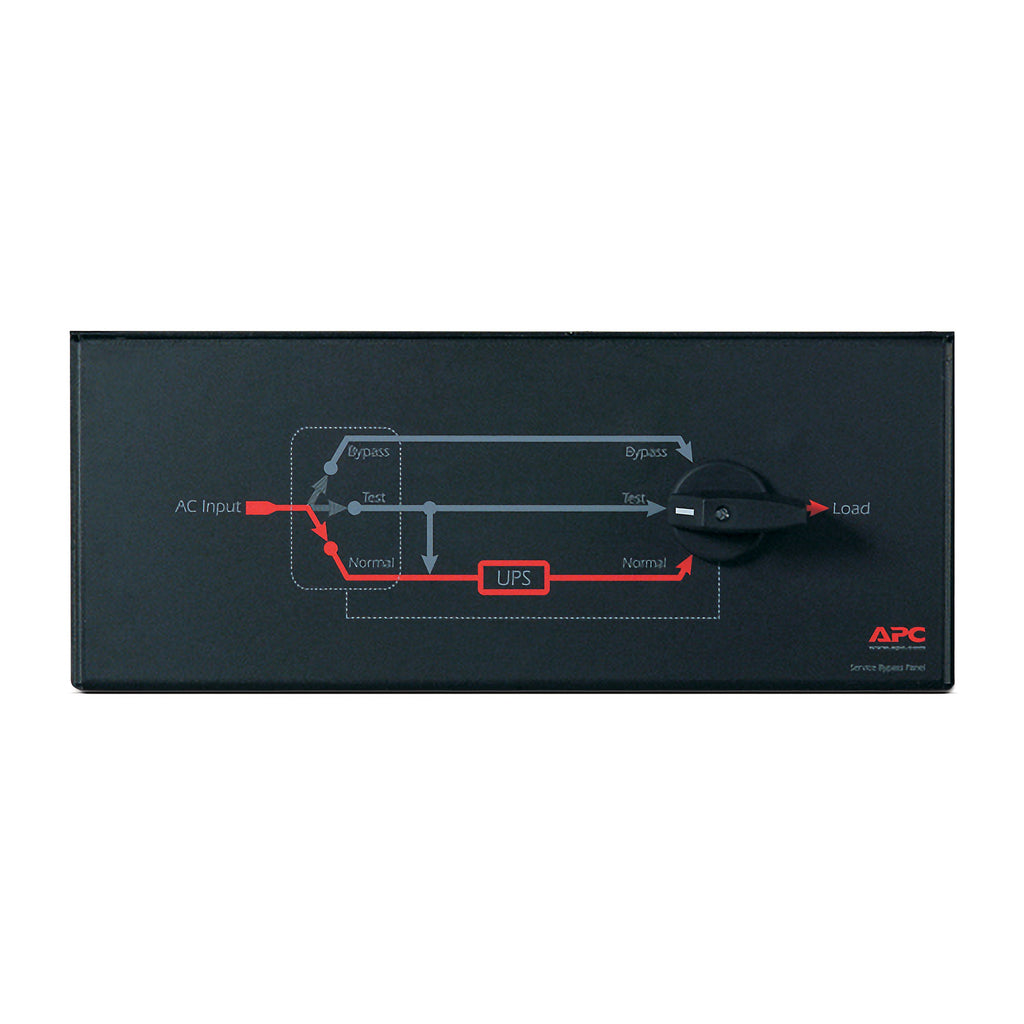

| Bypass Type | Make-before-break (MBB) |
| Form Factor | 4U Rackmount |
| Color | Black |
| Dimensions (H x W x D) | 7.01 x 17.01 x 26.50 in (17.8 x 43.2 x 67.3 cm) |
| Weight | 51.10 lbs (23.18 kg) |
| Mounting | Front, lower rack mounting |
| Certifications | CSA, GOST |
| Operating Temp Range | -4 to 122 °F (-20 to 50 °C) |
| Humidity Range | 0–95% (operating & storage) |
| Altitude | Up to 15,000 ft (operating) |
| Included Accessories | Installation guide, user manual, rack brackets |
| Warranty | 2 years (parts only) |
