Description

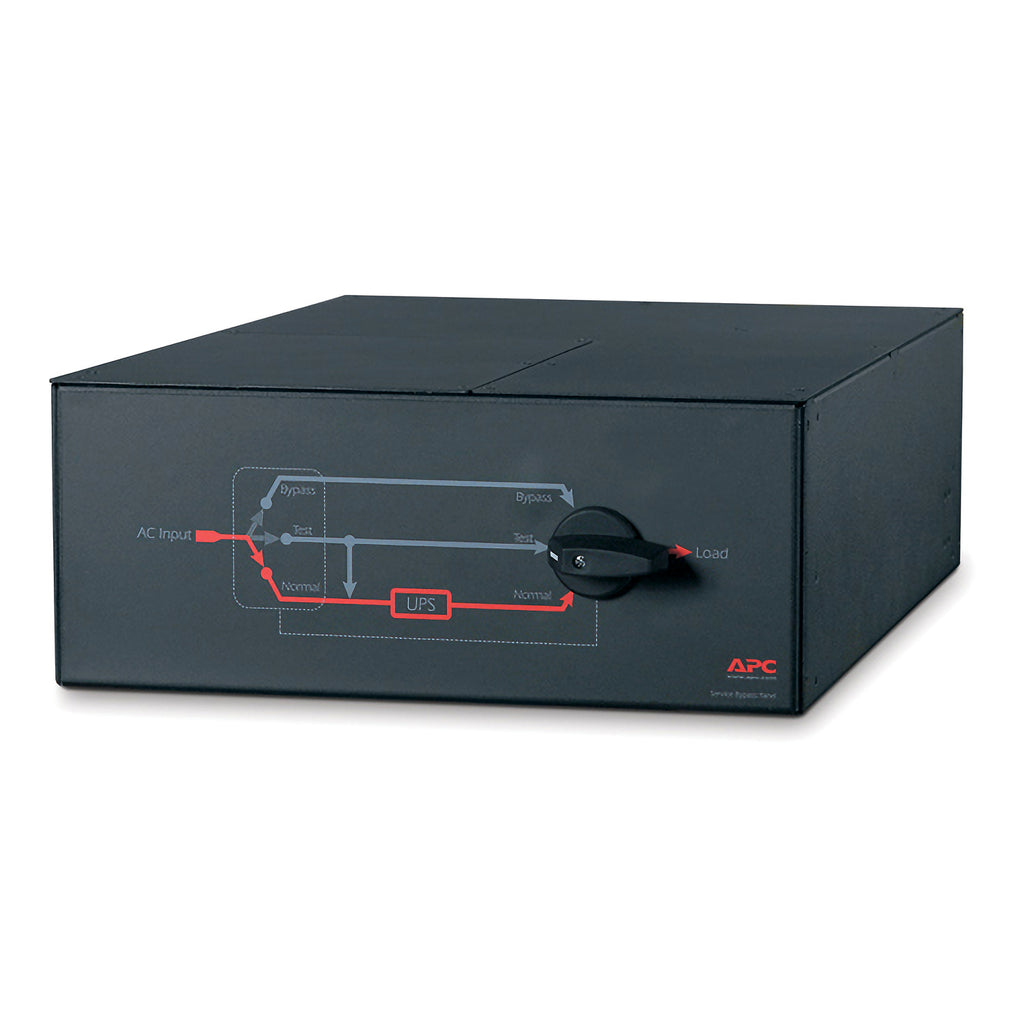

Ensure uninterrupted power protection with the APC SBP16KP Service Bypass Panel, designed for 20kVA UPS systems. Compatible with APC InfraStruXure®, Smart-UPS®, and Symmetra™ units, this 4U rack-mountable panel supports hardwired input/output connections and a manual maintenance bypass mechanism (MBB). Built for high-performance environments, it features wide voltage compatibility, 100A max current, and superior reliability. Ideal for mission-critical power continuity during UPS maintenance.
| Category | Details |
|---|---|
| Model | SBP16KP |
| Brand | APC by Schneider Electric |
| Product Type | Maintenance Bypass Panel |
| Application | For InfraStruXure, Smart-UPS, and Symmetra UPS |
| Voltage Compatibility | 200V, 208V, 230V, 240V, 480V (Input); 120–240V (Output) |
| Input Frequency | 50/60 Hz |
| Input Connections | Hard Wire: 3-wire (H N + E), 2PH + G, 2PH+N+G, 3PH+N+G |
| Output Connections | Same as input; hardwire only |
| Load Capacity | 20,000 VA |
| Max Current | 100 A |
| Form Factor | 4U Rack Mountable |
| Included Accessories | Installation Guide, Mounting Brackets, User Manual |
| Color | Black |
| Certifications | CSA, GOST |
| Standards | EN/IEC 62040-1, EN/IEC 62040-2 |
| Operating Temp | -20°C to 50°C (-4°F to 122°F) |
| Humidity Tolerance | 0–95% RH (Operating & Storage) |
| Altitude (Operating) | Up to 15,000 ft |
| Efficiency | 99% |
| Dimensions (H x W x D) | 7.01 x 17.01 x 25.98 in (17.8 x 43.2 x 66 cm) |
| Net Weight | 47.09 lbs (21.36 kg) |
| Warranty | 2 Years (Parts Only) |
| GTIN | 731304212645 |
