Description

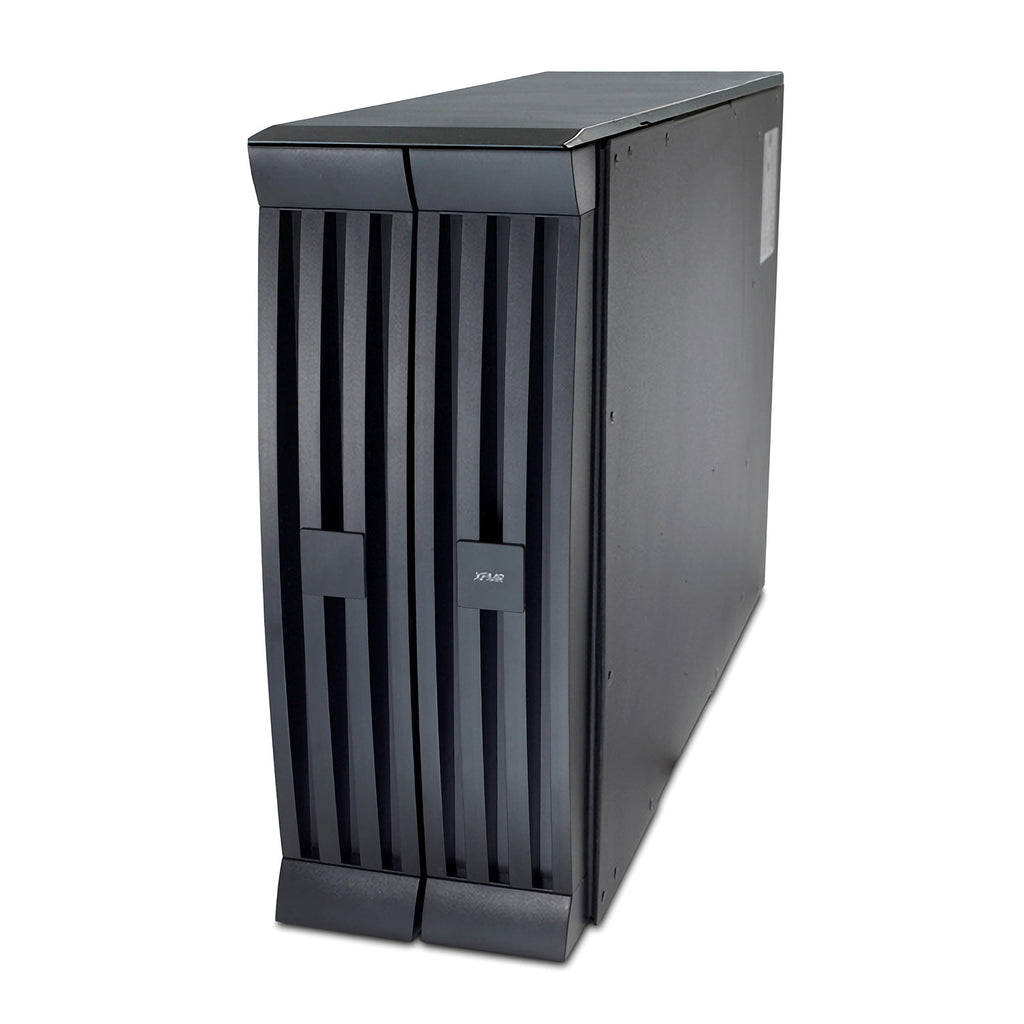

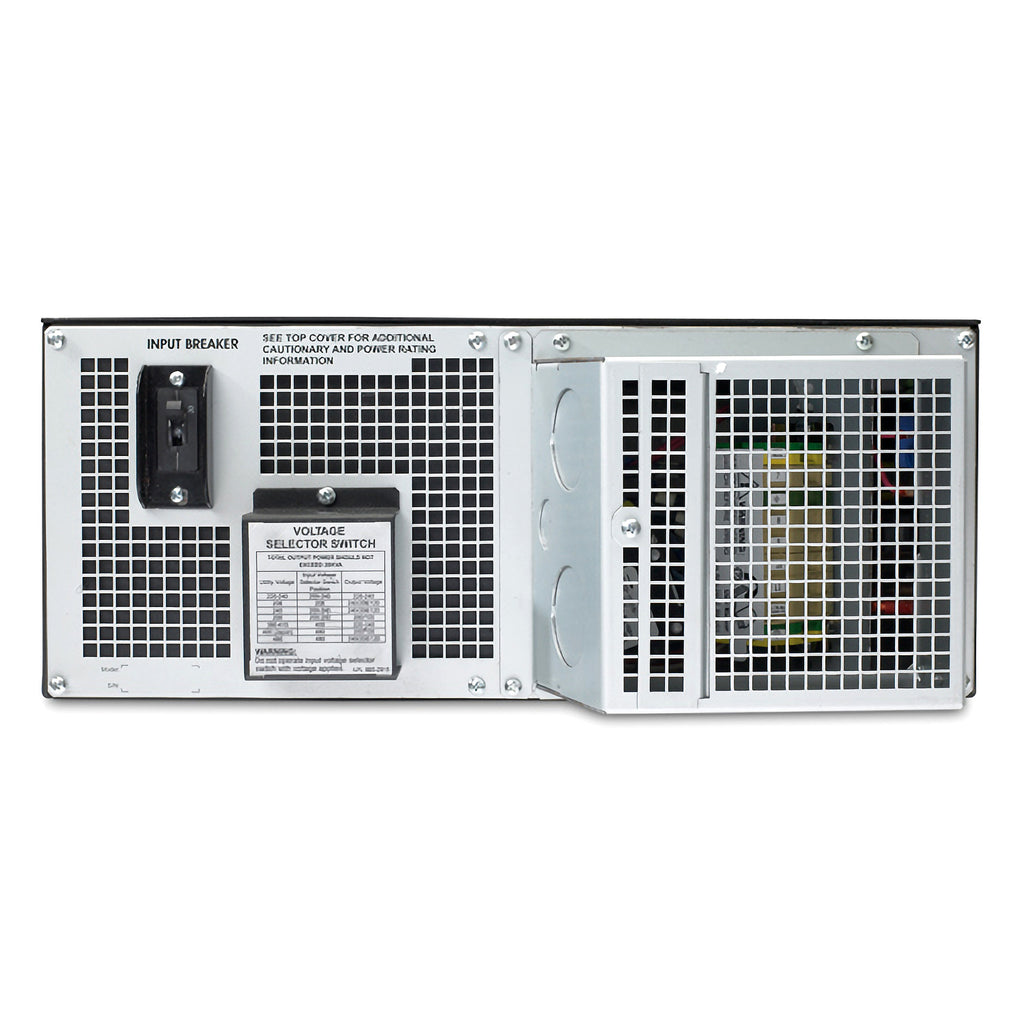

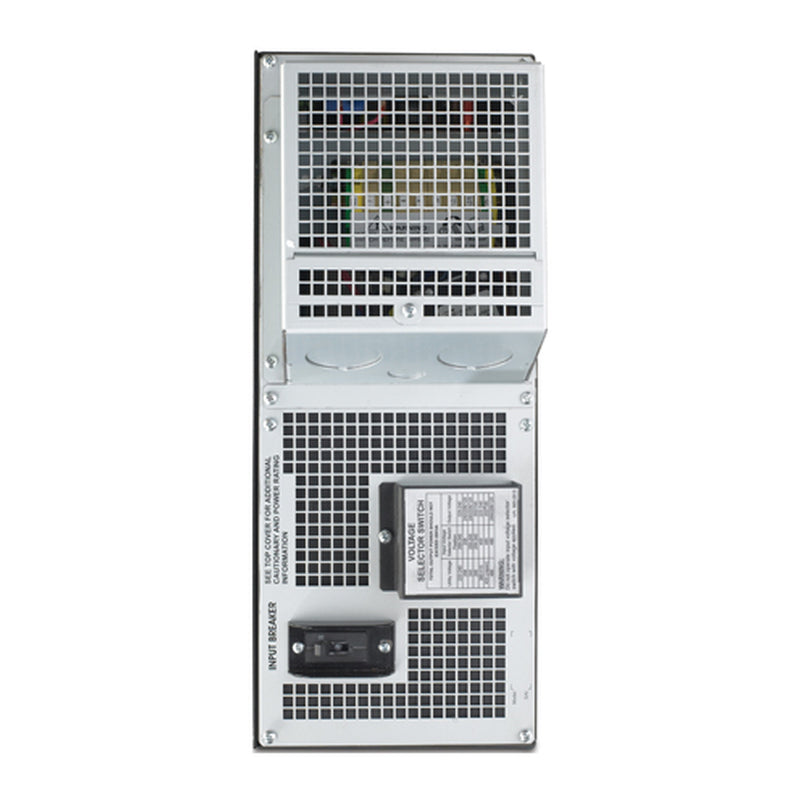

The APC APTF20KW01 is a 20kVA isolation transformer designed for rack-mounted installations in data centers and IT environments. It provides safe step-down voltage conversion from high voltage (208/200V) to low voltage (120/100V), supporting various AC equipment. The transformer is enclosed in a 4U form factor and includes a complete mounting and documentation kit.
| Category | Details |
|---|---|
| Model | APTF20KW01 |
| Power Capacity | 20kVA |
| Transformer Type | Isolation, Step-down |
| Input Voltage | 100V, 120V, 200V, 208V, 230V, 400V 3-phase |
| Output Voltage | 100V, 120V, 200V, 208V, 230V, 220V, 240V, 380V, 415V |
| Input Connectors | Hard Wire 3-wire (2PH + G), (1PH+N+G), 4-wire (2PH+N+G) |
| Output Connectors | Same as input |
| Rack Units | 4U |
| Mounting | Rack-mount (front/side), lower preferred |
| Dimensions (H x W x D) | 6.89 x 17.01 x 29.80 in (17.5 x 43.2 x 75.7 cm) |
| Net Weight | 260.54 lb (118.18 kg) |
| Max Current Draw | 100A per phase |
| Efficiency | 96% |
| Frequency | 45–65 Hz |
| Certifications | CSA, UL Listed |
| Standards | EN 55022/24, EN 60950, EN 61000 series |
| Operating Temp | 32–104°F (0–40°C) |
| Humidity (oper/storage) | 0–95% |
| Altitude (oper/storage) | 0–10,000 ft (0–3048 m) |
| Included Equipment | Rack brackets, Hardwire panel, CD, Install/User Guides |
| Warranty | 2 Years – Repair or Replace |
| GTIN | 731304242222 |
