Description

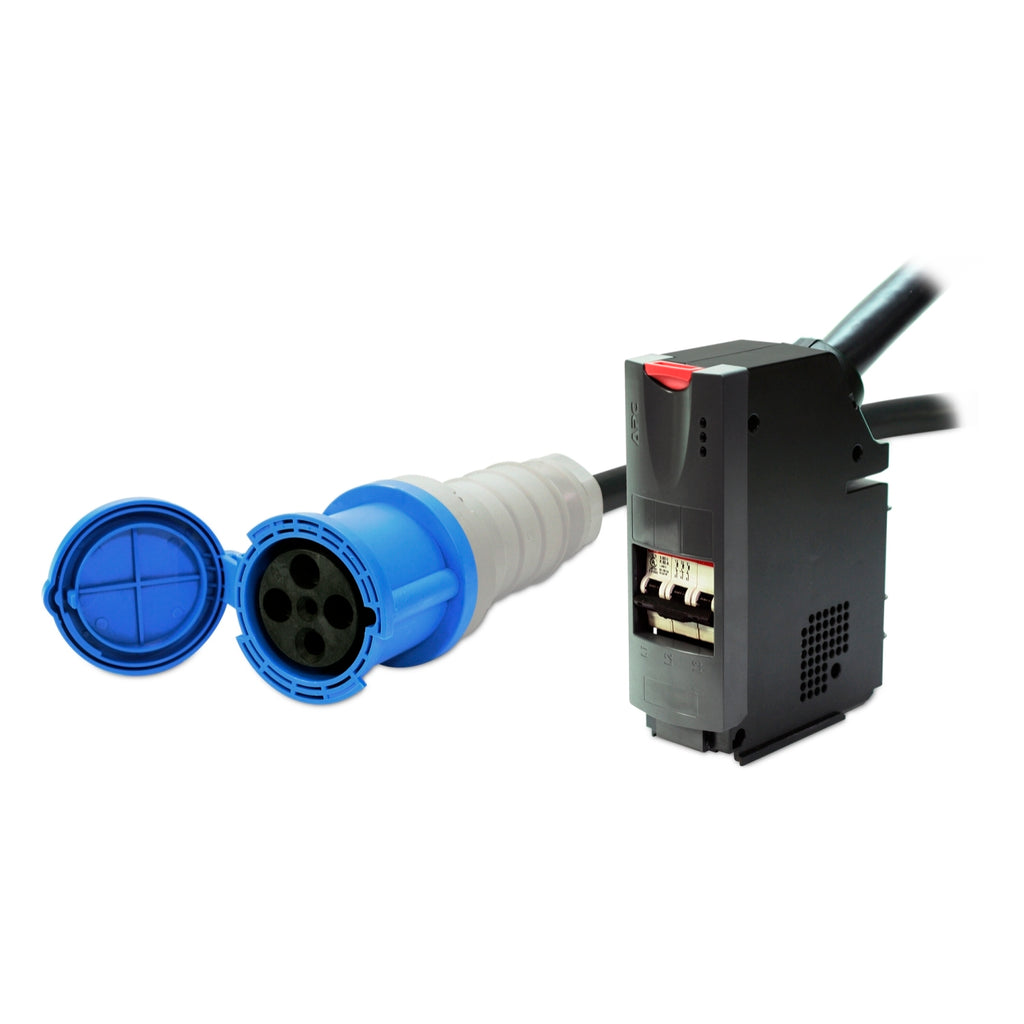

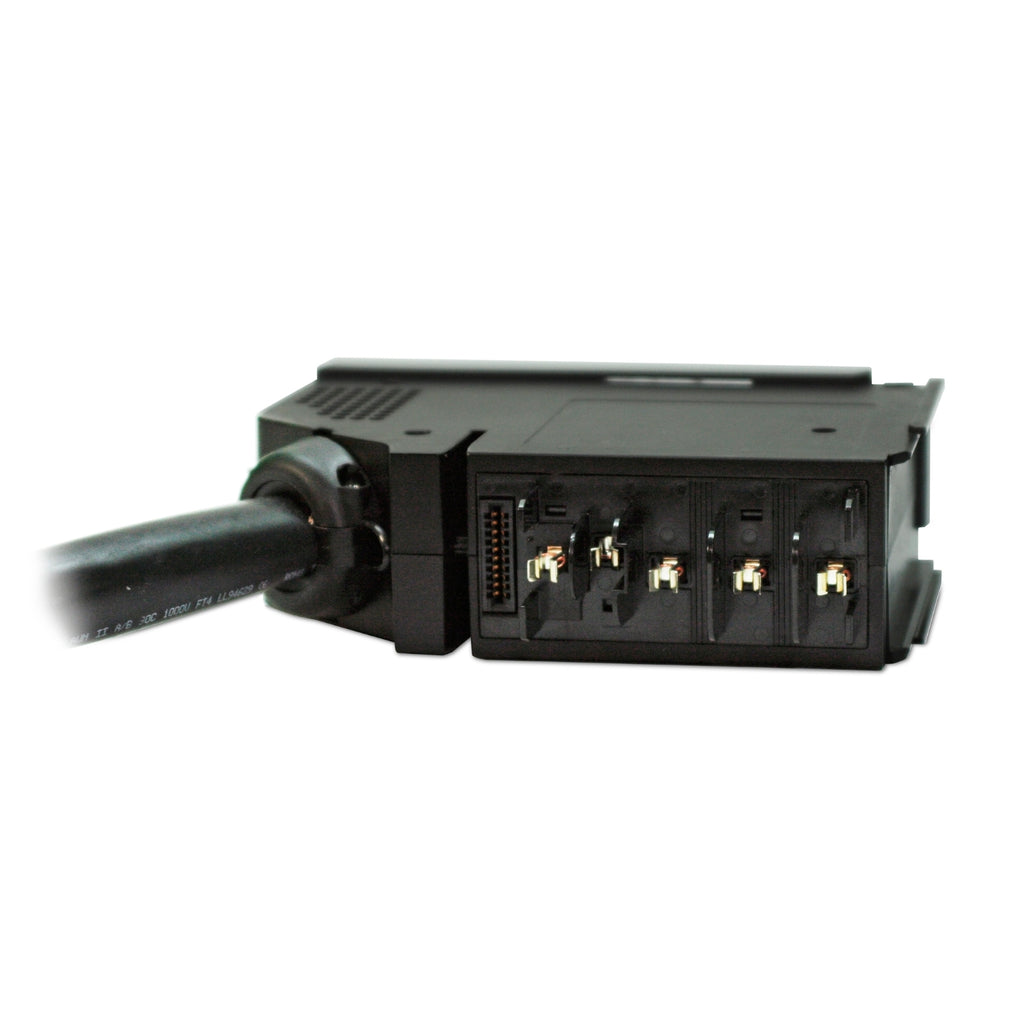

The APC PDM3460IEC309-680 Power Distribution Module is designed for seamless deployment and expansion of APC Modular Power Distribution Units. This 60A, 3 Pole 4 Wire module with a 680cm power cord uses an IEC 309 connector and supports efficient power delivery in high-density IT environments. With built-in safety features like breaker latch disconnection, positive-locking connectors, and touch-point isolation, it ensures safe operations. Built-in monitoring provides real-time visibility into power usage for improved management.
| Specifications | Details |
|---|---|
| Manufacturer | Schneider Electric SA |
| Brand Name | APC by Schneider Electric |
| Part Number | PDM3460IEC309-680 |
| Product Type | Power Distribution Module |
| Application | Modular Power Distribution Unit (PDU) Systems |
| Connector Type | IEC 309, 60A, 3P+PE |
| Poles/Wires | 3 Pole / 4 Wire |
| Input Voltage | 220V AC |
| Output Voltage | 208V AC |
| Maximum Current Draw | 60 Amps per phase |
| Receptacles | 1 |
| Cord Length | 680 cm |
| Height | 5 in (127 mm) |
| Width | 17.5 in (445 mm) |
| Depth | 16 in (406 mm) |
| Weight | 11.4 lb (5.17 kg) |
| Environmental Compliance | RoHS Compliant |
| Included Accessories | Installation Guide |
| Warranty | 1 Year Limited Warranty |
