Description
Scalable 3-Phase Power Distribution for Demanding Data Environments

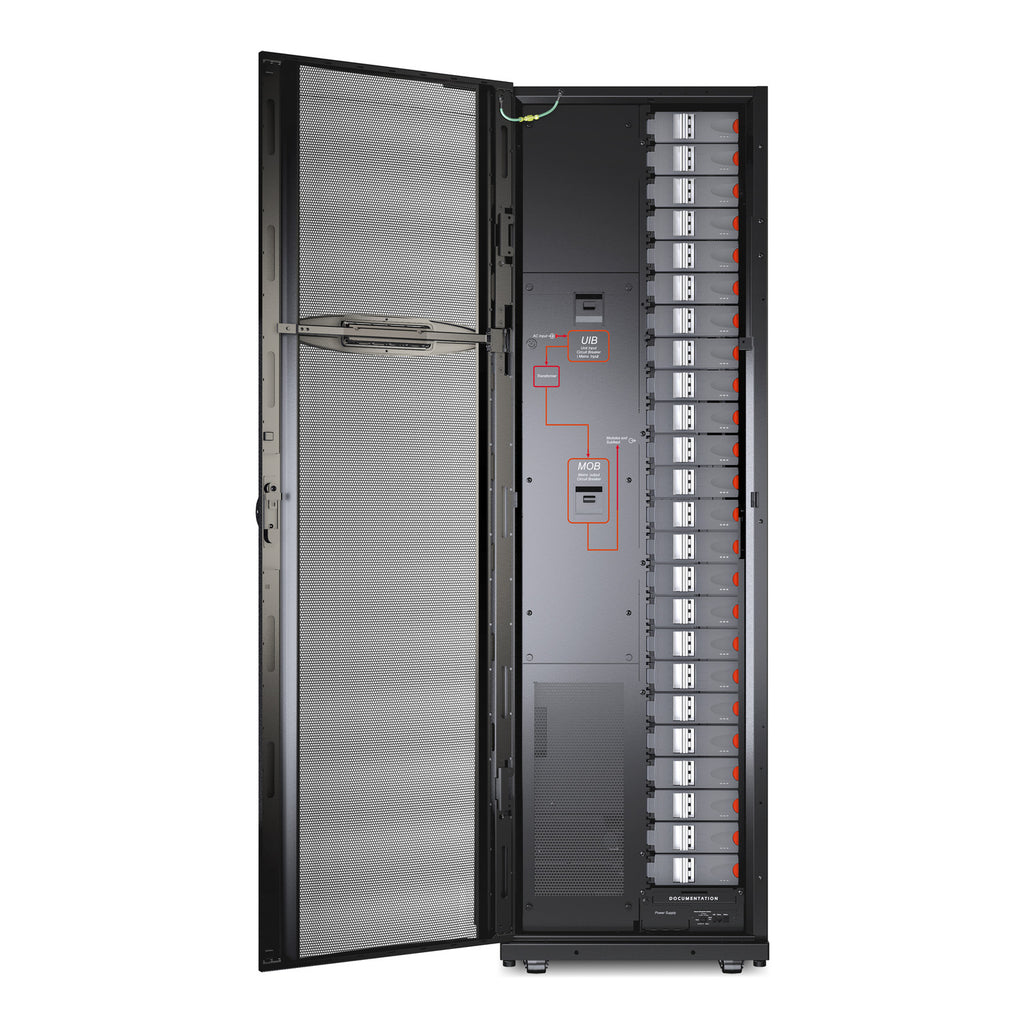

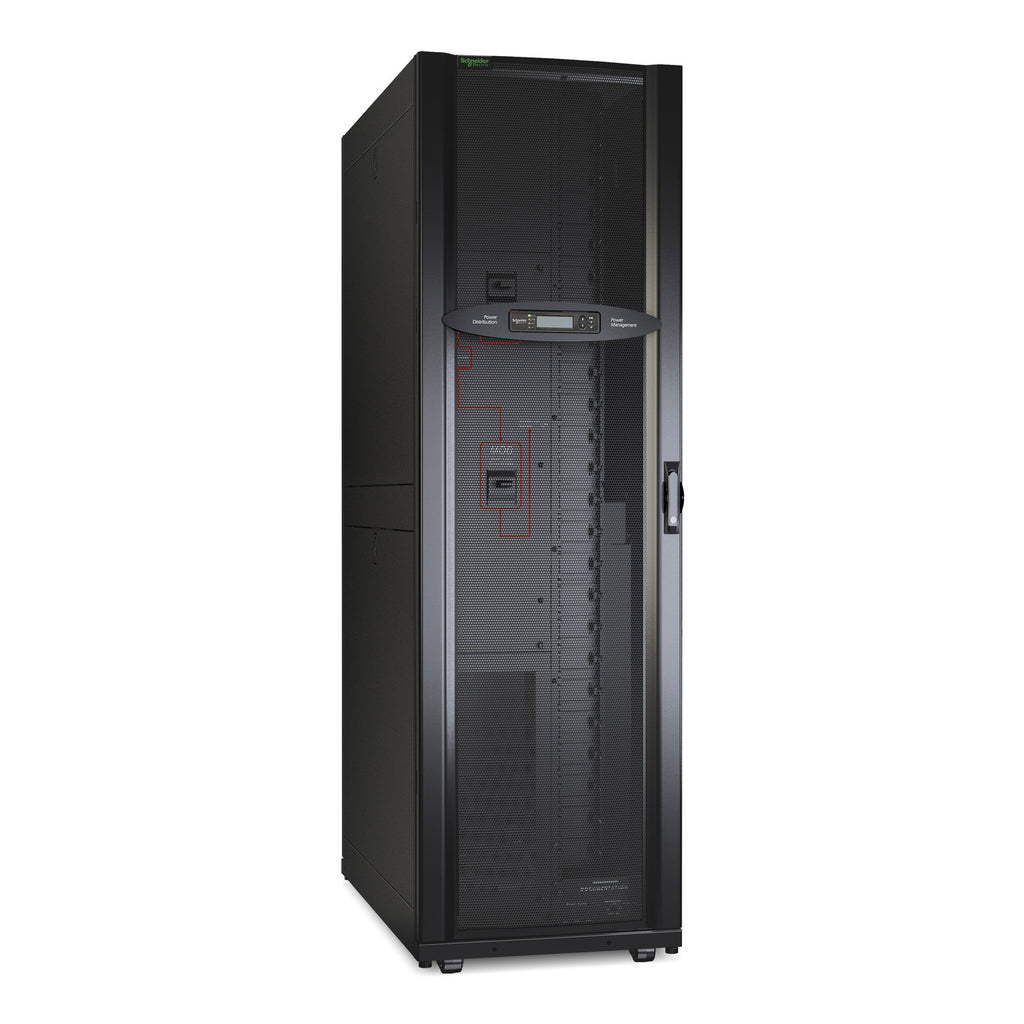

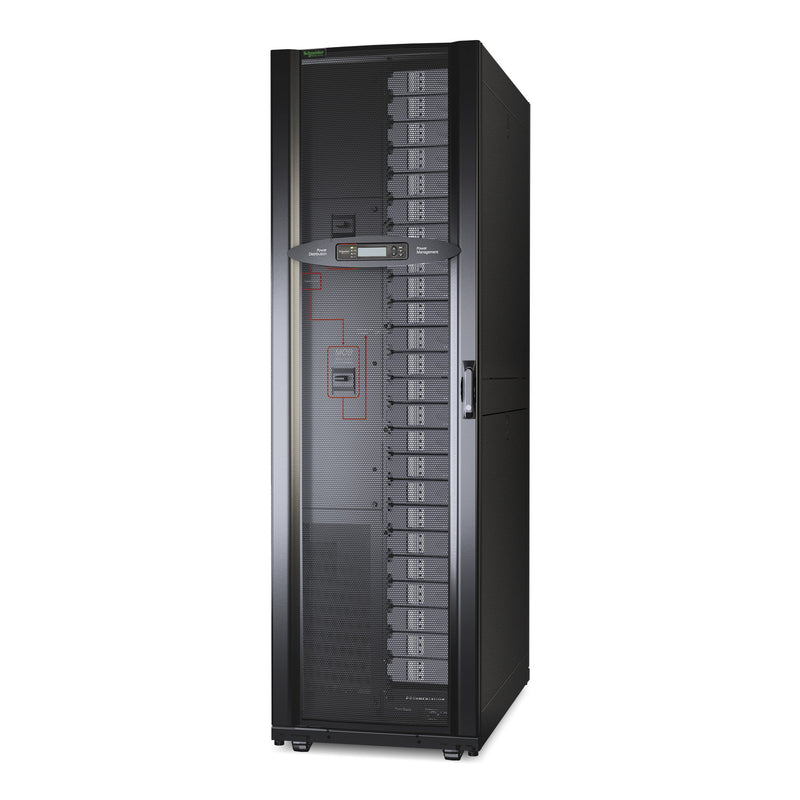

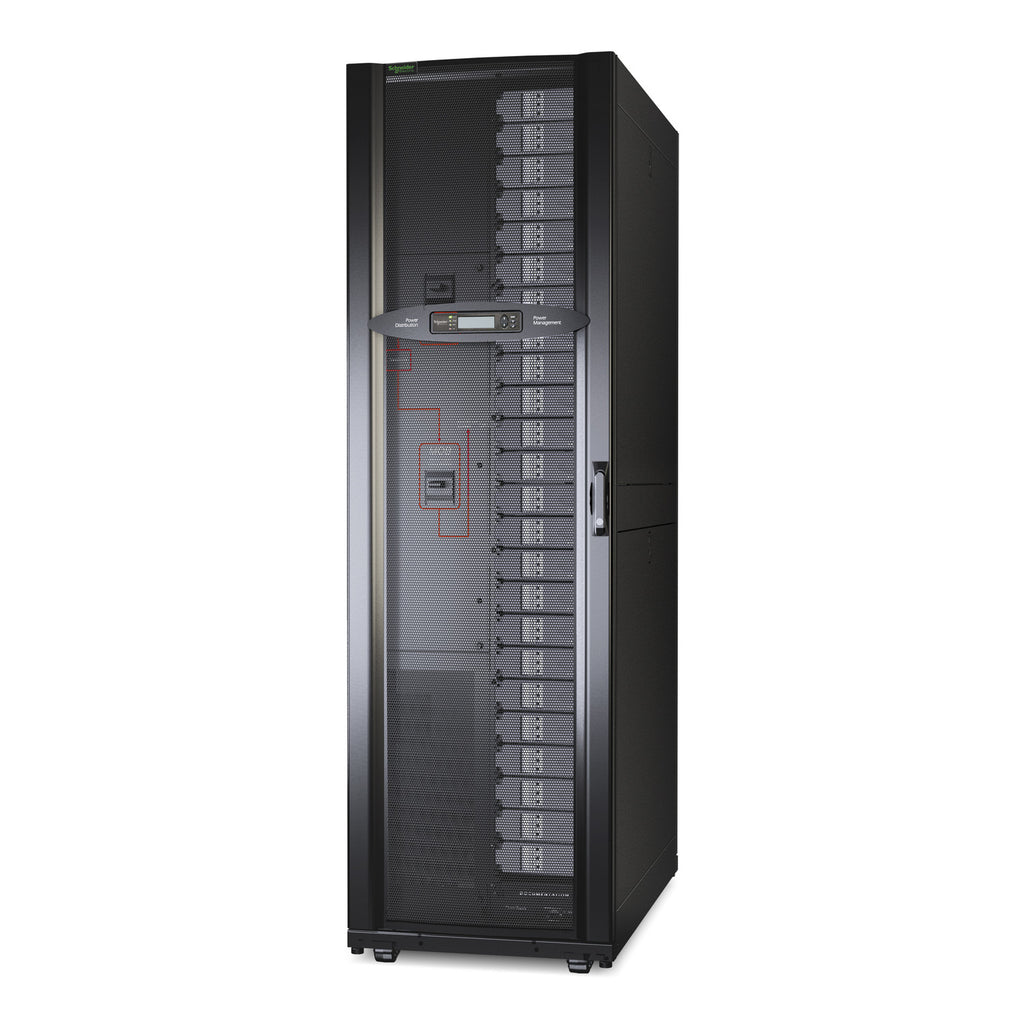

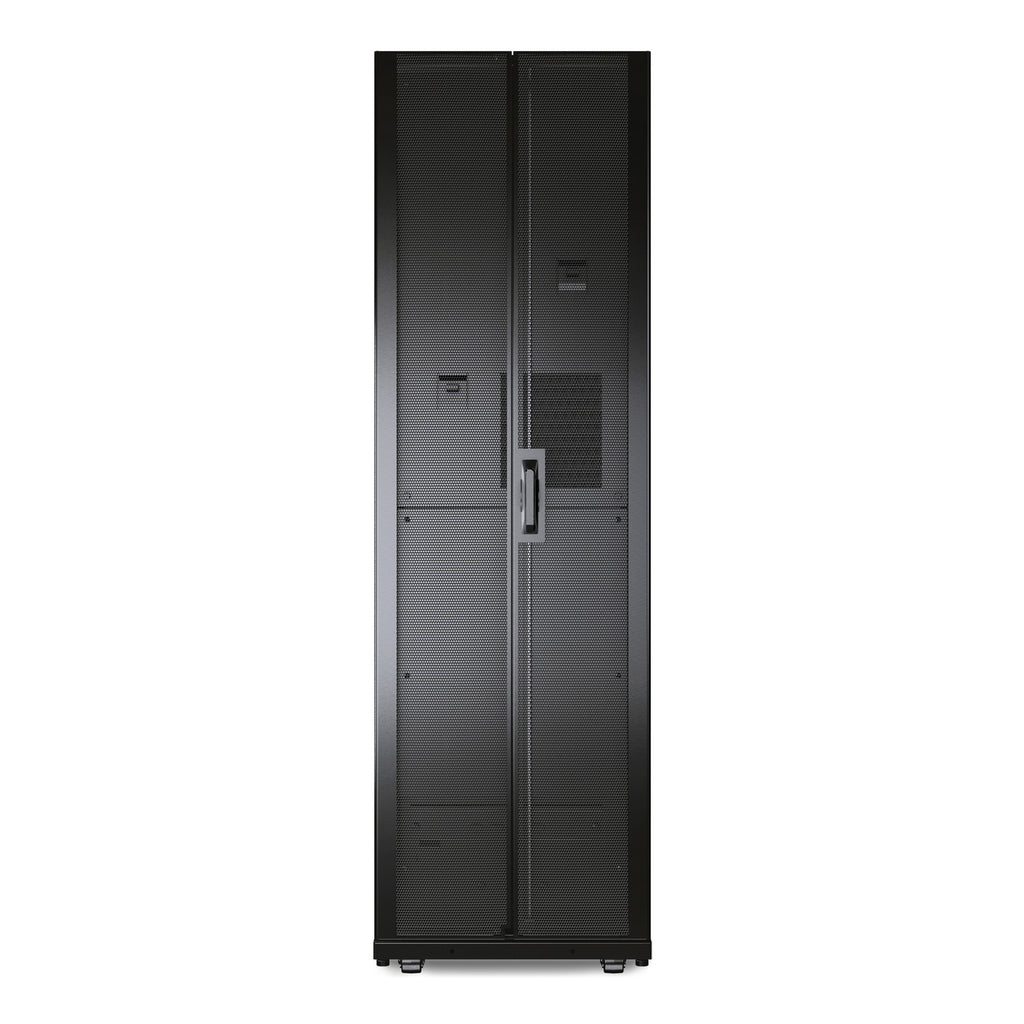

The APC PDPM150L6F is a high-capacity 144kVA Modular Power Distribution Unit featuring a built-in isolation transformer for voltage conversion from 600V to 208V. Designed to support modern data centers, its modular design allows rapid circuit additions, simplifies power management, and ensures agile scalability. Equipped with 72 poles and two subfeed breakers, it offers flexibility for growing IT loads while maintaining high efficiency and availability. Integrated monitoring and auto-detection features are compatible with StruxureWare Data Center Expert.
Perfect for facilities requiring robust, high-density, and easily expandable power distribution.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | PDPM150L6F |
| Power Capacity | 144,000 VA (144 kVA) |
| Input Voltage | 600V, 3-phase |
| Output Voltage | 208V, 3-phase |
| Input Frequency | 60 Hz |
| Max Line Current | 141 A |
| Poles | 72 |
| Subfeed Breakers | 2 |
| Mounting | Floor-standing, front location |
| Dimensions (HxWxD) | 79.02 x 23.62 x 42.09 in (200.7 x 60 x 106.9 cm) |
| Weight | 1,942.3 lb (881 kg) |
| Color | Black |
| Operating Temperature | 23°F to 104°F (-5°C to 40°C) |
| Humidity (Operating/Storage) | 0–95% RH |
| Altitude (Operating) | Up to 9,842 ft |
| Compliance | UL 60950-1, cUL, CSA |
| Included Accessories | Installation Guide, Network Management Card |
| Warranty | 1-Year Repair or Replace |
| GTIN | 731304295402 |
