Description

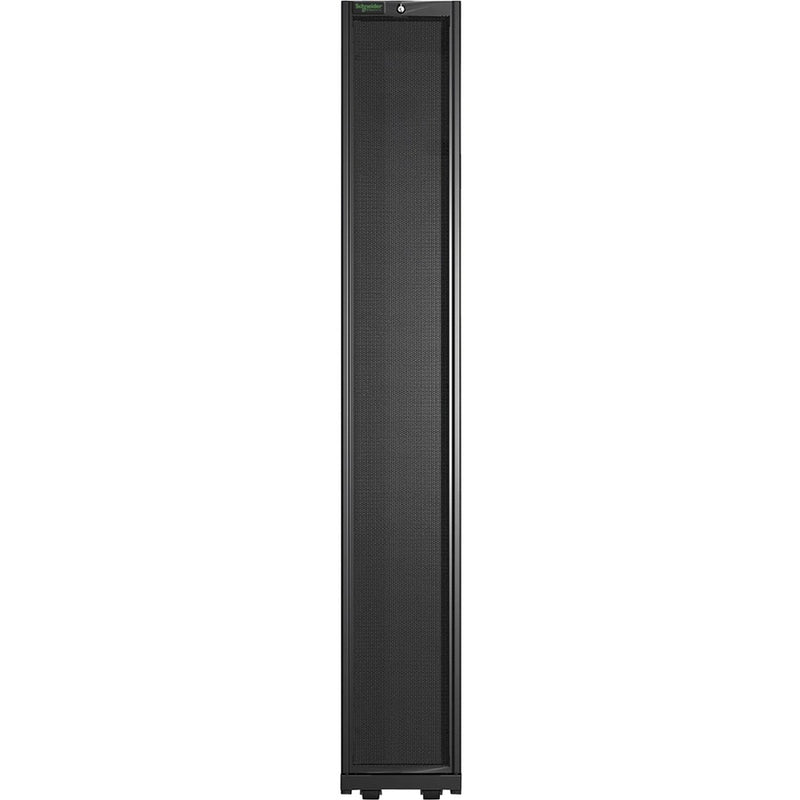

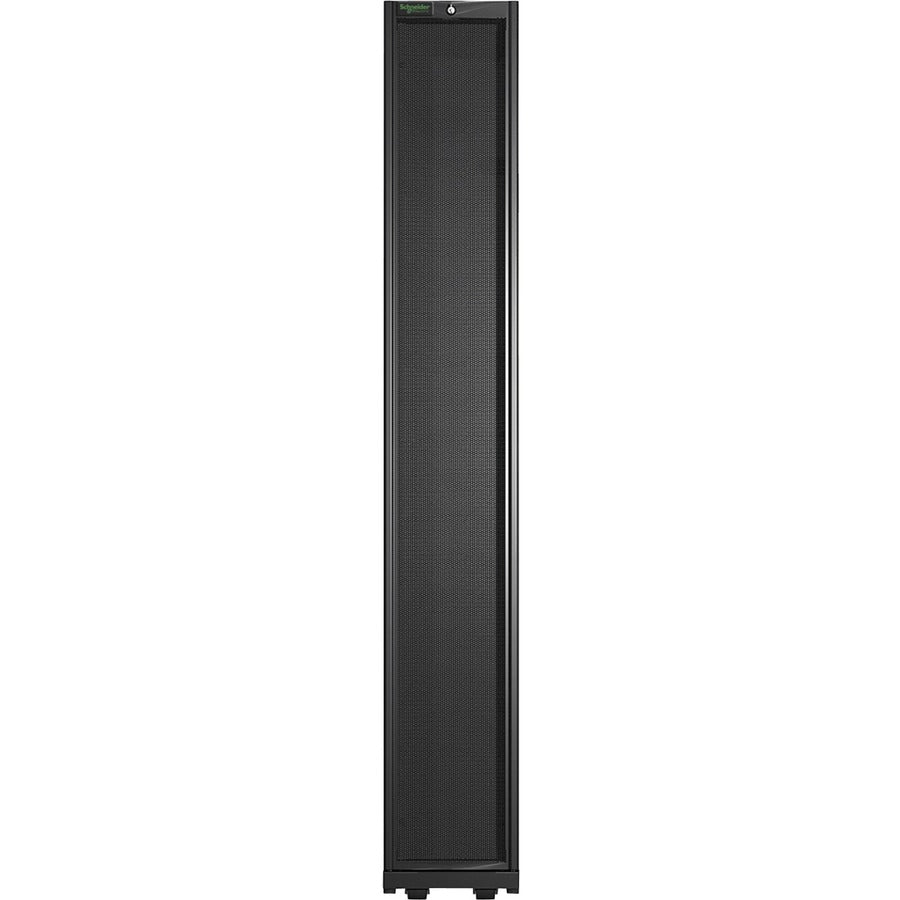

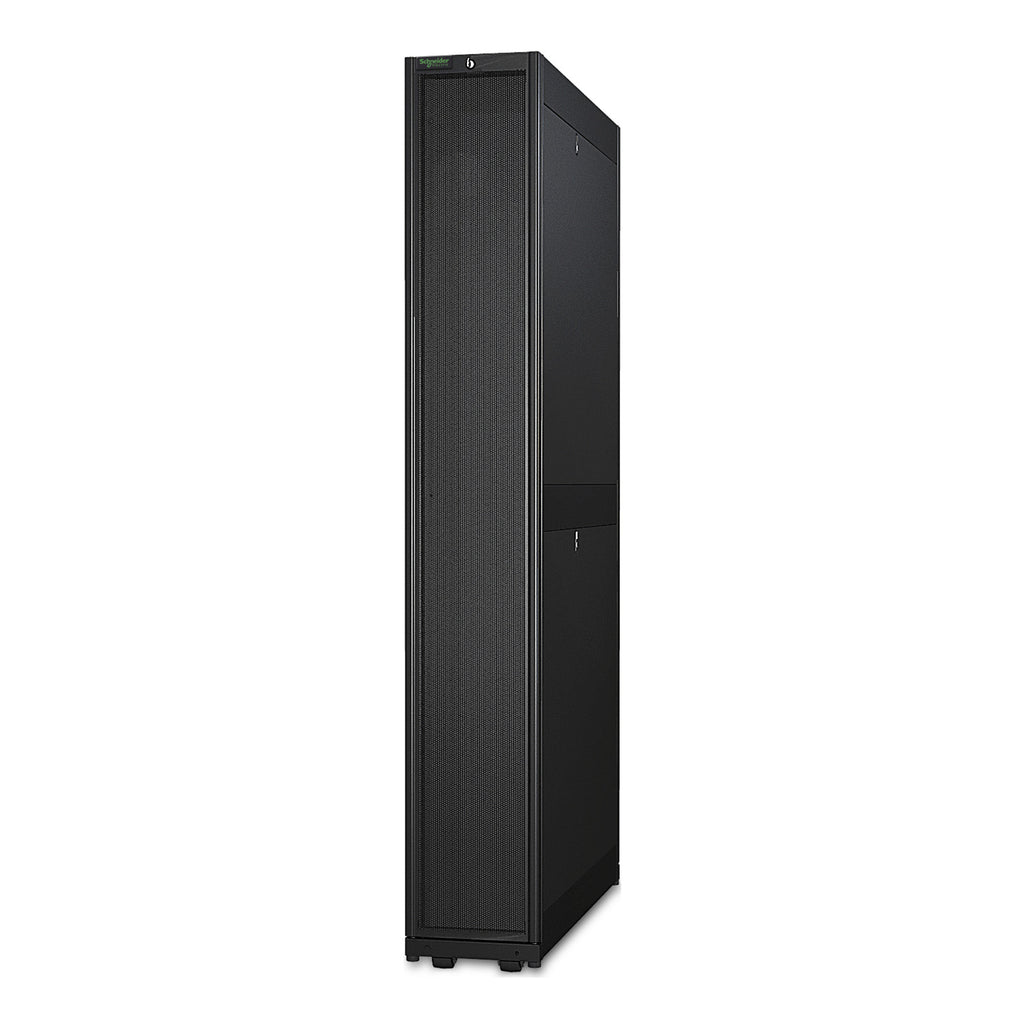

The APC PDPM150SC is a modular side car unit designed for flexible and scalable power distribution in high-density data centers. Supporting up to 150kVA, it provides bottom feed entry in a compact 300mm-wide footprint. Compatible with multiple 3-phase voltage levels, it enables seamless integration into existing power architectures. Featuring high reliability and standards compliance, this unit simplifies installation with a hardwired 5-wire input and robust power handling up to 200A.
| Specification | Details |
|---|---|
| Model Number | PDPM150SC |
| Input Voltage | 208V / 480V / 600V 3-phase |
| Output Voltage | 208V / 415V / 480V / 600V 3-phase |
| Input Connection Type | Hardwire, 5-wire (3P + N + E) |
| Input/Output Current Limit | 200A |
| Frequency | 60 Hz |
| Mounting Mode | Not rack-mountable |
| Form Factor | Bottom Feed Side Car |
| Color | Black |
| Dimensions (HxWxD) | 78.90 in x 11.81 in x 42.13 in |
| Product Weight | 295.4 lb (134 kg) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Humidity (Operating/Storage) | 0% to 95% RH |
| Altitude (Operating/Storage) | 0 to 10,000 ft |
| Compliance Standard | UL 60950-1 |
| Warranty | 1 Year Repair or Replace |
| Packaging Dimensions (HxWxD) | 84.65 in x 47.64 in x 33.39 in |
| Shipping Weight | 341.7 lb (155 kg) |
