Description

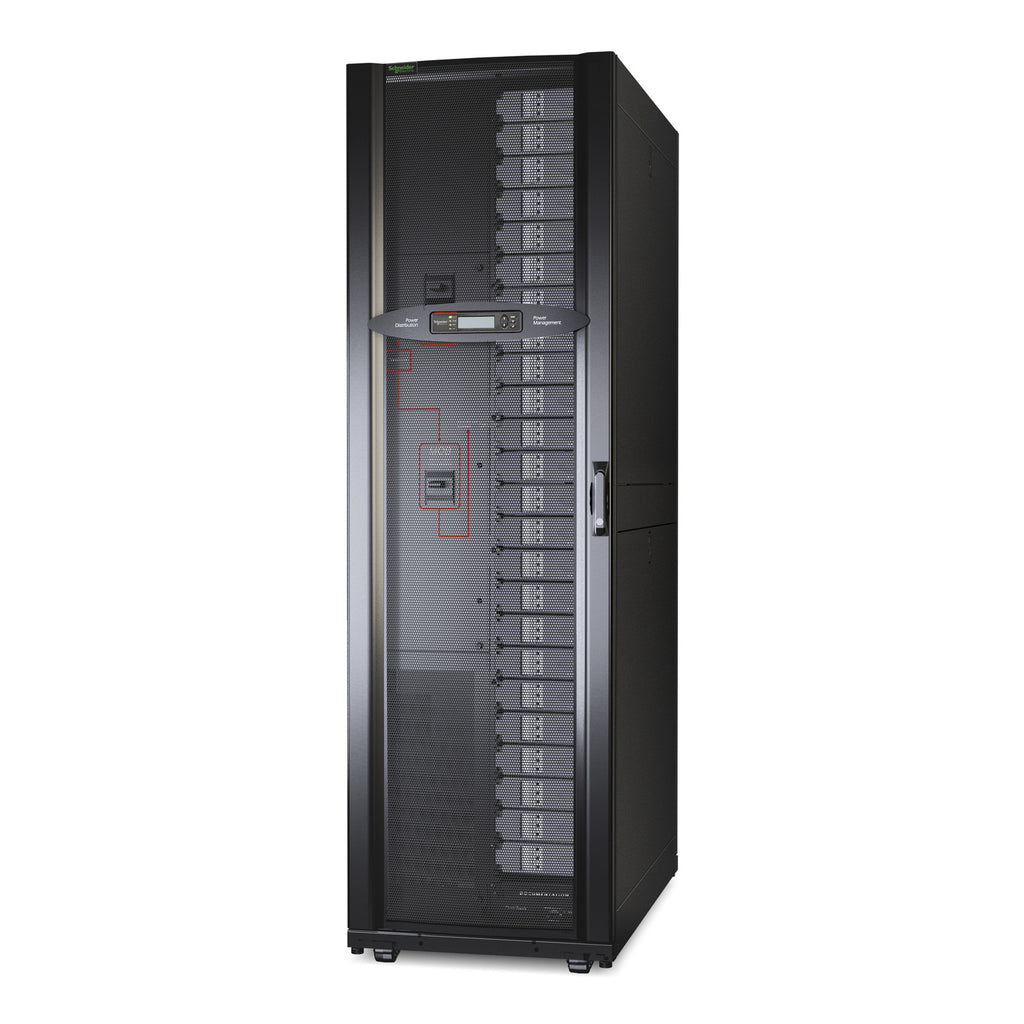

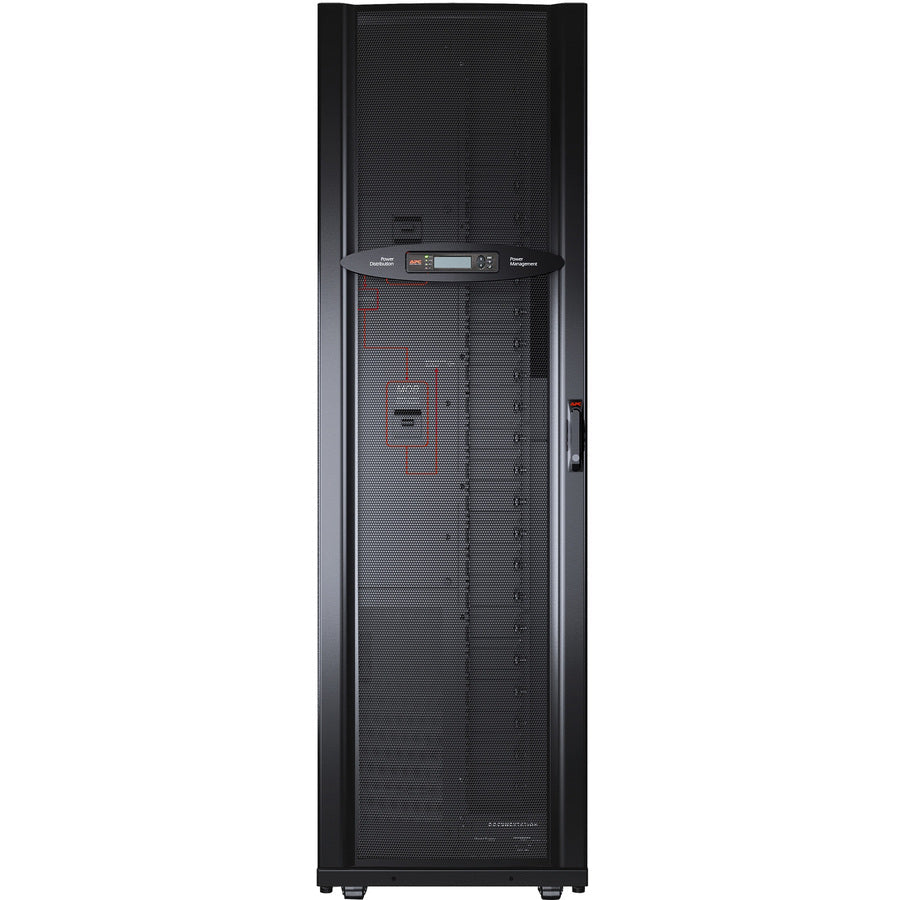

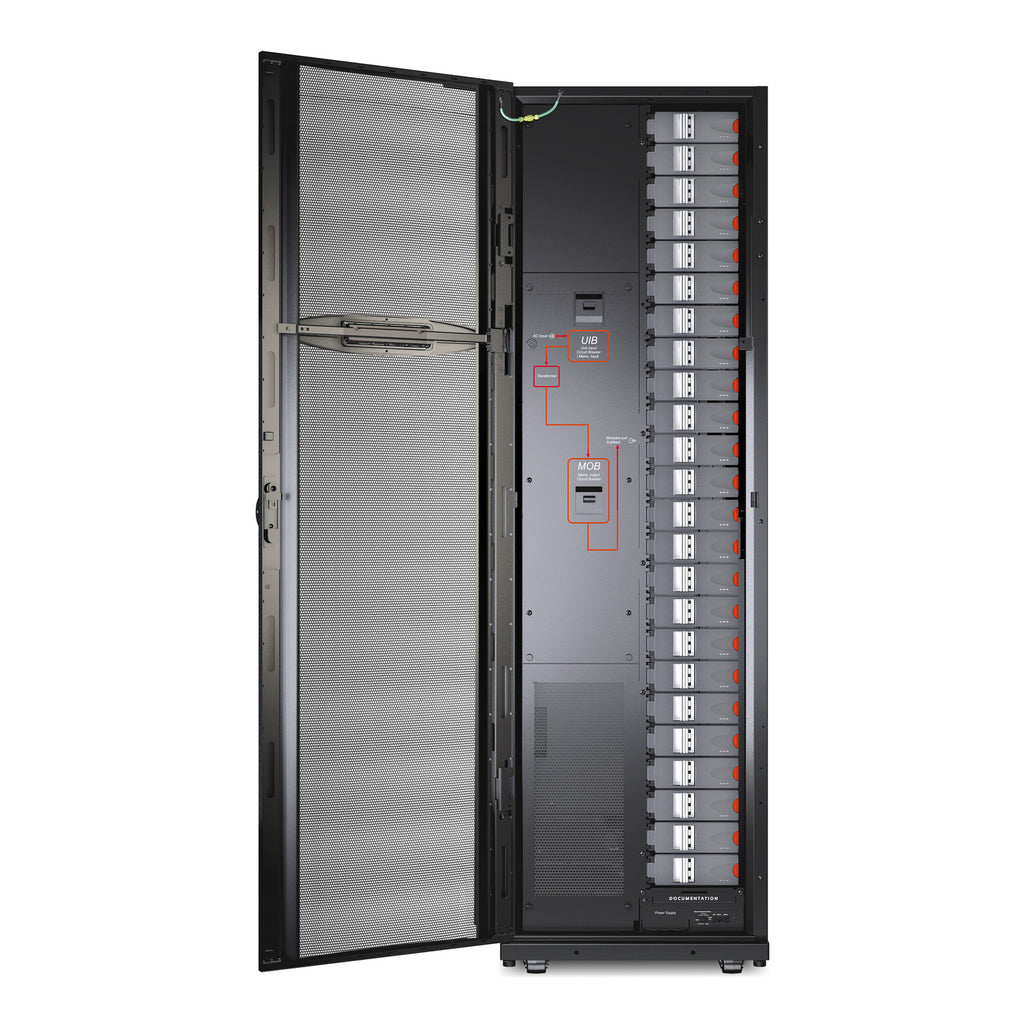

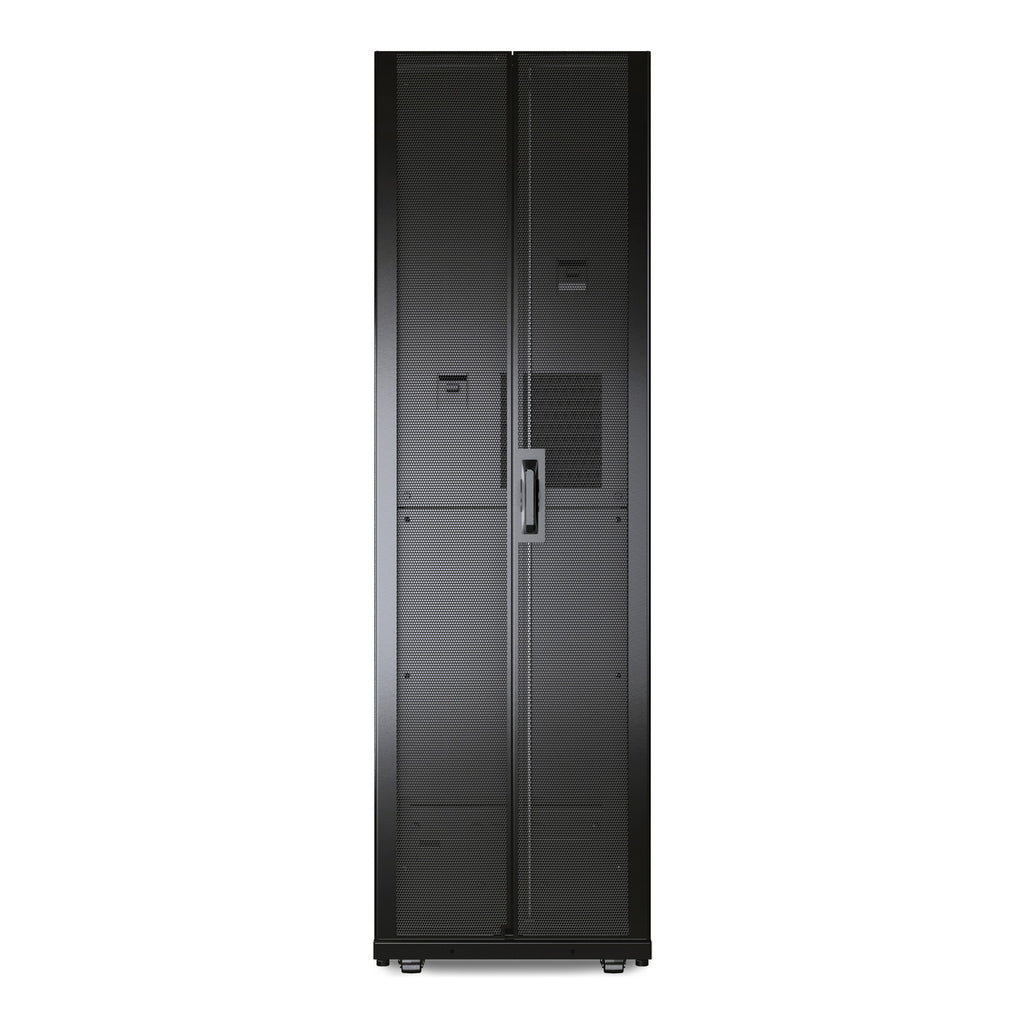

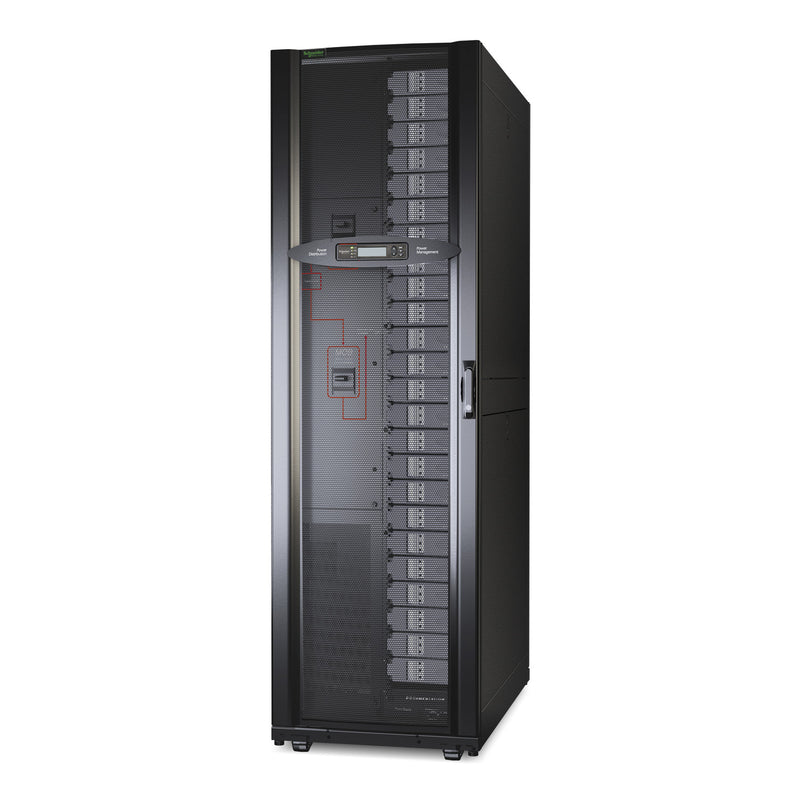

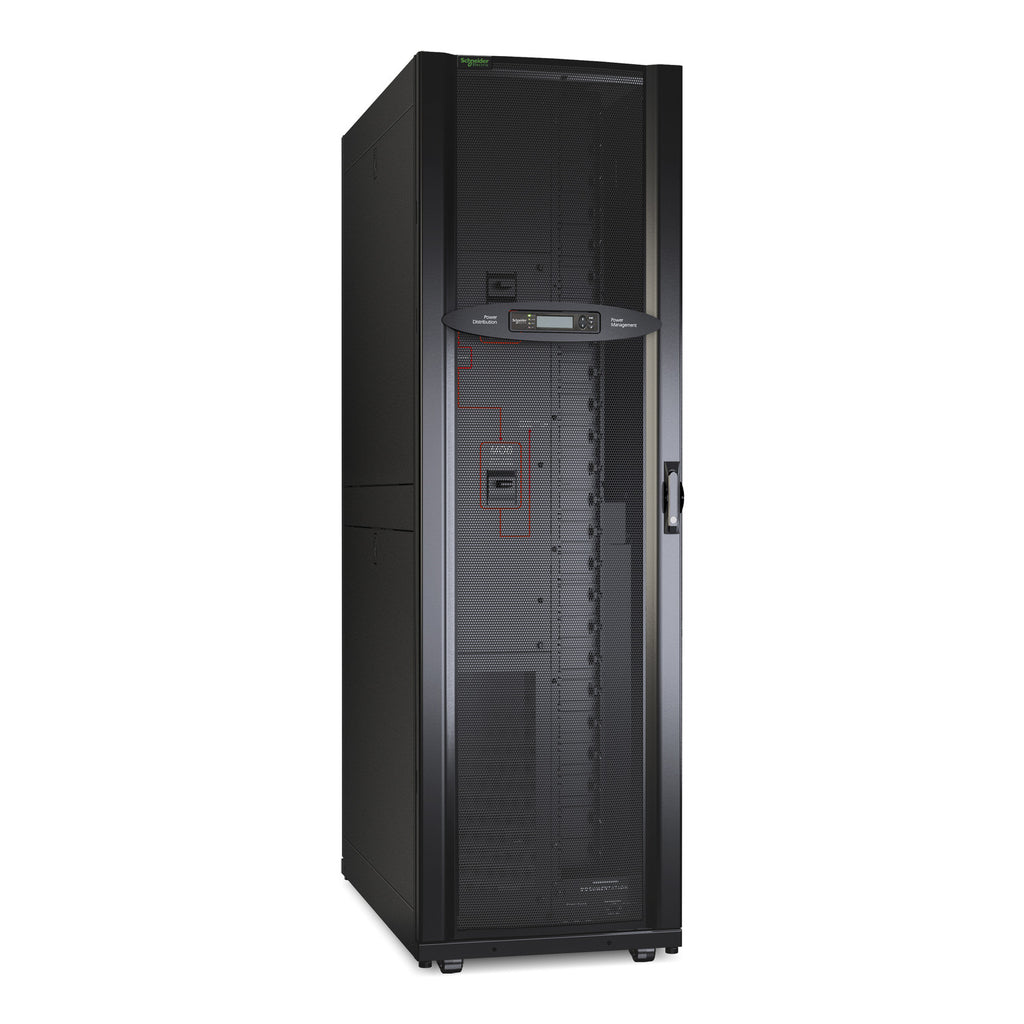

APC by Schneider Electric PDPM175G6H delivers scalable, modular power distribution for high-demand data centers. With a 175kVA capacity, 480V to 415V isolation transformer, and 72-pole design, this system supports rapid expansion, simplified circuit deployment, and enhanced uptime.
Equipped with two subfeed breakers and full integration into the StruxureWare suite, it provides metering, monitoring, and fast plug-and-play PDM installation. Designed to meet today's dynamic data center needs with flexible, high-efficiency power distribution that grows with your infrastructure.
Key Benefits:
-
175kVA scalable 3-phase power distribution
-
Integrated isolation transformer (480:415V)
-
72 poles, 2 subfeed breakers
-
Quick circuit expansion with factory-assembled modules
-
Includes Network Management Card for remote monitoring
-
Meets UL, CSA, and OSHPD standards
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | PDPM175G6H |
| Power Capacity | 175,000 VA (175kVA) |
| Input Voltage | 480V 3-phase |
| Output Voltage | 415V 3-phase |
| Input Frequency | 60 Hz |
| Max Line Current | 214 A |
| Poles | 72 |
| Subfeeds | 2 |
| Isolation Transformer | Yes (480V to 415V) |
| Protection | Circuit breakers |
| Mounting Type | Floor-standing, front access |
| Dimensions (HxWxD) | 79.02" x 23.62" x 42.09" |
| Net Weight | 2074.6 lb (941 kg) |
| Color | Black |
| Certifications | UL 60950, CSA, cUL Listed, OSHPD |
| Operating Temp. Range | -5°C to 40°C (23°F to 104°F) |
| Operating Altitude | Up to 9,842 ft |
| Humidity Range | 0–95% RH (non-condensing) |
| Warranty | 1 Year Repair or Replace |
| GTIN | 731304295419 |
| Shipping Dimensions (HxWxL) | 84.76" x 47.99" x 40.00" |
| Shipping Weight | 2176.0 lb (987 kg) |
| Included Accessories | Installation Guide, Network Card |
