Description

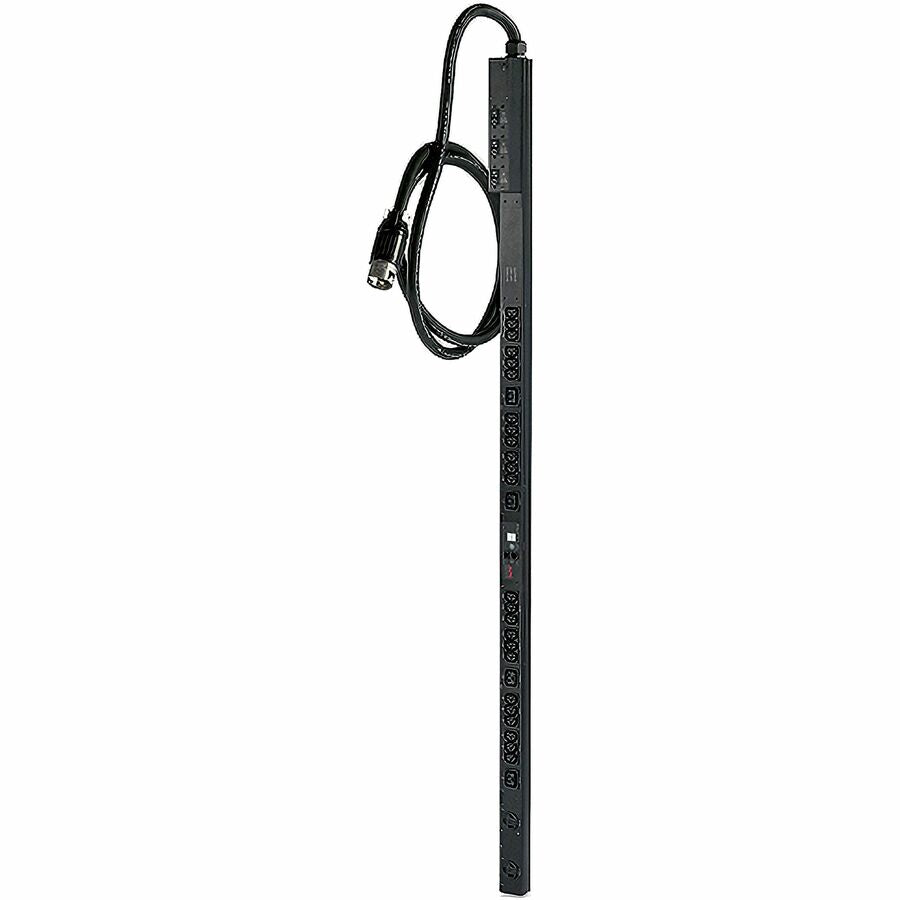

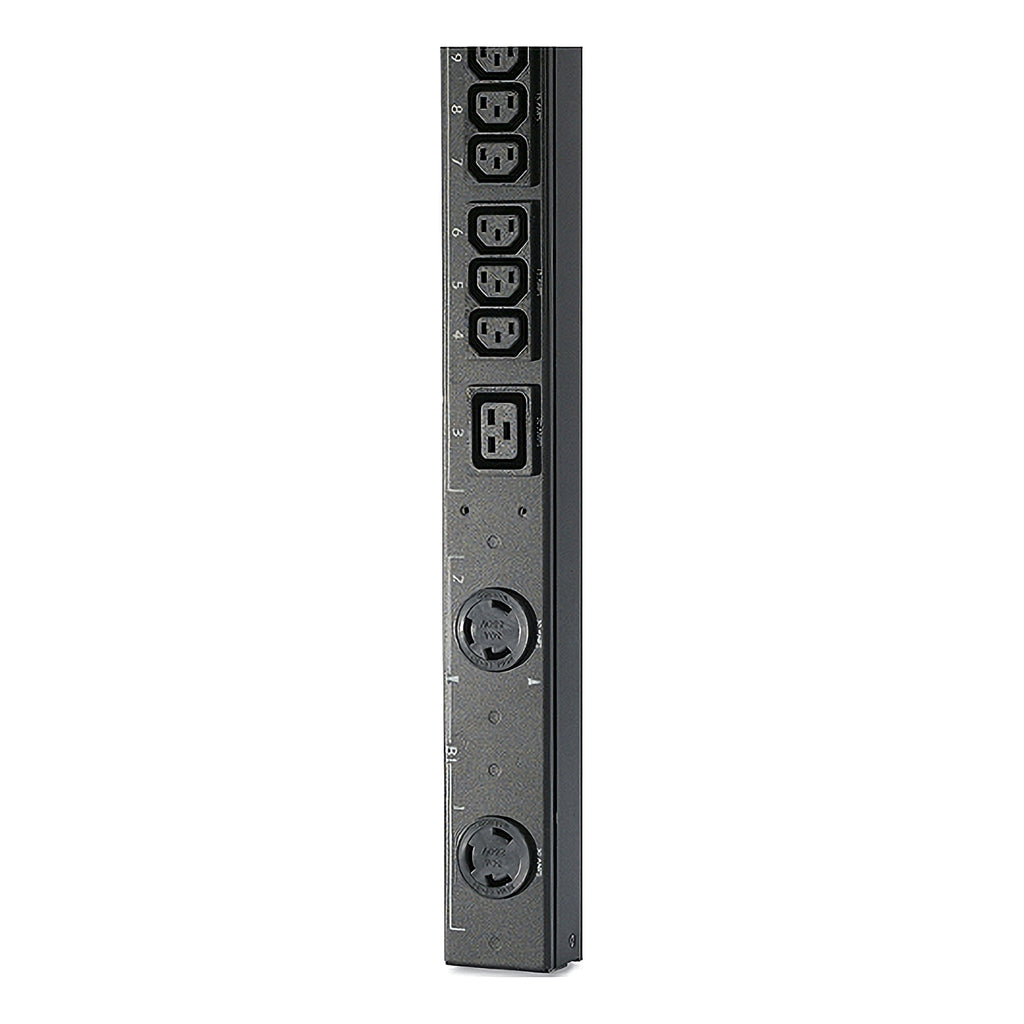

The APC by Schneider Electric AP7899B is a metered rack power distribution unit (PDU) designed for high-density IT environments. Engineered for ZeroU vertical mounting, it features 24 IEC C13, 4 IEC C19, and 2 NEMA L6-30R outlets for scalable and reliable power distribution. With support for up to 40A and 14.4kW at 208V, this three-phase PDU includes a 10 ft cord, real-time load monitoring, and user-configurable alarms to prevent overloads. It comes equipped with a toolless mounting kit, cord retention bracket, and comprehensive hardware for fast deployment in server rooms and data centers.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP7899B |
| Type | Metered Rack PDU |
| Mounting | Vertical (ZeroU) |
| Input Voltage | 208V, 3-Phase |
| Line Rated Current | 40A |
| Load Capacity | 14.4kW |
| Input Connector | CS8365 |
| Cord Length | 10 ft (3.05 m) |
| Outlet Types | 24x IEC C13, 4x IEC C19, 2x NEMA L6-30R |
| Output Voltage | 208V AC |
| Mounting Mode | Rack-mounted |
| Rack Units | 0U |
| Dimensions (H x W x D) | 70.00 x 2.20 x 3.74 in |
| Weight | 22.84 lb (10.36 kg) |
| Certifications | UL, CSA, FCC Part 15 Class A, cUL, METI Denan |
| Environment | 23–113°F, 5–95% RH, up to 10,000 ft altitude |
| Included Accessories | Mounting kit, cord retention bracket, RS-232 cable, documentation |
| Warranty | 2-Year Repair or Replace |
