Description

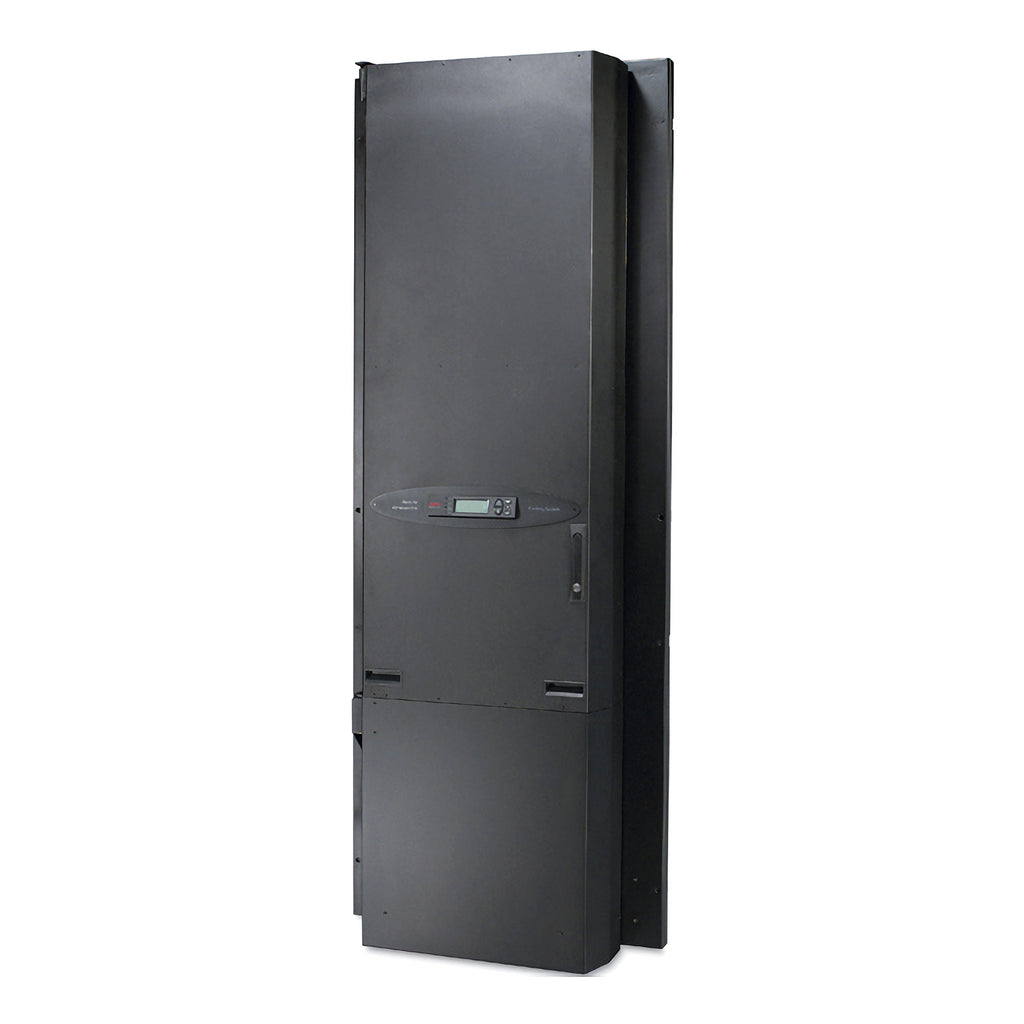

The APC ACF402 Rack Air Removal Unit is designed to manage high-density thermal loads in data center environments. Mounted at the rear of a NetShelter SX or VX enclosure, this unit captures and removes hot exhaust air, returning it to the plenum to eliminate hot spots. Its space-saving zero-U design, automatic fan speed adjustment, and onboard LCD control panel deliver efficient, intelligent airflow management. Built-in network connectivity allows remote monitoring and configuration. Ideal for dense server environments where precision cooling and uptime are critical.
| Category | Details |
|---|---|
| Product Type | Rack Air Removal Unit |
| Part Number | ACF402 |
| Application | Air distribution for high-density enclosures |
| Input Voltage | 100 V / 120 V / 200 V / 208 V / 230 V |
| Input Frequency | 50/60 Hz |
| Input Connection Types | IEC 60320 C14, NEMA 5-15P |
| Number of Cables | 2 |
| Air Flow Capacity | 1600 CFM (755.1 L/s) |
| Air Discharge Pattern | Upflow, Ducted |
| Mounting Mode | Not rack-mountable (rear-mount) |
| Mounting Preference | No preference |
| Control Panel | Multi-function LCD display |
| Remote Management | Integrated network management card |
| Certifications | UL, cUL, CE, VDE |
| Standards Compliance | EN 55022 Class A, EN 55024, FCC Part 15 A, etc. |
| Color | Black |
| Dimensions (H x W x D) | 75.51 x 29.02 x 10.00 in (191.8 x 73.7 x 25.4 cm) |
| Net Weight | 170.35 lb (77.27 kg) |
| Shipping Weight | 222.47 lb (100.91 kg) |
| Operating Temp. | 32–122 °F (0–50 °C) |
| Storage Temp. | 32–122 °F (0–50 °C) |
| Humidity (Operating/Storage) | 0–95% RH |
| Acoustic Noise Level | 79 dBA |
| Included Accessories | Documentation CD, Installation Guide, O&M Manual |
| Warranty | 1 Year (Parts Only) |
| Country of Origin | China (CN) |
