Description

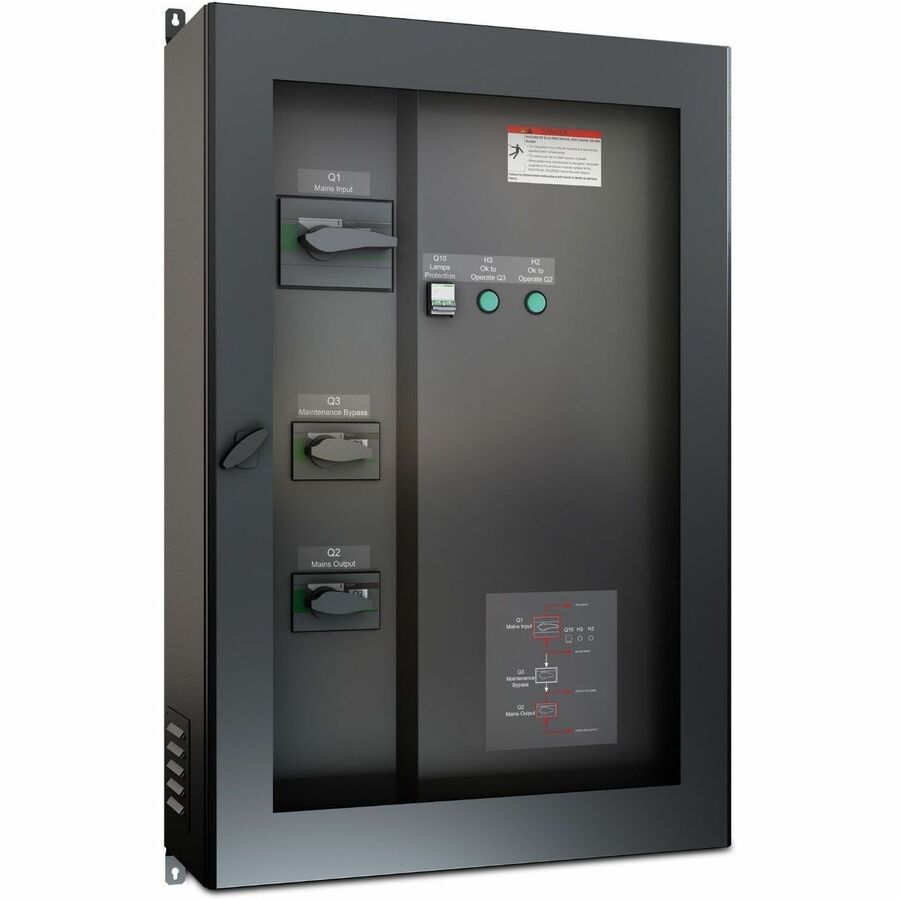

Ensure uninterrupted power availability and safe maintenance procedures with the APC Symmetra PX Wall-Mounted Maintenance Bypass Panel. Designed for compatibility with Symmetra PX 96kW and 160kW UPS systems, this value bypass panel enables seamless isolation of the UPS during service operations without disrupting the critical load. Built with conformance to IEC 62040-1-1 standards, it is ideal for mission-critical facilities requiring flexibility, safety, and reliability.
| Category | Details |
|---|---|
| Model | SYWMBP96K160H2 |
| Product Type | Wall-Mounted Maintenance Bypass Panel |
| Compatibility | Symmetra PX 96kW / 160kW |
| Input/Output Voltage | 400V |
| Mounting Mode | Wall-mounted |
| Color | Black |
| Height | 120 cm |
| Width | 80 cm |
| Depth | 30 cm |
| Weight | 90 kg |
| Standards | IEC 62040-1-1 |
| Certifications | C-Tick, CE, RCM |
| Operating Temp | 0 to 40°C |
| Storage Temp | -25 to 40°C |
| Operating Humidity | 0–95% (non-condensing) |
| Altitude (Operating) | Up to 10,000 ft |
| Altitude (Storage) | Up to 15,240 m |
| Package Dimensions (HxWxL) | 123 x 35 x 83 cm |
| Package Weight | 105 kg |
| Lead Time | Usually Ships within 3 Weeks |
| Warranty | 1 Year (Parts Only) |
